Key Features:
-

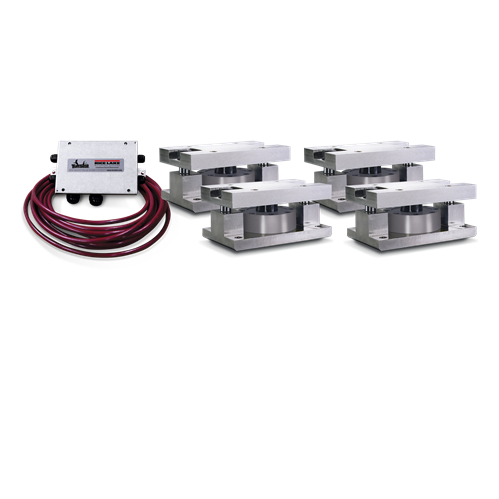

Complete kit with three or four RL2200 stainless steel mounting assemblies and RL2200SS stainless steel hermetically sealed compression disk load cells
-
Ideal for various applications:
- Tank, hopper, and vessel weighing
- Belt and roller conveyors
- Scale platforms and screw feeders
-
Self-centering design allows for side loads without sacrificing accuracy
-
Low-profile construction enables economical installation in space-constrained environments
-
No need for check rods or stabilizing hardware, simplifying setup and reducing costs
-
High-precision performance for demanding industrial applications
-
Hermetically sealed load cells (IP66/68-rated) provide superior environmental protection

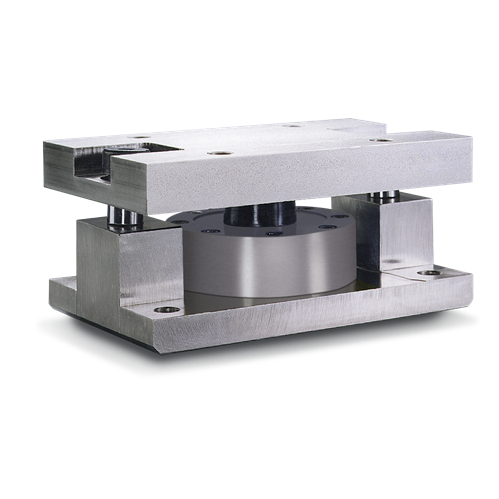

The RL2200SS Series Stainless Steel Weigh Module is designed to deliver high-precision weighing in tank, hopper, and conveyor applications. Its low-profile, self-centering design ensures consistent accuracy while eliminating the need for additional stabilizing hardware, making it a cost-effective solution for industrial weighing needs.
Built with stainless steel construction and hermetically sealed to IP66/68 standards, this weigh module is resistant to harsh environmental conditions, including moisture, dust, and corrosion. The rugged mounting assemblies make installation straightforward, and the high-performance load cells ensure precise weight measurement across various capacities.
With its compact and easy-to-install design, the RL2200SS weigh module is an ideal choice for industries requiring reliable, long-term weighing solutions.
Available Configurations
| Kit Type |
|
Number of Mounts |
Junction Box Type |
Compatible Load Cells |
| RL2200SS-3 |
|
3 Mounts |
JB4SS NEMA Type 4X |
RL2200SS |
| RL2200SS-4 |
|
4 Mounts |
JB4SS NEMA Type 4X |
RL2200SS |
Specifications
| Component |
|
Details |
| Full Scale Output |
|
4.0 mV/V (2.0 mV/V for 2,500 lb model) |
| Bridge Resistance |
|
350 ohm nominal |
| Material/Finish |
|
Stainless Steel |
| Temperature Compensation |
|
15 °F to 115 °F (9 °C to 46 °C) |
| Seal Type |
|
Hermetically Sealed, IP66/68 |
| Safe Overload Capacity |
|
150% Full Scale |
| Rated Excitation Voltage |
|
5 to 10 VDC (20 V max) |
| Nonlinearity |
|
0.05% Full Scale |
| Hysteresis |
|
0.03% Full Scale |
| Insulation Resistance |
|
5,000 megohm |
| Cable Length |
|
30 ft |
| Cable Color Code |
|
Red (+Excitation), Black (−Excitation), White (+Signal), Green (−Signal) |
| Warranty |
|
Two-Year Limited |

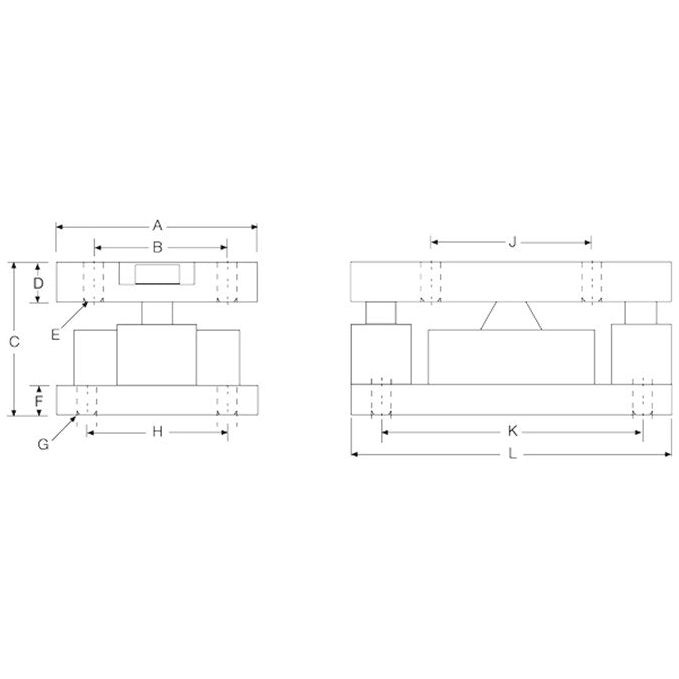

RL2200SS Series Dimensions
| Rated Capacity (lb) |
A (in) |
B (in) |
C (in) |
D (in) |
E (in) |
|
F (in) |
G (in) |
H (in) |
J (in) |
K (in) |
L (in) |
| 2,500 - 10,000 |
5.00 |
3.50 |
4.00 |
1.00 |
0.52 |
|
1.00 |
0.52 |
3.50 |
4.00 |
6.50 |
8.00 |
| 25,000 - 50,000 |
6.00 |
4.50 |
5.00 |
1.25 |
0.78 |
|
1.00 |
0.78 |
4.50 |
5.00 |
7.75 |
10.00 |
*Custom sizes available upon request
Optimize Your Weighing System with the RL2200SS Stainless Steel Weigh Module
The RL2200SS Series Stainless Steel Weigh Module is designed for high-precision, long-term reliability in tank, hopper, and conveyor weighing applications. With self-centering capabilities, stainless steel durability, and hermetically sealed load cells, this module provides exceptional performance in challenging industrial environments.
Contact our team for more information on how the RL2200SS Weigh Module can enhance your weighing operations!
