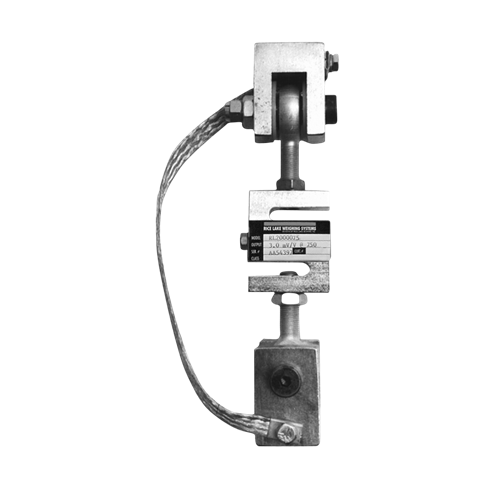

The ITCM SS Isolated Tension Cell Module is a high-precision stainless steel weighing solution designed for tank, hopper, and mechanical scale conversion applications. With its compact design, electrical isolation, and superior load alignment capabilities, it provides high accuracy and reliability in hostile environments.
This system incorporates clevis mounts and PTFE-lined rod-end ball joints, allowing it to reduce the assembly length by more than half compared to traditional tension mounts. Additionally, the load cell is fully isolated from stray currents, which prevents damage and extends its lifespan.
For businesses needing a corrosion-resistant, durable, and highly accurate tension weighing module, the ITCM SS is the ultimate solution.
| Component | Details | |
|---|---|---|
| Capacity per Module | 100 to 5,000 lb | |
| Load Cell Type | RL20000ST NTEP Certified S-Beam Load Cell | |
| Load Cell Protection | Stainless Steel, Welded-Seal | |
| Clevis Mounts | Yes, with Nylon Insulating Washers | |
| Rod-End Ball Joints | PTFE-Lined for Smooth Movement & Longevity | |
| Electrical Isolation | Yes, Fully Isolated from Stray Currents | |
| Grounding Strap | Yes, Provides Alternative Path to Ground | |
| Junction Box | JB4SS NEMA Type 4X Stainless Steel Signal Trim Box | |
| Load Cell Cable | 25 ft EL147HE SURVIVOR® Hostile Environment Cable | |
| Applications | Suspended Tanks, Hoppers, Mechanical Scale Conversions |

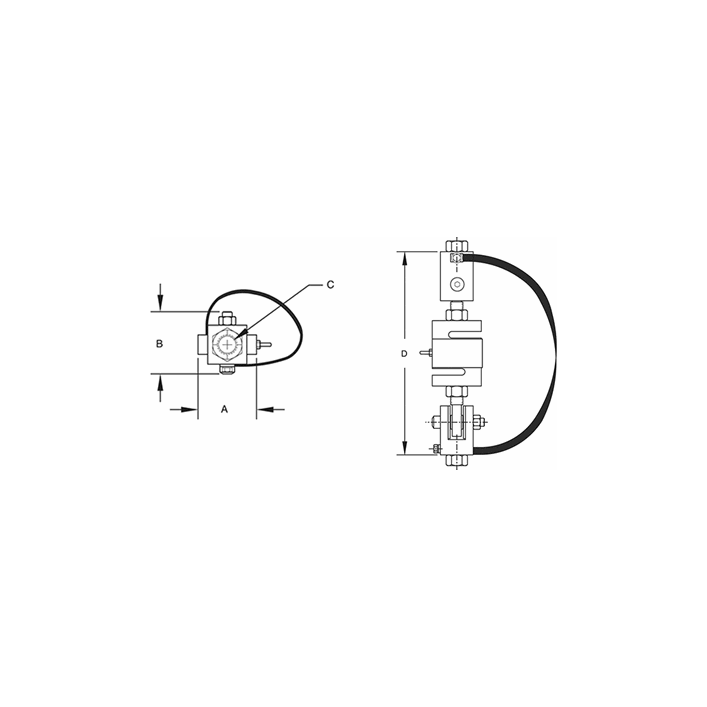

| Load Cell Capacity (lb) | A (in) | B (in) | C (Thread Size) | D (in) | Single Module Part # | 3-Module Kit Part # | 4-Module Kit Part # | |
|---|---|---|---|---|---|---|---|---|
| 100 | 2.00 | 1.81 | 3/8-16 NC | 7.00 (ref) | 46765 | 46735 | 46751 | |
| 100 | 2.00 | 1.81 | 1/2-13 NC | 7.00 (ref) | 46766 | 46736 | 46752 | |
| 250 | 2.00 | 1.81 | 3/8-16 NC | 7.00 (ref) | 46767 | 46737 | 46753 | |
| 250 | 2.00 | 1.81 | 1/2-13 NC | 7.00 (ref) | 46768 | 46738 | 46754 | |
| 500 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46769 | 46739 | 46755 | |
| 500 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46770 | 46740 | 46756 | |
| 750 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46771 | 46741 | 46757 | |
| 750 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46772 | 46742 | 46758 | |
| 1,000 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46773 | 46743 | 46759 | |
| 1,000 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46774 | 46744 | 46760 | |
| 2,500 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46775 | 46745 | 46761 | |
| 2,500 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46776 | 46746 | 46762 | |
| 3,000 | 3.37 | 3.37 | 3/4-10 NC | 10.75 (ref) | 46777 | 46747 | 46763 | |
| 5,000 | 3.37 | 3.37 | 3/4-10 NC | 12.00 (ref) | 46778 | 46748 | 46764 |
* Load Rating is per module
The ITCM SS Isolated Tension Cell Module is built for precision and durability in harsh environments. Its fully isolated stainless steel load cell, compact design, and PTFE-lined ball joints make it the best choice for suspended tank weighing and mechanical scale conversions.
Contact our team for more information on how the ITCM SS module can improve your weighing operations!
