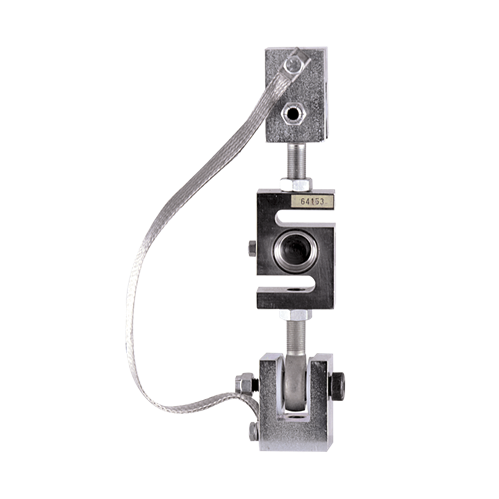

The ITCM HE Isolated Tension Cell Module is designed for high-performance tension weighing applications in hostile industrial environments. Its compact design, electrical isolation, and superior tension alignment capabilities make it an ideal choice for suspended tank and hopper weighing systems.
Unlike traditional tension cell mounts, the ITCM HE significantly reduces the overall assembly length, making it more compact and easier to install. The clevis mount and rod-end ball joints ensure proper tension alignment while isolating the load cell from stray currents, which are a major cause of load cell failure.
The grounding strap further enhances system safety by providing an alternative path for electrical discharge, preventing damage to the load cell. This feature makes the ITCM HE module a superior choice for mechanical scale conversions and tension weighing applications.
| Component | Details | |
|---|---|---|
| Capacity per Module | 500 to 5,000 lb | |
| Load Cell Type | RL20001HE NTEP Certified S-Beam Load Cell | |
| Load Cell Protection | Welded-Seal Stainless Steel | |
| Clevis Mounts | Yes, with Nylon Insulating Washers | |
| Rod-End Ball Joints | PTFE-Lined for Reduced Wear | |
| Electrical Isolation | Yes, Fully Isolated from Stray Currents | |
| Grounding Strap | Yes, Provides Alternative Path to Ground | |

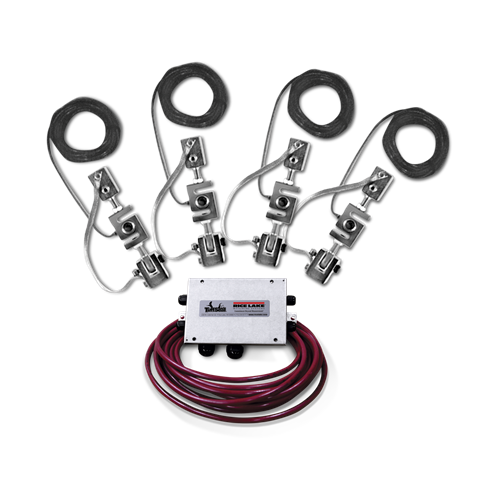

| Junction Box | JB4SS NEMA Type 4X Stainless Steel Signal Trim Box | |
| Load Cell Cable | 25 ft EL147HE SURVIVOR® Hostile Environment Cable | |
| Applications | Suspended Tanks, Hoppers, Mechanical Scale Conversions |
| Load Cell Capacity (lb) | A (in) | B (in) | C (Thread Size) | D (in) | Single Module Part # | 3-Module Kit Part # | 4-Module Kit Part # | |
|---|---|---|---|---|---|---|---|---|
| 500 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46599 | 46561 | 46580 | |
| 500 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46600 | 46562 | 46581 | |
| 500 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46601 | 46563 | 46582 | |
| 750 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46602 | 46564 | 46583 | |
| 750 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46603 | 46565 | 46584 | |
| 750 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46604 | 46566 | 46585 | |
| 1,000 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46605 | 46567 | 46586 | |
| 1,000 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46606 | 46568 | 46587 | |
| 1,000 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46607 | 46569 | 46588 | |
| 1,500 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46608 | 46570 | 46589 | |
| 1,500 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46609 | 46571 | 46590 | |
| 1,500 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46610 | 46572 | 46591 | |
| 2,000 | 2.68 | 2.68 | 1/2-13 NC | 9.50 (ref) | 46611 | 46573 | 46592 | |
| 2,000 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46612 | 46574 | 46593 | |
| 2,000 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46613 | 46575 | 46594 | |
| 2,500 | 2.68 | 2.68 | 5/8-11 NC | 9.50 (ref) | 46614 | 46576 | 46595 | |
| 2,500 | 2.68 | 2.68 | 3/4-10 NC | 9.50 (ref) | 46615 | 46577 | 46596 | |
| 3,000 | 3.37 | 3.37 | 3/4-10 NC | 10.00 (ref) | 46616 | 46578 | 46597 | |
| 5,000 | 3.37 | 3.37 | 3/4-10 NC | 12.62 (ref) | 46617 | 46579 | 46598 |
* Load Rating is per module
The ITCM HE Isolated Tension Cell Module provides precision tension weighing with superior electrical isolation. Featuring compact construction, PTFE-lined ball joints, and a clevis mount design, this module is ideal for suspended tank weighing and mechanical scale conversions.
