Key Features:
-

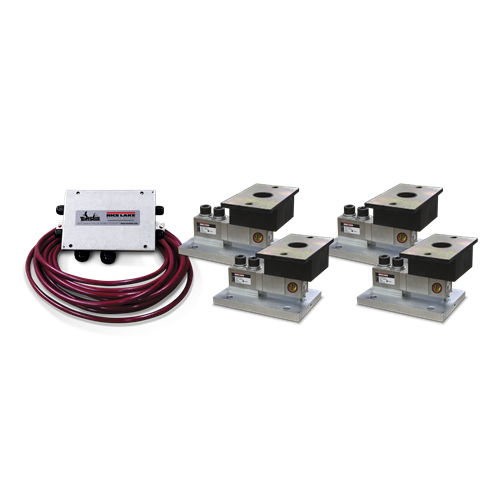

Complete kit includes:
- Three or four neoprene isolation/compression mounts with NTEP Certified load cells
-
Load cell options:
-
50 to 250 lb mild steel: 60040
-
500 lb mild steel: 65023-500-0107
-
1,000 to 2,500 lb mild steel: 65023A1K-5107
-
500 lb stainless steel: 65023-500-0113
-
1,000 to 2,500 lb stainless steel: 65023S1K-5113
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
-
Zinc-plated mild steel construction for strength and affordability
-
Capacity per module: 50 to 2,500 lb
-
Environmentally protected load cells for durability in various environments
-
Neoprene isolation/compression mounts for:
- Shock absorption
- Thermal expansion handling
- Minor misalignment correction
-
Overload stop for 500 lb modules to prevent damage
-
Ideal for:
- Small tank and hopper weighing
- Conveyor and in-motion weighing applications
- Small platform scales with minor shock loading

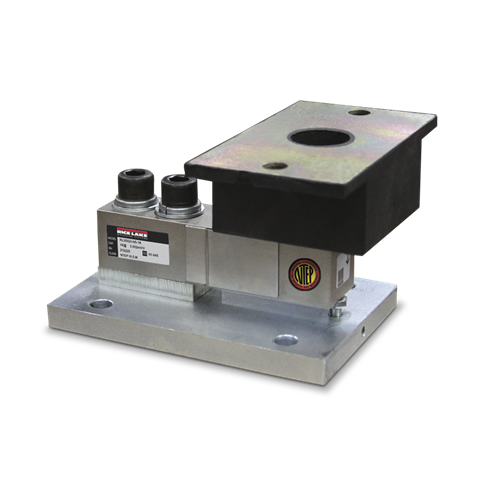

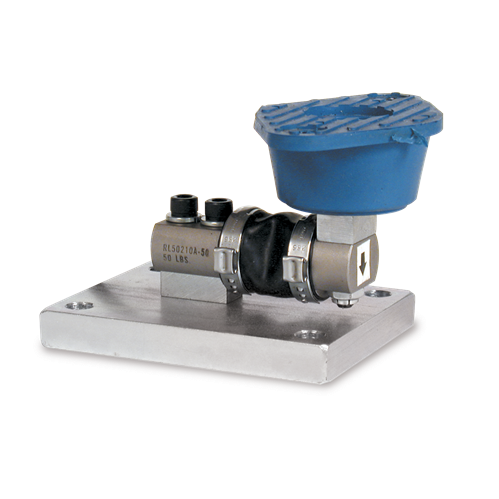

The 65059 Mini Tank Weighing Module from VPG® Sensortronics® is a cost-effective, durable solution for low-range weighing applications. Designed to accommodate minor misalignments and absorb shock loads, this module is ideal for small-scale industrial weighing needs.
Using environmentally protected load cells and high-strength neoprene compression mounts, this module provides precise and stable weight measurement while ensuring long-term reliability. The overload stop (for 500 lb models) adds extra durability, making it suitable for dynamic weighing applications such as conveyors and small hoppers.
For businesses needing a compact, accurate, and easy-to-install weighing solution, the 65059 Mini Tank Weighing Module delivers outstanding performance.
Specifications
| Component |
|
Details |
| Capacity per Module |
|
50 to 2,500 lb |
| Load Cell Type |
|
NTEP Certified Sensortronics Load Cells |
| Load Cell Protection |
|
Environmentally Sealed |
| Construction |
|
Zinc-Plated Mild Steel |
| Isolation Mounts |
|
Neoprene Compression for Shock Absorption & Thermal Expansion |
| Overload Protection |
|
Yes, for 500 lb Models |
| Junction Box |
|
JB4SS NEMA Type 4X Stainless Steel Signal Trim Box |
| Load Cell Cable |
|
25 ft EL147HE SURVIVOR® Hostile Environment Cable |
| Applications |
|
Small Tanks, Hoppers, Conveyor Weighing, Small Platform Scales |

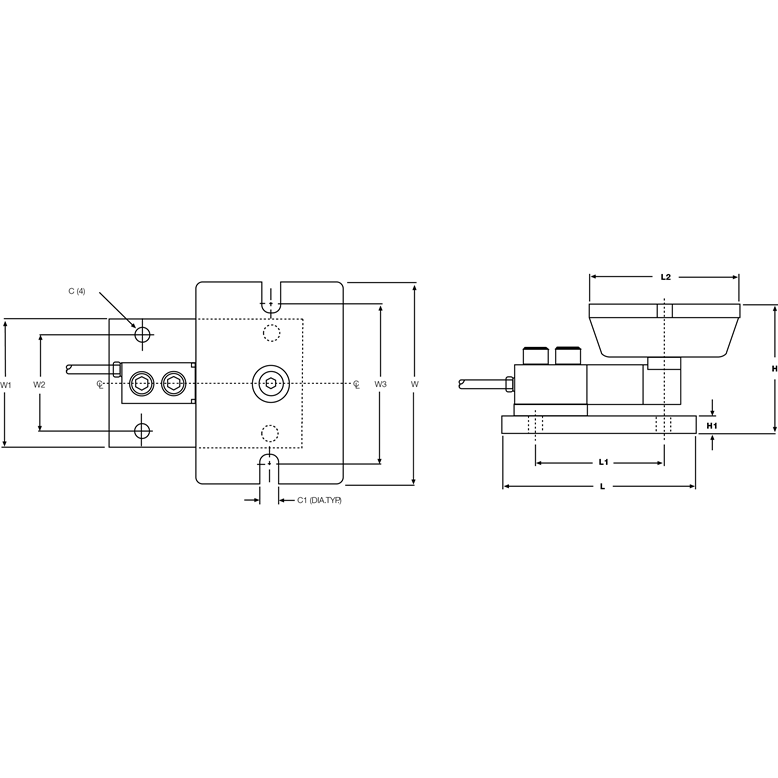

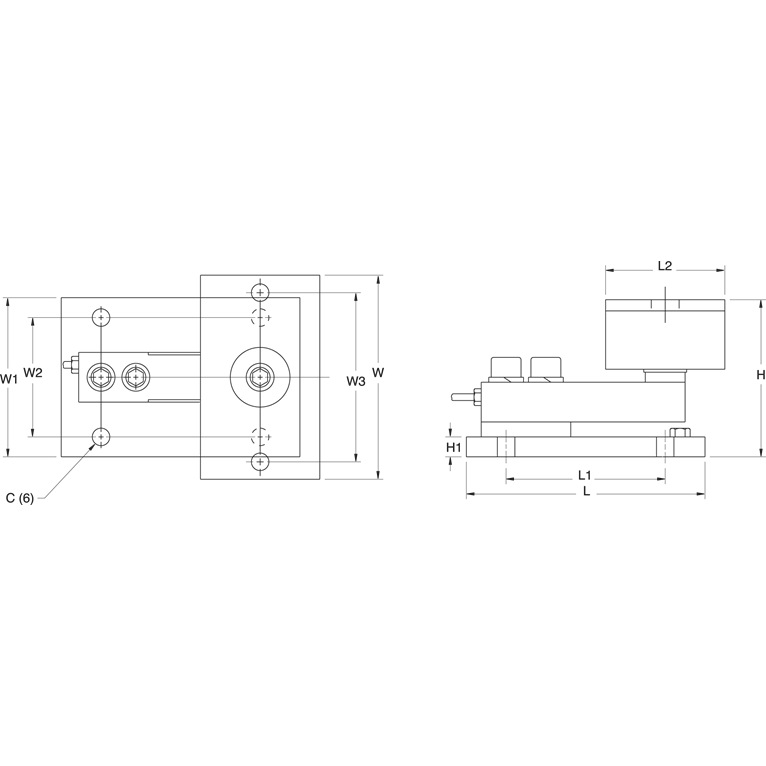

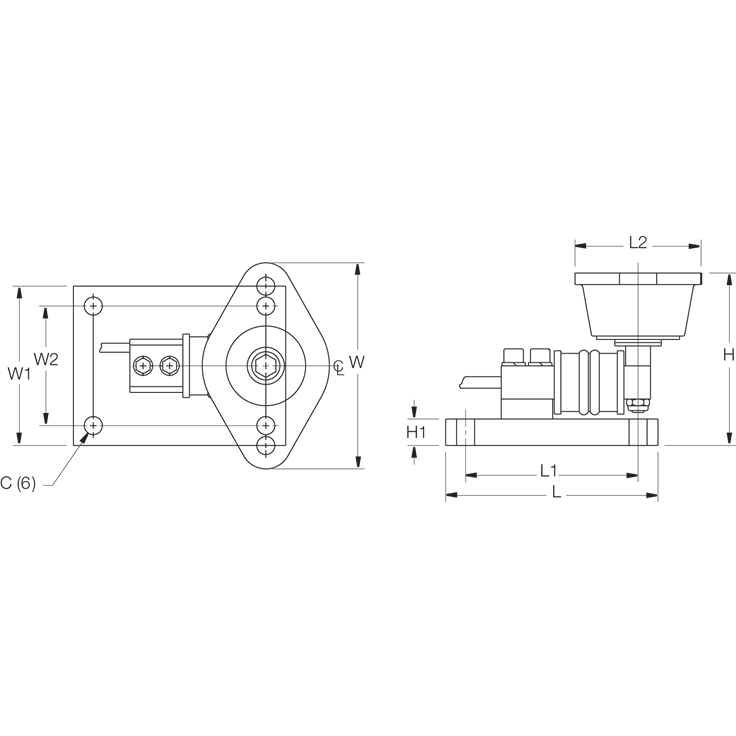

65059 Mini Tank Weighing Module Dimensions
| Rated Capacity (lb) |
C (in) |
C1 (in) |
H (in) |
H1 (in) |
L (in) |
L1 (in) |
L2 (in) |
W (in) |
W1 (in) |
|
W2 (in) |
W3 (in) |
| 50 to 250 |
0.34 |
- |
3.13 |
0.50 |
4.00 |
3.25 |
2.38 |
3.88 |
3.00 |
|
2.25 |
- |
| 500 |
0.44 |
0.56 |
3.88 |
0.50 |
6.00 |
4.00 |
3.38 |
5.50 |
4.00 |
|
3.00 |
4.13 |
| 1,000 |
0.44 |
- |
4.00 |
0.50 |
6.00 |
4.00 |
3.00 |
5.13 |
4.00 |
|
3.00 |
4.13 |
| 2,000 to 2,500 |
0.44 |
0.56 |
4.00 |
0.50 |
6.00 |
4.00 |
4.62 |
6.25 |
4.00 |
|
3.00 |
5.00 |
*Custom sizes available upon request
Optimize Your Low-Range Weighing System with the 65059 Mini Tank Weighing Module
The 65059 Mini Tank Weighing Module is designed for reliable performance in small-scale industrial weighing applications. With environmentally protected load cells, neoprene compression mounts, and a durable mild steel frame, it is an excellent choice for small tanks, hoppers, and conveyor weighing systems.
Contact our team for more information on how the 65059 Mini Tank Weighing Module can improve your weighing process!
