Key Highlights
-
Complete Mounting Kit: Includes PLSB-25K load cell, bearing plate, twist lock or stacking cone assembly, intermediate plate (twist lock only), and hardware.
-
High-Capacity Load Cell: 25,000 lb capacity per module ensures reliable performance in heavy-duty applications.
-
Versatile Mounting Options: Available with Twist Lock or Stacking Cone assemblies for corner casting compatibility.
-
Durable Alloy Steel Construction: Rigid, low-profile double-ended shear beam design for industrial strength.
-
Long Cable Lengths: Comes standard with 50 ft cable, with 20 ft option also available.
-
Environmentally Sealed: IP66-rated protection for dependable performance in harsh environments.

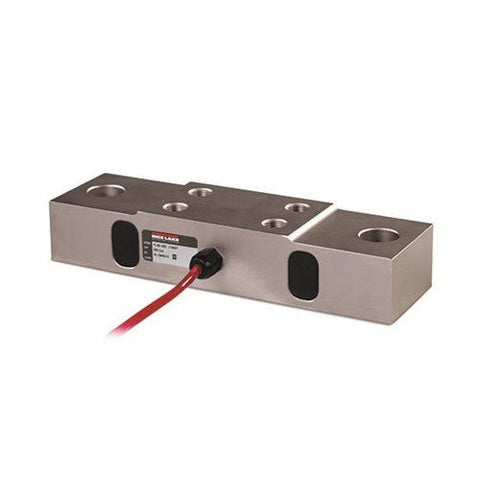

The PLSB-25K Stacking Cone and Twist Lock Mount Assembly is a rugged weighing solution engineered for intermodal container and corner casting applications. Built around the PLSB-25K double-ended shear beam load cell, this assembly ensures accurate and stable performance in demanding environments.
Each kit includes everything you need for installation—load cell, bearing plate, twist lock or stacking cone upper assembly, intermediate plate (for twist lock), and hardware making setup efficient and secure.
The 25,000 lb capacity per module makes it ideal for containerized weighing, industrial transport, and equipment monitoring. With alloy steel construction, through-hole mounting, and rigid securement, the assembly delivers both strength and durability. Its environmentally sealed IP66 rating ensures reliable operation in outdoor or moisture-prone conditions, while cable lengths up to 50 ft provide installation flexibility.
Whether using the stacking cone for stability or the twist lock for secure fastening, this system provides a reliable interface between load-bearing equipment and your weighing application.
Specifications
| Feature |
Specification |
| Capacity |
25,000 lb per module |
| Load Cell Type |
Double-ended shear beam |
| Output Resistance |
722 ohm (nominal) |
| Input Resistance |
700 ohm (nominal) |
| Material/Finish |
Alloy steel |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Rated Excitation |
15 VDC (5–10 V recommended) |
| Non-linearity |
±0.25% full scale |
| Insulation Resistance |
2,000 megohm at 50 VDC |
| Seal Type |
Environmentally sealed, IP66 |
| Cable Length |
20 ft (PN 179827) or 50 ft (PN 191898) |
| Warranty |
One-year limited |
Wire Color Code
| Wire |
Function |
| Green |
+Signal |
| White |
–Signal |
| Black |
Excitation |
| Drain Wire |
Shield |
Upgrade your container or corner casting weighing system with the PLSB-25K Stacking Cone and Twist Lock Mount Assembly. Built with alloy steel strength, a 25,000 lb capacity per module, and rugged environmental sealing, this kit is ready for the toughest industrial applications.
Request a quote today and streamline your container weighing operations.
