Highlights
-
Seamless Integration: Fully compatible with OnTrak® Enterprise data management software.
-
Motion Detection: Monitors activity around truck scales and facilities automatically.
-
Remote Control: Pan and tilt camera horizontally and vertically via remote access.
-
Superior Low-Light Performance: Supreme Night Visibility (SNV) and built-in IR illuminators with Smart IR II technology.
-
Extended Night Range: Up to 328 ft (100 m) night illumination.
-
Rugged Weatherproof Design: IP66-rated housing ensures protection against dust, rain, and outdoor conditions.
-
Power Over Ethernet: IEEE 802.3af PoE support for simplified installation and redundancy.
-
Global Approvals: CE, BIS, and FCC Class A certified for compliance and reliability.

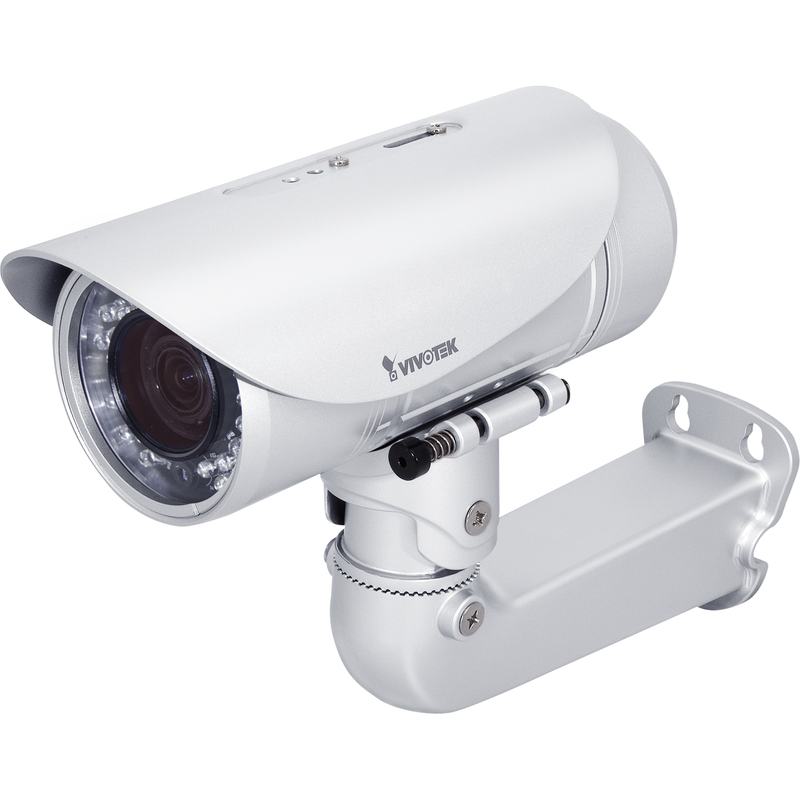

The Image Capture/Remote Monitoring Network Camera is designed to provide reliable, high-quality monitoring for truck scale operations and industrial environments. Fully compatible with OnTrak® Enterprise, this camera enhances remote visibility, security, and recordkeeping for scale transactions.
Featuring motion detection, remote pan/tilt control, and supreme night visibility (SNV), the camera delivers exceptional performance both day and night. Its Smart IR II illuminators provide powerful coverage up to 328 feet (100 meters), ensuring clear images even in complete darkness.
With a rugged IP66-rated housing, the camera is built for outdoor reliability, protecting against dust, rain, and harsh environments. Power over Ethernet (PoE) simplifies installation, reducing cabling requirements while maintaining efficient performance.
Ideal for unattended truck scale sites, warehouses, and other high-traffic industrial areas, this network camera ensures operators have accurate, real-time monitoring capabilities to improve security and streamline operations.
Specifications
| Feature |
Specification |
| Compatibility |
OnTrak® Enterprise |
| Detection |
Motion detection |
| Camera Control |
Remote horizontal/vertical pan and tilt |
| Read Range |
10–82 ft (3–25 m) |
| Night Illumination |
164–328 ft (50–100 m) with Smart IR II |
| Interface |
10 Base-T/100 Base TX Ethernet (RJ-45) |
| Operating System Support |
Microsoft Windows 10/8/7 |
| Browser Support |
Chrome 58+, Internet Explorer 10/11 |
| Power Input |
IEEE 802.3af PoE Class 0 (power redundancy) |
| Power Consumption |
Max. 10.77 W (IR on) / 7.77 W (IR off) |
| Dimensions |
5.75 × 11.34 in (146 × 288 mm) |
| Weight |
3.5 lb (1.6 kg) with bracket |
| Temperature (Operating) |
IR off: -40 °F to 140 °F (-40 °C to 60 °C); IR on: -40 °F to 122 °F (-40 °C to 50 °C) |
| Housing Rating |
IP66 |
| Certifications |
CE, BIS, FCC Class A |
Improve security and transaction monitoring with Rice Lake’s Image Capture/Remote Monitoring Network Camera.
Contact us today for pricing, integration details, and installation options.
