Key Highlights
-
Designed to meet rigorous counting demands with high internal resolution up to 1/750,000.
-
Supplied as a single-unit scale with a sealed, removable display for flexible placement.
-
Features Automatic Counting Accuracy Improvement (ACAI) for enhanced precision over time.
-
Includes audible weighing assist (AWA) beeping function for quick target confirmation.
-
Equipped with Hi/OK/Lo display function to simplify quality control checks.
-
Supports accumulation and full-digital calibration for efficient data management.
-
Offers optional rechargeable battery and RS-232C interface for extended connectivity.

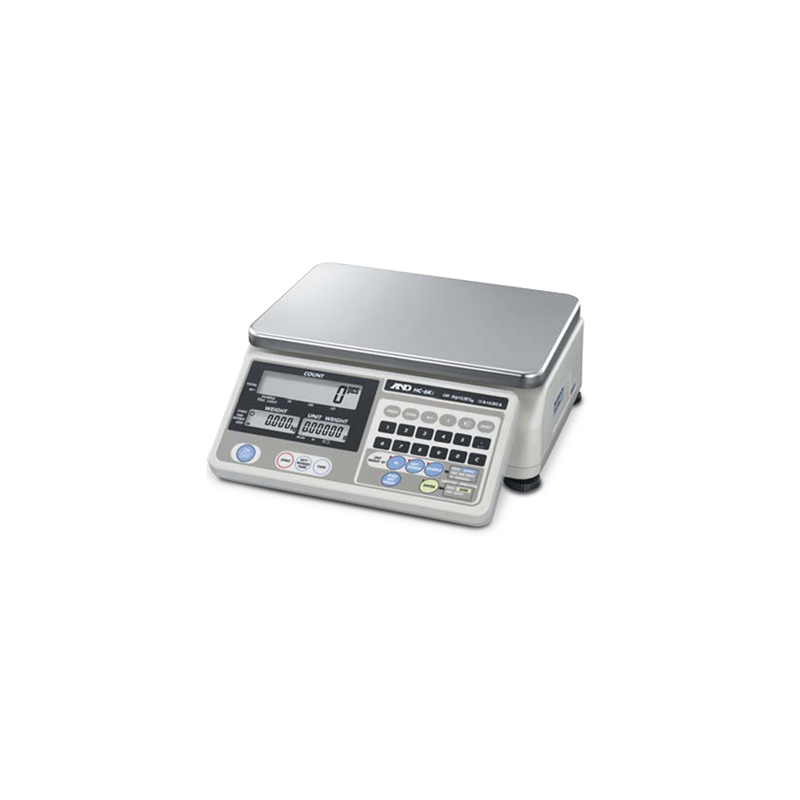

The A&D HC-i Series Counting Scale is engineered to provide reliable, high-resolution counting across a wide range of item weights. Its exceptional internal resolution—ranging from 1/600,000 to 1/750,000 depending on the model—ensures that even lightweight components are counted with minimal deviation. The Automatic Counting Accuracy Improvement (ACAI) function continuously refines unit weight calculations, making the scale particularly effective for repetitive counting tasks where consistency is critical.
Beyond accuracy, this scale enhances productivity through intuitive user aids. The Audible Weighing Assist (AWA) emits a beeping tone that accelerates the counting process by signaling when the desired quantity is reached, reducing operator fatigue and time per count. The Hi/OK/Lo display provides at-a-glance pass/fail feedback, ideal for sorting or verifying batch quantities. With an accumulation function, operators can tally multiple counts across sessions, while full-digital calibration simplifies routine maintenance. The optional RS-232C interface allows seamless integration with bar code printers or data systems, making this scale a versatile tool for inventory management, parts handling, and quality assurance environments.
Specifications
| Specification | Details |
|---|---|
| Power Source | AC adapter or optional rechargeable SLA battery |
| Internal Resolution (HC-3Ki, 6Ki, 30Ki) | 1/600,000 |
| Internal Resolution (HC-15Ki) | 1/750,000 |
| Display | Seven-segment LCD; pcs: 18.6 mm, unit weight: 11.4 mm |
| Operating Time (without interface) | Approx. 80 hours |
| Number of Scale Channels | 1 local |
| Memory Items | 99 weight registers |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Dimensions (L × W × H) | 12.40 × 13.00 × 5.00 in (315 × 331 × 126 mm) |
| Platter Size | 11.8 × 8.3 in (300 × 211 mm) |
| Warranty | Two-year limited |
Simplify your counting operations with the A&D HC-i Series. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
