Key Highlights
-
All-in-One System: Includes dimensioner, floor scale (5×5 ft, 5,000 lb), kiosk, indicator, and accessories
-
Legal for Trade: Accurate measurements for regulatory compliance
-
Fast Operation: Captures dimensions and weight in under 2 seconds
-
Pallet Tare Mode: Exclude pallet dimensions (non-Legal for Trade mode)
-
Plug & Play Setup: Install and operate in less than one day
-
Network-Ready: Simple API and HTTP/XML integration with ERP/WMS systems
-
Optional Add-ons: Camera, printer, barcode scanner, access ramps, 5th sensor for black wrap
-
Rugged Design: Built for pallet jack or forklift access in industrial settings
-
Web Interface: Real-time data capture, storage, and status checking

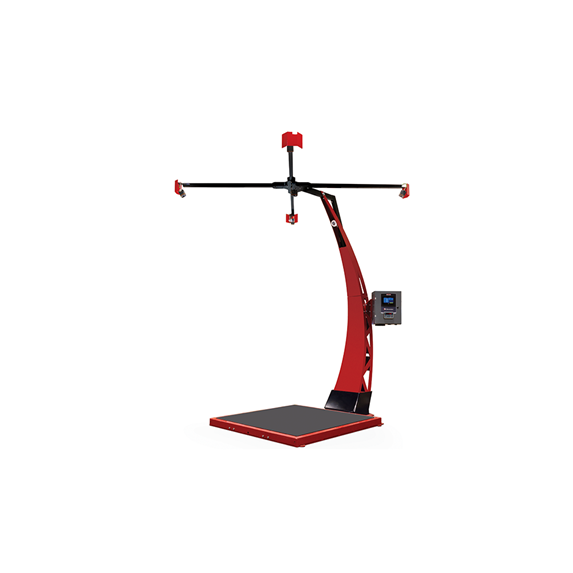

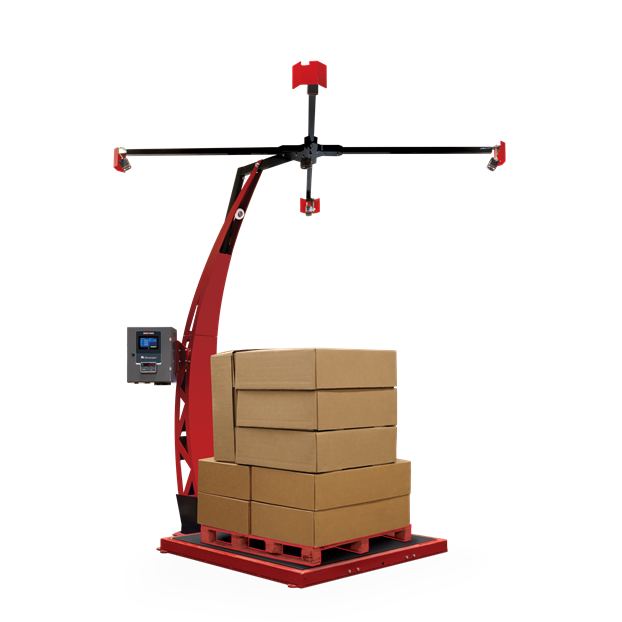

The iDimension® PWD by Rice Lake is an advanced pallet dimensioning and weighing system, delivering unmatched efficiency and accuracy for freight operations. Combining a Legal for Trade floor scale with a high-resolution camera-based dimensioner, the system captures complete pallet data in under 2 seconds, significantly reducing costly carrier disputes and invoice adjustments.
With a fully integrated 5×5 ft floor scale (5,000 lb capacity), this turnkey system is designed for warehouse, logistics, and shipping operations that demand speed and accuracy. The Pallet Tare Mode lets you exclude the pallet itself from measurements—ideal for internal processing (note: not Legal for Trade). Whether loading via forklift or side-loading with pallet jacks (with optional ramps), the PWD provides hassle-free operation and seamless integration into your workflow.
The iDimension App, HTTP/XML API, and optional iDimension SS platform make data handling simple—transferring weight, dimensions, and captured images to ERP, WMS, or claims platforms in real time. The optional 5th sensor ensures accuracy for black stretch-wrapped freight, while the rugged components ensure reliable long-term performance in harsh dock environments.
Specifications
| Feature |
Details |
| Min Measurement (L × W × H) |
6 × 6 × 6 in (152 × 152 × 152 mm) |
| Max Measurement (L × W × H) |
72 × 72 × 72 in (1,829 × 1,829 × 1,829 mm) |
| Legal for Trade |
Yes |
| Scale Capacity |
5,000 lb (2,268 kg) |
| Measurement Time |
≤ 2 seconds |
| Increment |
0.5 in (1 cm) |
| Min Pallet Height |
4.25 in (108 mm) |
| Performance |
Captures most surfaces; variances on transparent/glossy items |
| Lighting Conditions |
Operates in all indoor environments |
| Power Requirements |
110–240 VAC (25 ft cable included) |
| Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Humidity |
0 to 90%, non-condensing |
| Warranty |
Two-year limited (extended available) |
| Certifications |
NTEP, OIML R129, MID, FCC, CE |
Packaging Dimensions
| Crate |
Size (inches) |
Size (cm) |
Weight |
| Crate 1 |
101 × 80 × 30 in |
257 × 203 × 76 cm |
1,690 lb |
| Crate 2 |
83 × 68 × 35 in |
210 × 173 × 90 cm |
900 lb |

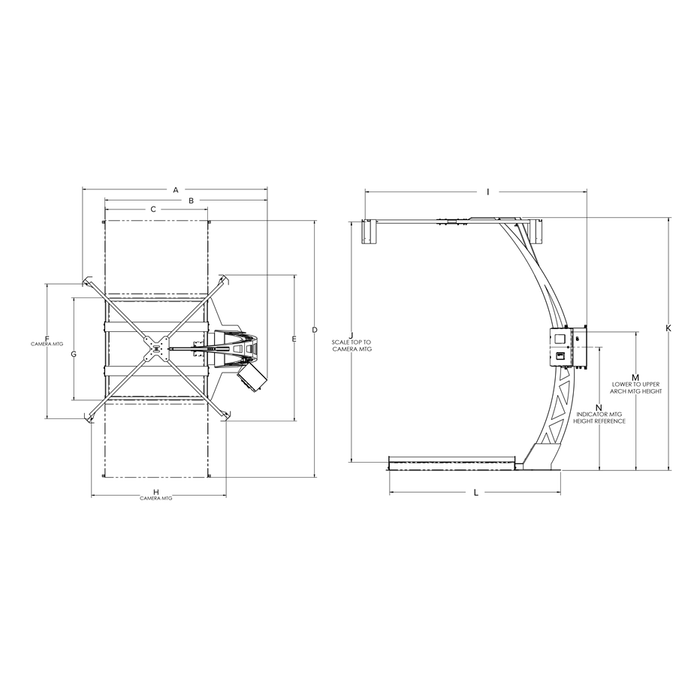

System Dimensions
| Dimension |
Size (inches) |
Size (mm) |
| A |
117.34 |
2,980 |
| B |
103.14 |
2,620 |
| C |
65.00 |
1,651 |
| D |
163.00 |
4,140 |
| E |
92.70 |
2,355 |
| F |
85.56 |
2,173 |
| G |
65.00 |
1,651 |
| H |
85.56 |
2,173 |
| I |
115.66 |
2,938 |
| J |
125.41 |
3,185 |
| K |
131.86 |
3,349 |
| L |
89.18 |
2,265 |
| M |
72.22 |
1,834 |
| N |
64.25 |
1,632 |
What's Included
-
iDimension® PWD dimensioner
-
5×5 ft, 5,000 lb integrated floor scale
-
Kiosk station with panel-mounted indicator
-
Calibration object and accuracy test box
-
Assembly and operator manuals
Optional Add-Ons
-
Second high-resolution camera
-
Barcode scanner and/or label printer
-
Access ramps for pallet jack entry
-
Overhead 5th sensor (for black shrink wrap detection)
-
iDimension SS software for extended integration
Simplify freight processing, reduce chargebacks, and eliminate guesswork with the iDimension® PWD.
This powerful all-in-one solution delivers Legal for Trade measurements, fast operation, and seamless ERP/WMS integration—perfect for high-volume shipping and logistics environments.
Contact us today for a quote or demo tailored to your operation.
