Rice Lake Ion BM Series, A&D Weighing Micro/Semi-Micro Balance

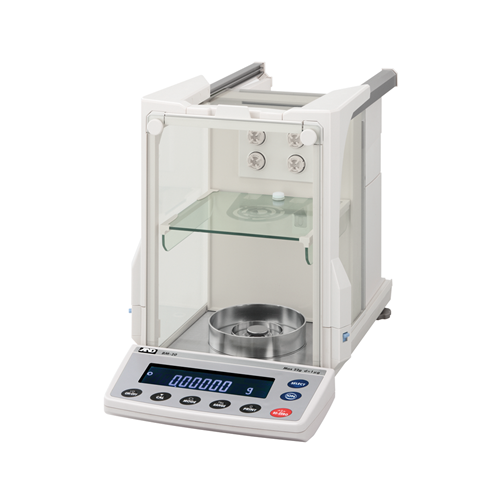

Ion BM Series, A&D Weighing Micro/Semi-Micro Balance

$11,850.00 - $23,430.00
$23,430.00
$11,850.00 - $23,430.00
$23,430.00
Backed by SellEton's 5 Year Limited Warranty — see terms

Downloads

Product Catalog
User Manual
A&D Weighing Ion BM Series Instruction Manual A&D Weighing Ion BM Series Addendum

Key Highlights

  • Built-in fanless static eliminator for reliable weighing

  • Anti-static glass chamber minimizes electrostatic interference

  • Spacious weighing chamber with easy access

  • Motorized built-in calibration weight ensures accuracy

  • One-touch environmental filters for fast adjustments

  • Full GLP/LIM/ISO compliance with time/date stamped data

  • RS-232C & WinCT® software included for connectivity

  • Ships with AD-1688 Weighing Data Logger

  • Equipped with underweigh hook for advanced applications

  • Backed by SellEton's 5-Year Warranty


The A&D Ion BM Series Micro and Semi-Micro Balances are designed for ultra-precise weighing in laboratories where static and environmental factors can impact results.

With a built-in fanless static eliminator and anti-static glass chamber, the BM Series minimizes errors caused by electrostatic charges. A motorized internal calibration system provides hassle-free accuracy, while the included AD-1688 Data Logger ensures compliance with GLP/LIM/ISO standards.

Whether for pharmaceutical, research, or advanced material testing, the BM Series delivers stable, high-resolution performance with capacities up to 250 g and readability as fine as 1 µg.


Technical Specifications

Feature Specification
Weighing Units Carat, pennyweight, troy ounce (additional in manual)
Operating Modes Weighing, percentage, counting
Power 120/240 V AC adapter
Stabilization Time BM-20: ~10 sec / BM-22: 8–10 sec / BM-252: ~8 sec
Calibration Weight BM-20, BM-22: 20 g / BM-252: 200 g
Operating Temp. 41 °F to 104 °F (5 °C to 40 °C)
Humidity ≤ 85% RH, non-condensing
Estimated Weight 22 lb (10 kg), ships via motor freight
Warranty 5-Year SellEton Warranty
Return Policy A&D Weighing standard (restock fee may apply)


Available Models

Model Capacity Readability Repeatability Linearity Pan Size Dimensions (W × D × H) Part #
BM-20 22 g 0.000001 g 0.0025 mg ±0.010 mg Ø 0.98 in (25 mm) 10.2 × 18.3 × 12.8 in (259 × 466 × 326 mm) 150762
BM-22 22 g / 5.1 g 0.00001 g / 0.000001 g 0.004 mg / 0.01 mg ±0.010 mg / 0.02 mg Ø 0.98 in (25 mm) 10.2 × 18.3 × 12.8 in (259 × 466 × 326 mm) 150763
BM-252 250 g 0.00001 g 0.03 mg ±0.010 mg Ø 0.98 in (25 mm) 10.2 × 18.3 × 12.8 in (259 × 466 × 326 mm) 150765


Why Choose the Ion BM Series?

  • Electrostatic issues eliminated with integrated fanless ionizer

  • Ultimate precision with 1 µg readability on select models

  • Data compliance made easy with included AD-1688 Data Logger

  • Built for demanding labs requiring accuracy, reliability, and GLP/ISO traceability
