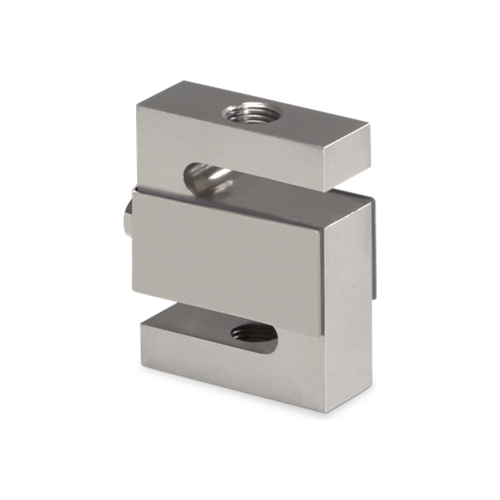

Upgrade your weighing applications with the Rice Lake RLETS Load Cell, designed for precision, durability, and seamless integration. Order today to enhance your industrial weighing system.
| Specification | Details | |
|---|---|---|
| Full Scale Output | 3.0 mV/V ±0.25% | |
| Bridge Resistance | 350 ohm, nominal | |
| Material/Finish | Alloy steel | |
| Operating Temperature | 0 °F to 150 °F (-18 °C to 65 °C) | |
| Safe Overload | 150% full scale | |
| Rated Excitation | 5 to 10 VAC/DC (15V max) | |
| Combined Error | 0.02% full scale | |
| Insulation Resistance | 5,000 megohm | |
| Seal Type | Environmentally sealed, IP67 | |
| Cable Length | 6 m (Polyurethane jacket) | |
| Warranty | Two-year limited | |
| Approvals | OIML R60/1991-GB-95-09, cFMus |

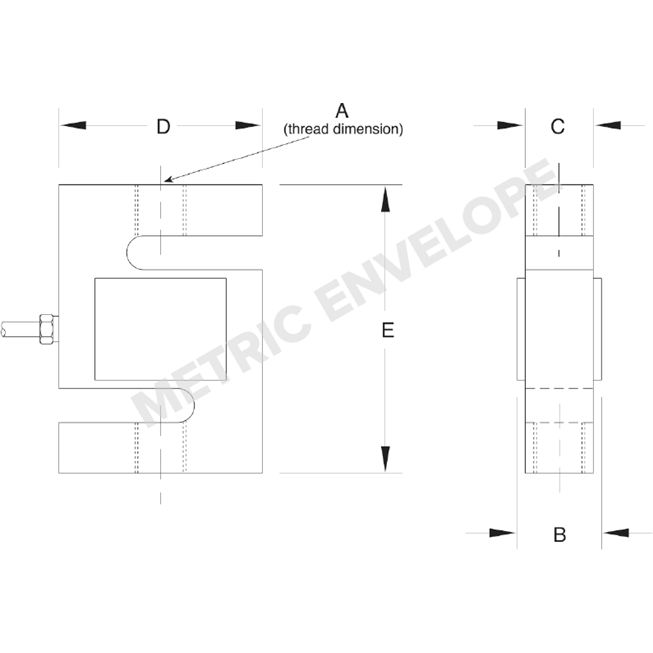

| Capacity (kg) | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| 250 to 1,000 | M12 × 1.75-6H | 25.4 | 19.1 | 50.8 | 76.0 | |
| 2,500 | M20 × 1.5-6H | 31.8 | 25.4 | 76.2 | 108.0 |
