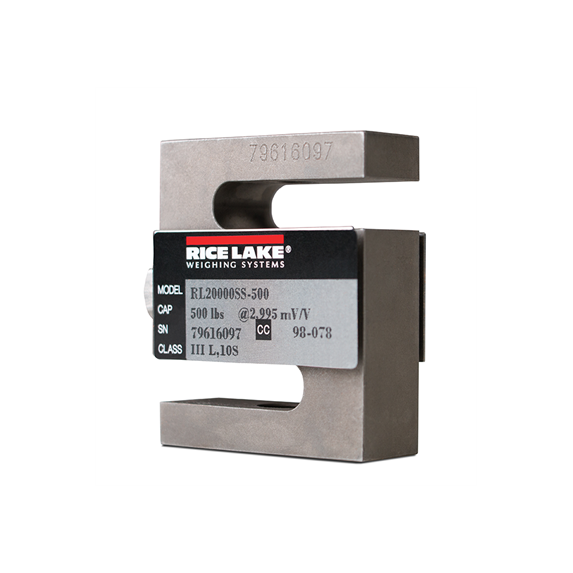

Rice Lake RL20000SS Stainless Steel, S-Beam Load Cell

Rice Lake RL20000SS Stainless Steel, S-Beam Load Cell

$312.00 - $948.00
$312.00
$312.00 - $948.00
$312.00

Key Features:

  • High-Quality Stainless Steel Construction: Built from stainless steel, providing superior corrosion resistance, durability, and strength, ideal for dry and corrosive environments.
  • Versatile S-Beam Design: Ideal for suspended applications, force measurement, mechanical scale conversions, and industrial weighing.
  • Wide Capacity Range: Available from 50 lb to 20,000 lb, making it suitable for various commercial and industrial applications.
  • Environmental Protection: IP67-rated environmental sealing ensures protection against dust, moisture, and harsh operating conditions.
  • High-Precision Weighing Performance:
    • Full-scale output: 3.0 mV/V (±0.008)
    • Combined error: 0.03% full scale
    • Insulation resistance: 5,000 megohm
  • Safe Overload and High Durability:
    • Can withstand 150% full-scale overload, ensuring high reliability under stress.
  • Long Cable for Easy Installation: Comes with a 20 ft cable, providing secure connectivity and installation flexibility.
  • Certified for Compliance:
    • NTEP Certified (Approval No. 98-078) for legal trade applications
    • cFMus approved, meeting safety and performance standards
  • Reliable Warranty: Backed by a two-year limited warranty, ensuring confidence in long-term use.

Enhance your weighing applications with the Rice Lake RL20000SS Load Cell, built for precision, durability, and seamless integration. Order today to optimize your weighing efficiency.

Specifications:

Specification   Details
Full Scale Output
3.0 mV/V (±0.008)
Input Resistance
390 (±15) ohm
Output Resistance
350 (±3.5) ohm
Material/Finish
Stainless steel
Operating Temperature
0 °F to 150 °F (-18 °C to 65 °C)
Compensated Temperature
14 °F to 104 °F (-10 °C to 40 °C)
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V max)
Combined Error
0.03% full scale
Insulation Resistance
5,000 megohm
Seal Type
Environmentally sealed, IP67
Cable Length
20 ft cable
Warranty
Two-year limited
Approvals
NTEP 98-078, cFMus

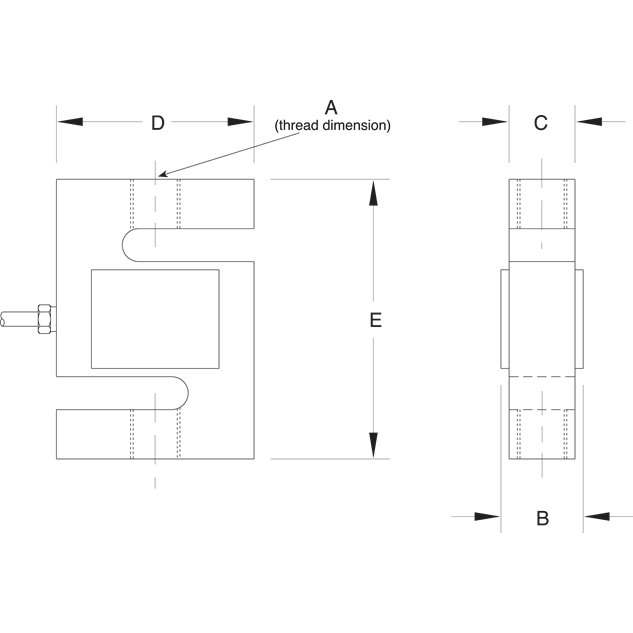

Load Cell Dimensions

Capacity (lb) A B    C D E
50 to 300 1/4-28 UNF 0.65
0.46 2.00 2.40
500 to 1,000 1/2-20 UNF 0.90
0.71 2.00 2.40
2,500 1/2-20 UNF 1.15
0.96 2.00 2.40
3,000 1/2-20 UNF 1.15
0.96 3.00 3.90
5,000 3/4-16 UNF 1.15
0.96 3.00 3.90
10,000 3/4-16 UNF 1.40
1.21 3.00 3.90
15,000 1-14 UNS 1.63
1.46 3.44 5.50
20,000 1-1/4-12 UNF 1.88
1.68 4.44 7.00
