PC-based software replicates basic weight indicator on-screen
NTEP Certified Class III/IIIL, 10,000d
Monitor load cell diagnostics and error conditions remotely
Provides iQUBE² configuration and digital I/O screen
View peak weight history and set recalibration alerts
Supports up to four active scales plus one total scale
RS-232 and TCP/IP communication support
Local and remote access through web browser
Multi-format print support (two formats)
Compatible with Windows® 8.1 and newer

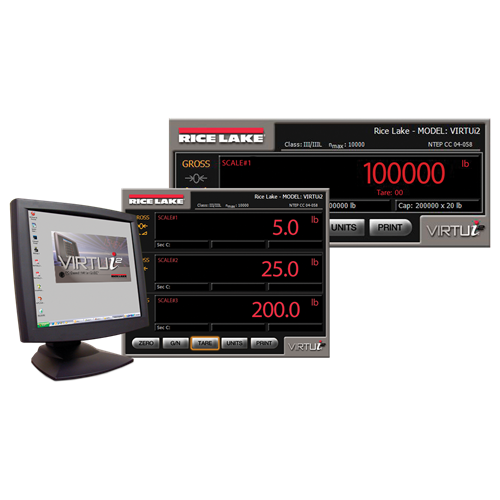

VIRTUi²® is a virtual Human Machine Interface (HMI) application designed to replicate the front panel of a weight indicator—placing full system control and monitoring on your PC screen. Built specifically for iQUBE²® digital junction boxes, VIRTUi² provides both basic and advanced functionality with added convenience and safety through remote accessibility.
This virtual indicator offers users complete access to diagnostics, calibration status, load cell health, and key system parameters—making it an ideal solution for system integrators, OEMs, and industrial facilities. It supports multiple scales, a total scale, and allows real-time visualization of section capacity, concentrated load capacity (CLC), and gross/net measurements in lb, kg, short tons, or metric tons.
With NTEP certification, VIRTUi² ensures legal-for-trade performance and full compliance with industry standards.
Virtual Front Panel: Simulates a 5-button keypad and display for hands-on interaction
Browser-Based Diagnostics: View iQUBE² cell status from local or remote browser sessions
Error & Event Reporting: Automated error condition alerts and diagnostic logs
Scalability: Supports up to four individual scales and one total scale
Print Functionality: Includes two configurable print formats for simplex output
Real-Time Monitoring: Access peak weight history, recalibration notifications, and cell diagnostics
Dual-Unit Support: Configure primary and secondary units (lb, kg, tn, t, none)
Web-Enabled: TCP/IP Ethernet connectivity for broader system integration
Secure Communication: RS-232 and Ethernet EDP communication options
| Component | Requirement |
|---|---|
| Operating System | Windows® 8.1 or newer |
| Processor | Compatible with standard Windows desktops/laptops |
| Communication Ports | Serial port or USB-to-serial converter |
| Ethernet | Required for TCP/IP connection to iQUBE² |
| Additional Ports | Needed for printer/remote display connections |
Gross / Net
Motion
Center of Zero
Units: lb, kg, short tons (tn), metric tons (t), NONE
NTEP CC# 04-058
Class III/IIIL, 10,000d
Streamline your system monitoring with VIRTUi²—a virtual, PC-based solution for seamless weight indicator replication and remote diagnostics. Whether you're integrating advanced weighing systems or managing multiple scales from a single workstation, VIRTUi² delivers the power of physical indicators with the flexibility of modern software.
Order today or contact us to learn how VIRTUi² can elevate your process control systems.
