Bright 0.8 in LED display in red or green for easy readability
Durable enclosures: FRP, stainless steel, compact, or panel mount
Compatible with RS-232 and current loop interfaces
Four annunciators: lb, kg, gross, net
Full floating decimal point for flexible weight formatting
Wall or panel mountable for versatile installations
Operates on AC or DC power
Sunlight-visible green LED available for outdoor use

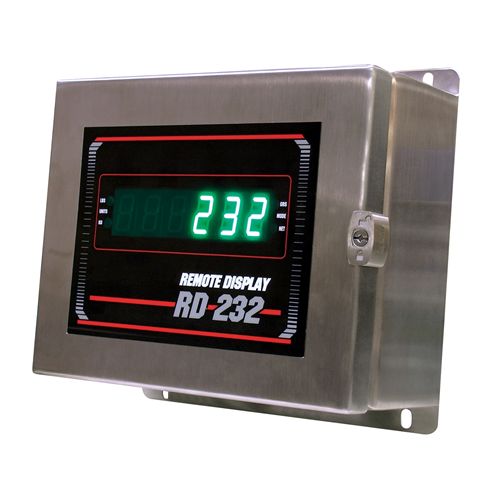

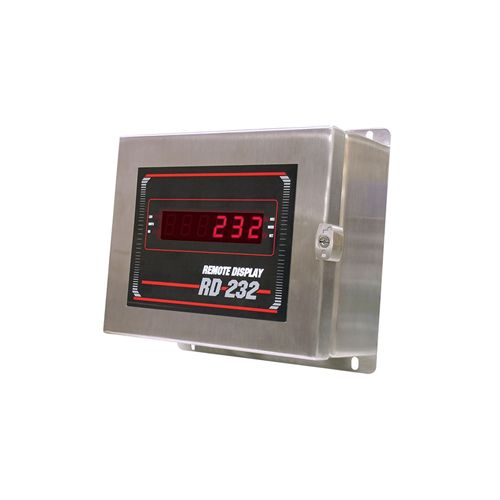

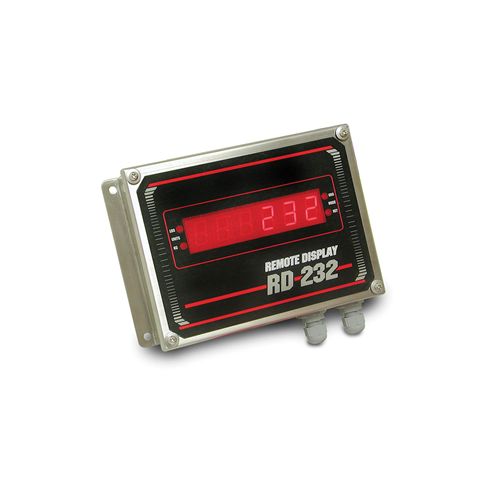

The RD-232 Remote Display delivers clear, accurate weight readings in both indoor and outdoor environments. Designed with versatility in mind, the RD-232 comes in several rugged enclosure types including fiberglass-reinforced polyester (FRP) and stainless steel, making it ideal for demanding industrial conditions.
Its 0.8 in high LED display is offered in standard red or high-intensity green, ensuring easy visibility even in direct sunlight. With four annunciators (lb, kg, gross, net) and DIP switch-selectable input settings, the RD-232 is compatible with most digital weighing indicators.
A full floating decimal point, selectable baud rates, and multiple mounting options make this remote display a plug-and-play solution for remote weight readouts across a wide range of environments.
| Feature | Details |
|---|---|
| Display | 6-digit, 7-segment LED, 0.8 in (20 mm), red or green |
| Annunciators | lb, kg, gross, net |
| Operating Voltage | 115 VAC, 230 VAC available; 6.2 to 18 VDC |
| Input Interface | RS-232, 20 mA current loop (active/passive) |
| Baud Rates | 300, 600, 1200, 2400, 4800, 9600, 19200 (selectable) |
| Temperature Range | -13 °F to 104 °F (-25 °C to 40 °C) |
| Enclosure Options | NEMA Type 4X FRP, Stainless Steel, Compact, Panel Mount |
| Weight | 5 lb (2.3 kg) FRP / 8 lb (3.6 kg) Stainless Steel |
| Warranty | One-year limited |

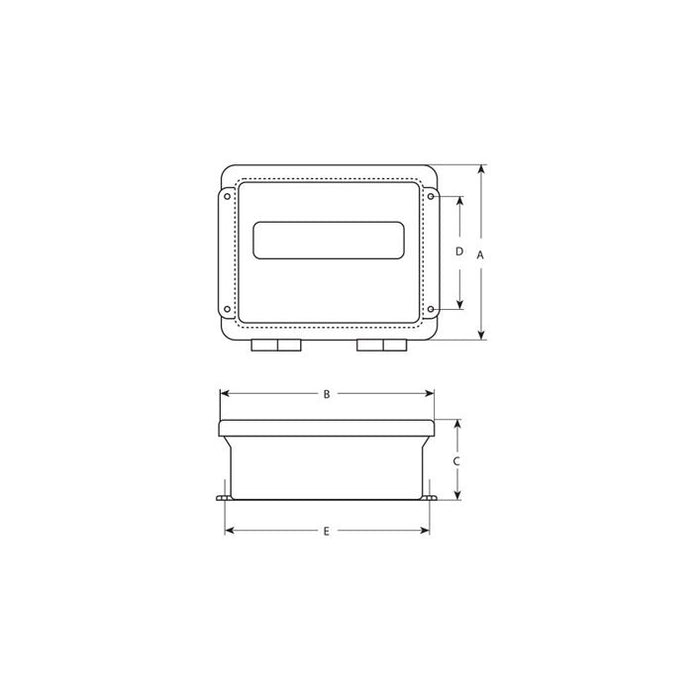

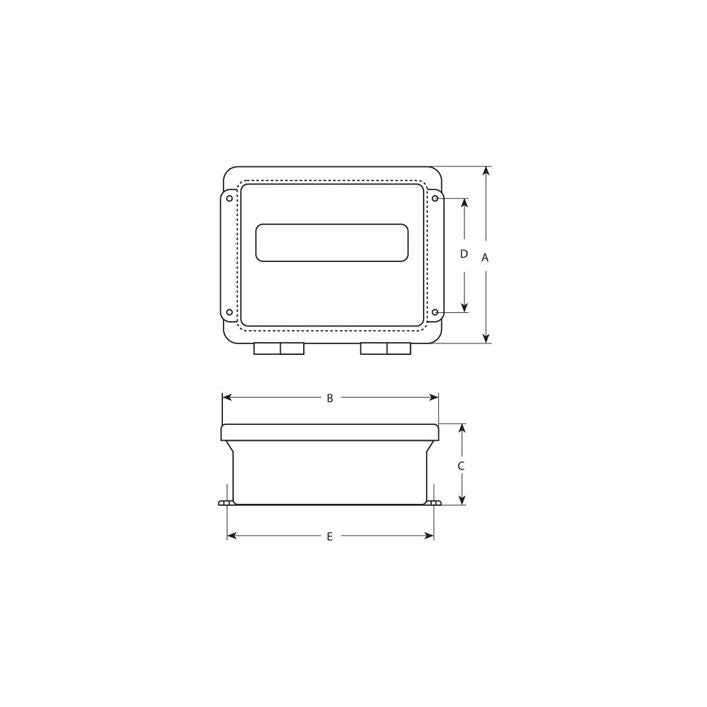

| Label | Measurement |
|---|---|
| A | 8.00 in (203 mm) |
| B | 9.50 in (241 mm) |
| C | 6.00 in (133 mm) |
| D | 4.00 in (101 mm) |
| E | 9.00 in (222 mm) |
| Label | Measurement |
|---|---|
| A | 8.00 in (203 mm) |
| B | 10.00 in (254 mm) |
| C | 4.31 in (109 mm) |
| D | 8.63 in (219 mm) |
| E | 8.00 in (203 mm) |
| Label | Measurement |
|---|---|
| A | 6.25 in (158 mm) |
| B | 9.25 in (234 mm) |
| C | 2.00 in (50 mm) |
| D | 5.25 in (133 mm) |
| E | 8.50 in (215 mm) |
| Label | Measurement |
|---|---|
| A | 5.88 in (149 mm) |
| B | 7.88 in (200 mm) |
| C | 2.00 in (50 mm) |
| D | 5.12 in (130 mm) |
| E | 7.12 in (180 mm) |
