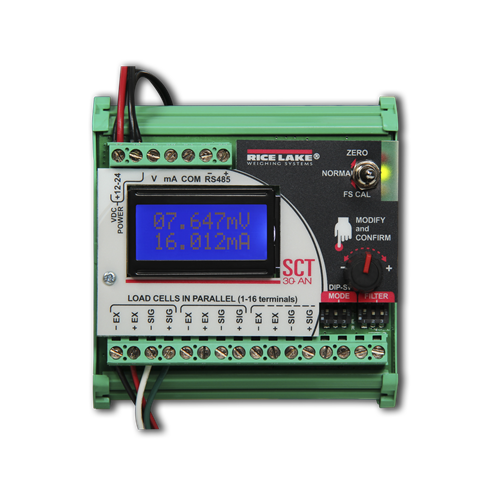

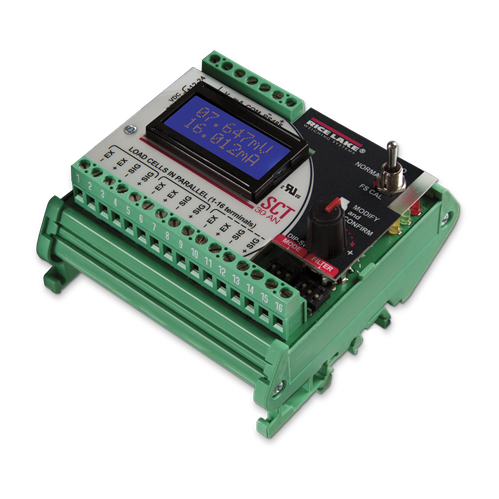

The Rice Lake SCT-30 Signal Conditioning Transmitter provides an efficient and cost-effective solution for PLC systems requiring weight data without the bulk of a full-size indicator or controller. Designed for DIN rail mounting, this compact unit seamlessly converts a scale’s load cell signal to serial or analog output, making it a reliable choice for industrial applications.
With a 16-bit analog output and an integrated LCD display, the SCT-30 ensures easy monitoring and control. Operators benefit from its user-friendly interface, featuring push buttons, a control knob, and DIP switches for zero, tare, and setpoint entry. Its diagnostic features help identify load cell disconnection and over-capacity errors, enhancing system reliability and reducing downtime.
| Specification | Details | |
|---|---|---|
| Power Input | 12 to 24 VDC | |
| Power Consumption | 3 W | |
| Excitation Voltage | 5 VDC, 120 mA, 8 × 350 ohm load cells | |
| Analog Signal Input Range | ± 39 mV | |
| Analog Signal Sensitivity | 0.3 μV/graduation (min), 1.0 μV/graduation (recommended) | |
| A/D Sample Rate | 300 Hz | |
| Internal Resolution | 16,000,000 counts | |
| System Linearity | ± 0.01% full scale | |
| Communication Ports | RS-485 | |
| Analog Output | Opto isolated, 16-bit (0-20 mA, 4-20 mA, 0-10 VDC, 0-5 VDC) | |
| Display | 8-digit alphanumeric, two-line LCD, 5 mm high | |
| Keys/Buttons | Control knob and DIP switches | |
| Mounting | DIN rail (NEMA Type 1) | |
| Dimensions (L × W × H) | 3.74 × 3.54 × 2.36 in (95 × 90 × 60 mm) | |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) | |
| Humidity | 85% non-condensing | |
| Weight | 1 lb (0.5 kg) | |
| Warranty | One-year limited | |
| Approval | cULus Recognized |
The Rice Lake SCT-30 Signal Conditioning Transmitter is an excellent choice for industries needing a compact yet powerful weight data solution. With high-precision measurement capabilities, easy installation, and advanced diagnostics, this transmitter is a must-have for efficient scale-to-PLC integration.
Upgrade your weight data system today! Contact us to order the Rice Lake SCT-30 now.
