Key Features:
-
Intrinsically safe design for hazardous locations (FM, ATEX, and IECEx approved)
-
LCD display with white LED backlight for clear visibility in dimly lit areas
-
Rechargeable battery option for up to 100 hours of operation
-
Duplex fiber-optic interface for electrically-isolated communication
-
Configurable local/remote mode for flexible use
-
Numeric keypad (882IS Plus) for easy data entry
-
FM-approved load cells and junction boxes for a complete intrinsically safe system
-
IP66-rated stainless steel enclosure for superior protection against harsh environments

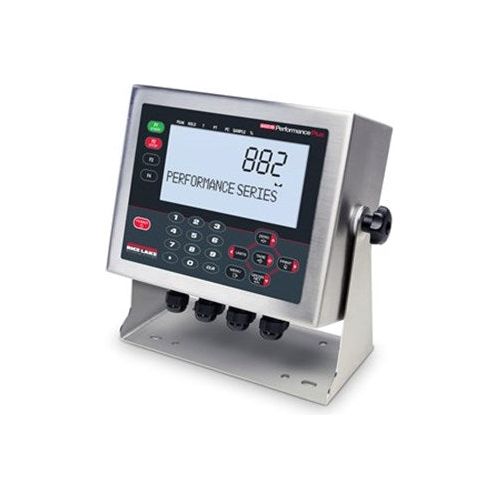

The Rice Lake 882IS/882IS Plus is a rugged, intrinsically safe digital weight indicator designed for hazardous environments, including chemical processing, mining, oil and gas, and explosive material handling applications. This explosion-proof scale indicator meets FM, ATEX, and IECEx safety standards, making it ideal for Class I, II, III, Division 1 hazardous locations.
The auto-ranging power supply enables wiring through a single AC conduit line from a safe area. For applications requiring mobility, an FM-approved rechargeable battery option is available, providing up to 100 hours of continuous use.
The white LED-backlit LCD display offers excellent visibility in all lighting conditions, and the IP66 stainless steel enclosure protects against dust, water, and corrosion. The optional safe-area I/O module expands connectivity with serial ports, Ethernet TCP/IP, analog output, and fieldbus support.
Specifications:
| Specification |
|
Details |
| Power Input |
|
5.8 to 7.9 VDC, 100 to 175 mA |
| Power Consumption |
|
0.25 W |
| Battery Life (Optional) |
|
60 hours (4 × 350Ω load cells)
80-100 hours (1 × 350Ω load cell)
8-10 hour charging time
|
| Excitation Voltage |
|
3.0 VDC at 87.5Ω, 4.6 VDC at 700Ω |
| Load Cell Compatibility |
|
Supports 4 × 350Ω or 8 × 700Ω load cells |
| Analog Signal Input Range |
|
-0.5 mV/V to 4.0 mV/V |
| Analog Signal Sensitivity |
|
0.2 μV/graduation minimum
1.5 μV/graduation recommended
|
| Resolution |
|
Internal: 1,000,000 counts
Display: 10,000 |
| Conversion Rate |
|
60 updates per second |
| Display |
|
Seven-segment LCD with 121 × 24 dot matrix messaging area |
| Annunciators |
|
Center of zero, gross, net, motion, lb, kg, oz, g |
| Motion Band |
|
Configurable to ±1 or ±3 graduations, 1 sec delay (or Off) |
| Display Increments |
|
1, 2, 5 |
| Keys/Buttons |
|
882IS: Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop, On/Off
882IS Plus: Full numeric keypad for data entry |
| Communication Ports (Optional I/O Module) |
|
Serial port, Ethernet TCP/IP, fieldbus, analog output |
| Operating Temperature |
|
14°F to 104°F (-10°C to 40°C) |
| Rating/Material |
|
IP66, Stainless Steel |
| Weight |
|
6.1 lb (2.8 kg) |
| Warranty |
|
One-year limited |
Intrinsic Safety Approvals:
| Approval |
|
Details |
| FM/cFM |
|
Class I, II, III, Division 1, Groups ABCDEFG T4
Class I, Zone 0 AEx/Ex ia IIC T4 Ga
Zone 21 AEx/Ex ib IIIC T135°C Db
|
| ATEX/IECEx |
|
II 1 G Ex ia IIC T4 Ga
II 2 D Ex ib IIIC T135°C Db
|
| Other Certifications |
|
NTEP CC 19-015, Measurement Canada AM-6124C, OIML R76/2006-A-NL1-21.11, CE Marked, UKCA, cULus Listed, EX-ATEX, IECEx |

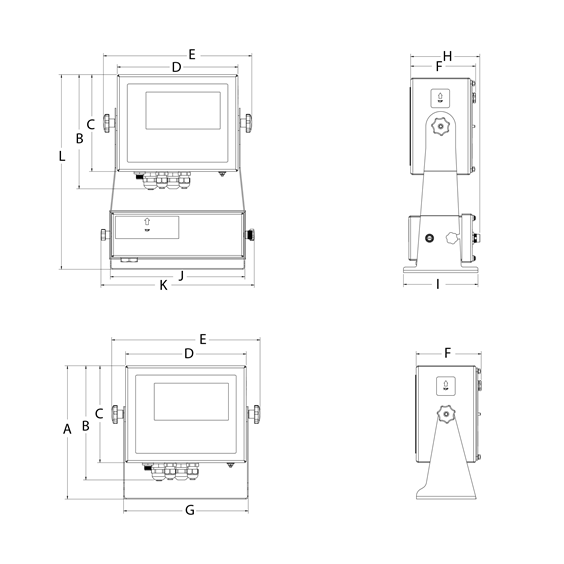

882IS Dimensions:
Without Battery
| Measurement |
|
Value |
| A |
|
8.94 in (227 mm) |
| B |
|
7.66 in (195 mm) |
| C |
|
6.50 in (165 mm) |
| D |
|
8.10 in (206 mm) |
| E |
|
9.96 in (253 mm) |
| F |
|
4.36 in (111 mm) |
| G |
|
8.37 in (213 mm) |

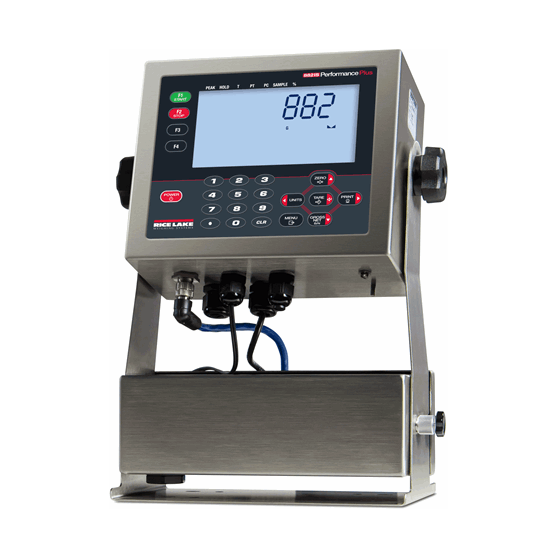

With Optional Battery and Tilt Stand
| Measurement |
|
Value |
| H |
|
4.64 in (118 mm) |
| I |
|
5.00 in (127 mm) |
| J |
|
9.03 in (229 mm) |
| K |
|
10.29 in (261 mm) |
| L |
|
13.06 in (332 mm) |

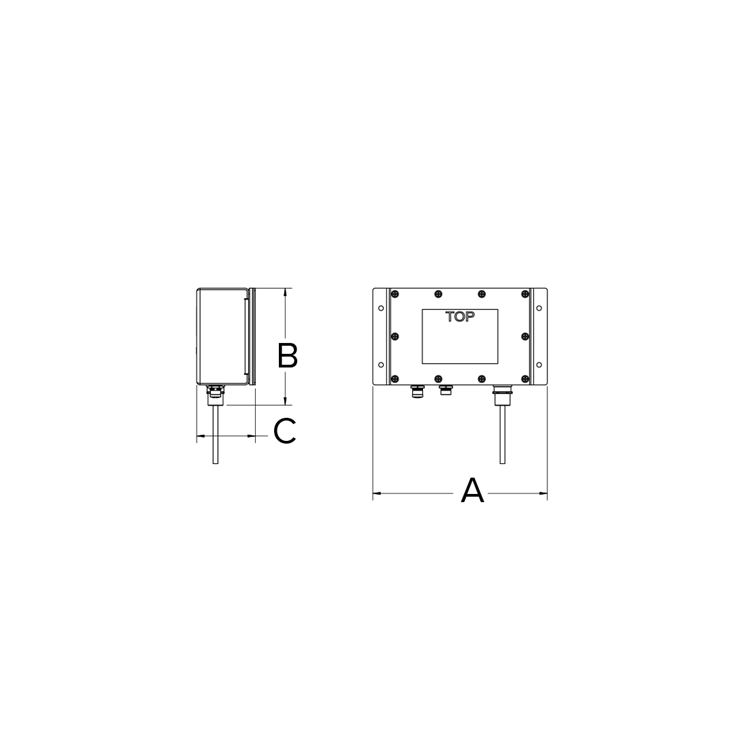

Optional Power Supply
| Measurement |
|
Value |
| A |
|
9.25 in (235 mm) |
| B |
|
6.20 in (158 mm) |
| C |
|
3.11 in (79 mm) |

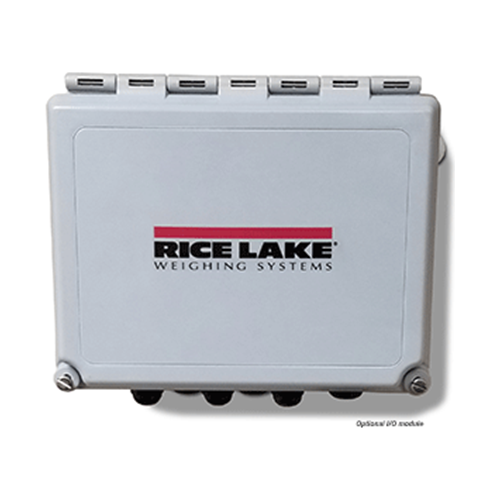

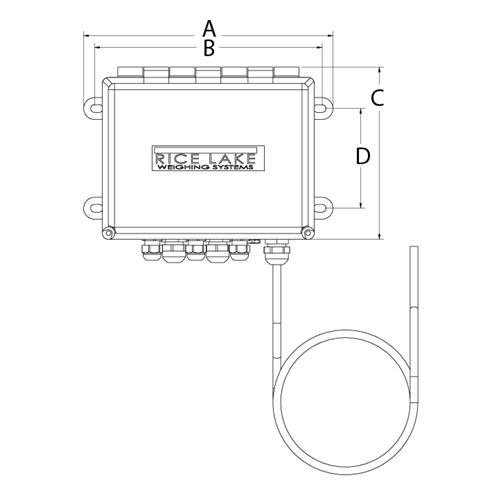

Optional I/O Module
| Measurement |
|
Value |
| A |
|
10.00 in (254 mm) |
| B |
|
9.13 in (232 mm) |
| C |
|
6.91 in (176 mm) |
| D |
|
4.00 in (102 mm) |
Why Choose the Rice Lake 882IS/882IS Plus?
The Rice Lake 882IS/882IS Plus is the ideal solution for hazardous location weighing applications requiring intrinsically safe operation. Whether fixed or mobile, this indicator provides superior safety, reliability, and connectivity in explosive or volatile environments.
✔ Intrinsically safe design with FM, ATEX, and IECEx certifications
✔ Multiple power options including AC wiring and rechargeable battery
✔ Optional I/O module for Ethernet, fieldbus, analog output, and serial communication
✔ LCD display with white LED backlight for optimal visibility
✔ IP66 stainless steel construction for maximum durability
