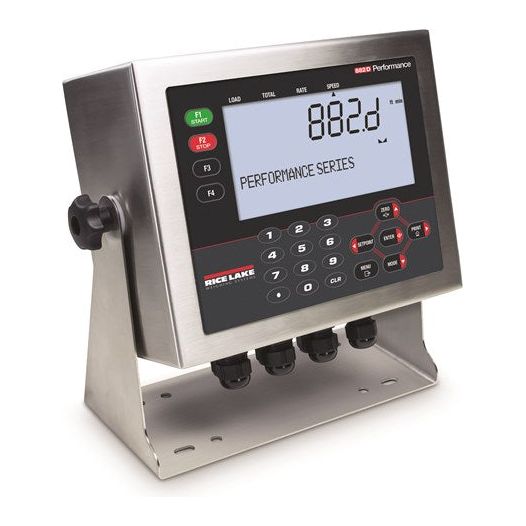

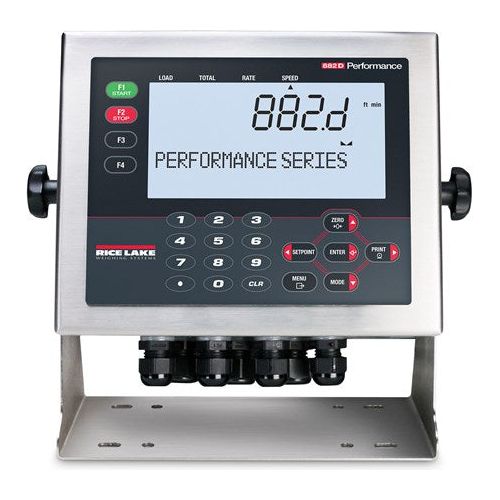

The Rice Lake 882D Belt Scale Integrator is designed for continuous, high-accuracy weighing in mining, aggregate, bulk material blending, and conveyor-based applications. This rugged, industrial-grade integrator provides real-time belt speed, rate, and total weight data, making it ideal for loadout monitoring, inventory tracking, and automated process control.
Built with a high-resolution 23-bit internal processor, the 882D ensures precise material flow measurement. The LCD display provides clear data visualization, even in low-light conditions, while redundant pulse inputs ensure accuracy in belt speed measurement.
With advanced I/O functionality, the 882D can automate material handling, batching, and dosing applications, while RS-232, RS-485, USB, and Ethernet connectivity enable seamless integration into industrial networks.
| Specification | Details | |
|---|---|---|
| Power Input | 100-240 VAC or 9-36 VDC | |
| Power Consumption | AC: 15 W, DC: 20 W | |
| Excitation Voltage | 10 VDC, supports 8 × 350Ω or 16 × 700Ω load cells | |
| Analog Signal Input Range | -45 mV to 45 mV | |
| Analog Signal Sensitivity | 0.3 µV/graduation minimum at 7.5 Hz, 1.0 µV/graduation typical at 120 Hz | |
| A/D Sample Rate | 7.5 to 120 Hz, software selectable | |
| Resolution |
Internal: 8,000,000 counts (23-bit) Display: 100,000 |
|
| System Linearity | ±0.01% full scale | |
| Digital I/O | 4 configurable I/O channels for process control | |
| Pulse Input | Dual pulse inputs for speed measurement and redundancy | |
| Communication Ports | RS-232 full duplex, RS-485 half duplex, USB 2.0, Ethernet TCP/IP | |
| Display | 0.8 in (20 mm) LCD, 7-digit weight display with 3 × 20 pixelated prompt area | |
| Annunciators | Load, Total, Rate, Speed, Zero | |
| Keys/Buttons | Flat membrane panel, tactile feel | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) | |
| Material & Rating | IP66 Stainless Steel | |
| Weight | 12 lb (5.4 kg) | |
| Warranty | Two-year limited | |
| EMC Immunity | 18 KV, 10 V/m | |
| Approvals | CE Approved, cULus Listed |

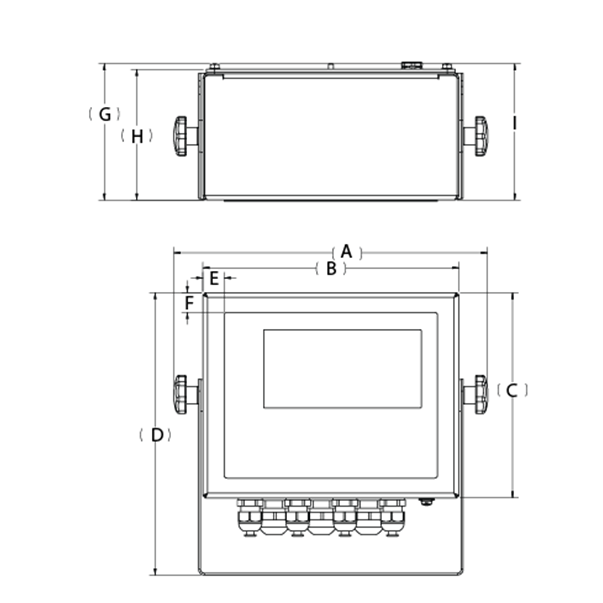

| Measurement | Value | |
|---|---|---|
| A | 9.93 in (252 mm) | |
| B | 8.10 in (206 mm) | |
| C | 6.50 in (165 mm) | |
| D | 8.94 in (227 mm) | |
| E | 0.68 in (17 mm) | |
| F | 0.63 in (16 mm) | |
| G | 4.31 in (110 mm) | |
| H | 4.14 in (105 mm) | |
| I | 4.32 in (110 mm) |
The Rice Lake 882D is engineered for durability, accuracy, and seamless integration into industrial weighing applications. Its IP66 stainless steel enclosure makes it ideal for harsh environments, and its advanced communication capabilities ensure compatibility with modern industrial systems.
✔ Accurate material flow measurement with dual pulse speed inputs
✔ Built-in batch processing and automation capabilities
✔ Rugged, weather-resistant design for extreme conditions
✔ Advanced communication via RS-232, RS-485, USB, and Ethernet
✔ User-friendly LCD interface for real-time monitoring
