Adjustable height and width in 1-inch increments
Available in mild or stainless steel construction
Built-in load cell overload protection
Jack bolts in leveling feet for conveyor height alignment
Converts existing conveyor legs into functional weighing scales
Compatible with a wide range of conveyor manufacturers
Includes load cells, junction box, stabilizing braces, and hardware
Optional accessories like indicator stands and brace kits

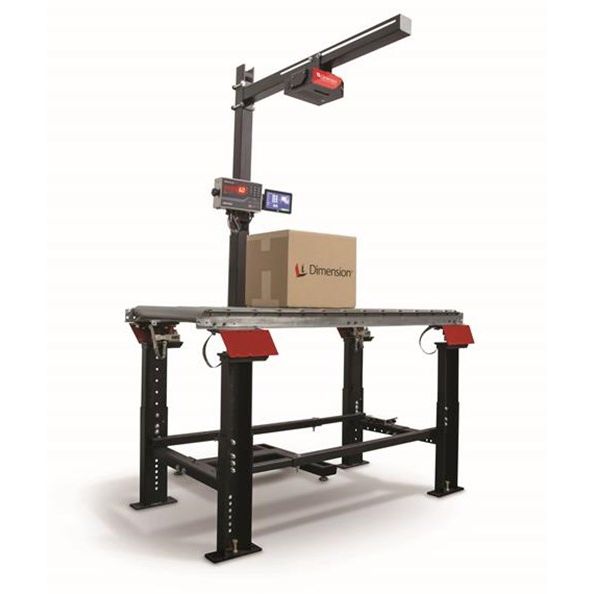

The ELS Series Elevated Load Cell Stands from Rice Lake Weighing Systems are designed to seamlessly convert existing conveyor systems into fully functional scales. Whether your facility handles light packaging or industrial-grade operations, these flexible and cost-effective weigh stands provide a streamlined solution to integrate weighing into your workflow.
With adjustable height and width in 1-inch increments, ELS stands are engineered to suit almost any conveyor setup, regardless of manufacturer. Their robust powder-coated mild steel or stainless steel frames are built to withstand rugged environments while providing precise load cell measurements. The included jack bolts and leveling shims allow for simple alignment with your conveyor height, making installation both quick and reliable.
Each ELS kit comes complete with four single-ended beam load cells, a junction box, stabilizing braces, leveling hardware, and cable—all necessary components to begin weighing immediately. These load cell stands offer long-term performance, flexibility, and scalability for growing operations.
Two weigh stands (adjustable height and width)
Four RL32018 or RL32018S single-ended beam load cells (250 lb, 500 lb, or 1,000 lb capacity)
One junction box
Two adjustable stabilizing braces
Leveling feet with jack bolts and shims
25 ft load cell cable
All required mounting hardware
| Optional Component | Description |
|---|---|
| Indicator Stand | Mild or stainless steel construction |
| Additional Weigh Stand (Single) | For expanding weighing coverage |
| Extra Stabilizing Brace Kit | For additional structural support |
Note: Conveyors and rollers are not included and must be sourced separately.
| Component | Details |
|---|---|
| Load Cells | RL32018 or RL32018S |
| Capacities | 250 lb, 500 lb, 1000 lb |
| Cable Length | 25 feet |
| Construction | Mild steel or stainless steel |
| Adjustability | Height and width in 1-inch increments |
| Warranty | Two-year limited warranty |
| Approvals | FM Approved load cells |

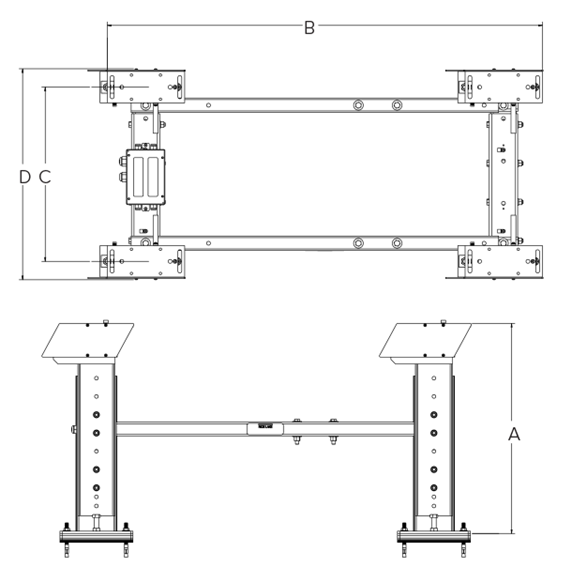

| Ref | Kit Size | Min Dimension (in) | Max Dimension (in) |
|---|---|---|---|
| A | Small | 22 | 28 |
| Large | 29 | 36 | |
| B | All | 30 | 60 |
| C | Small | 17 | 24 |
| Medium | 25 | 36 | |
| Large | 37 | 54 | |
| D | Small | 22 | 28 |
| Medium | 29 | 40 | |
| Large | 41 | 58 |
Rice Lake's ELS Series stands are a dependable, adaptable solution for in-motion or static weighing on conveyor lines. Whether integrating into existing equipment or building new setups, these weigh stands deliver unmatched compatibility, precision, and durability.
Upgrade your conveyor system into a precision weighing solution with the ELS Series Elevated Load Cell Stands. Designed for quick installation, heavy-duty performance, and full adjustability, these stands are the smart choice for seamless scale integration.
Contact us SellEton Scales today to request a custom quote or learn how to optimize your conveyor operations.
