Key Highlights
-
Rigid 304 stainless steel construction for long-lasting corrosion resistance
-
Smooth stainless steel deck ensures easy surface maintenance
-
NTEP Certified, IP66 stainless steel shear beam load cells
-
Six-inch stainless steel channel frame for maximum structural protection
-
Side access stainless steel TuffSeal® junction box
-
20 ft hostile environment EL147HE load cell cable included
-
Four adjustable stainless steel SUREFOOT™ support feet
-
Legal for Trade – Approved by NTEP and Measurement Canada

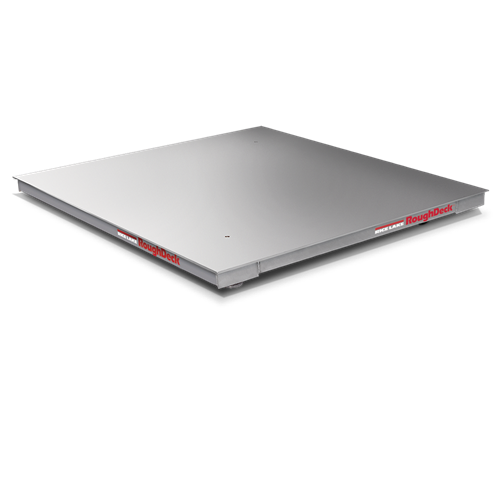

The RoughDeck® SS Stainless Steel Floor Scale is built for industrial environments where non-washdown corrosion resistance is a must. Ideal for dry chemical processing, fertilizer plants, and similar operations, this scale delivers uncompromising strength, accuracy, and Legal for Trade reliability.
Its 304 stainless steel channel frame houses the load cells, cable, and junction box internally, shielding them from exposure to corrosive materials. The scale’s smooth top plate, stitch-welded finish, and IP66 load cells provide peace of mind in tough conditions where durability and compliance are essential.
Whether for material handling or production weighing, the RoughDeck SS stands up to environmental abuse while maintaining consistent accuracy.
RoughDeck SS Specifications
| Feature |
Specification |
| End Load Capacity |
200% full scale at 1,000 lb
100% at 2,000 lb and 5,000 lb
80% at 10,000 lb |
| Cable Length |
20 ft (6.1 m) |
| Construction |
AISI304L stainless steel, glass bead blasted finish |
| Top Plate |
Smooth stainless steel |
| Frame Design |
6-inch rigid stainless steel channel frame |
| Junction Box |
TuffSeal® JB4SS, NEMA Type 4X, stainless steel (side access) |
| Welding |
Stitch (consult factory for continuous weld option) |
| Load Cells |
Four stainless steel, NTEP Certified, IP66 shear beam |
| Support Feet |
Four adjustable stainless steel SUREFOOT™ feet |
| Eyebolt Hole |
1/2-20 NF threaded lifting hole in deck center |
| Warranty (Limited) |
Weldment: Five-year
Load cells: Two-year
All other: One-year |
| Approvals |
NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-4827 |
The RoughDeck SS is your go-to stainless steel floor scale for Legal for Trade, non-washdown applications in harsh industrial settings.
Order now or contact us to configure your RoughDeck SS for your facility's precise weighing needs.
