Key Highlights
-
Live side rails for secure and accurate drum weighing
-
IP66 stainless steel welded-seal load cells for washdown environments
-
Top-access foot adjustment holes for easy leveling
-
Includes four stainless steel SUREFOOT™ adjustable support feet
-
Smooth top plate for efficient cleaning and hygienic use
-
Portability kit includes NSF-approved casters and lifting mechanism
-
Optional ramp brackets for quick and easy material loading
-
Ideal for food, chemical, or sanitary production environments
The RoughDeck® BDP Stainless Steel - Portable Model is engineered for mobile, sanitary applications requiring precision and durability. Built with IP66-rated stainless steel load cells and a smooth top plate, this floor scale is designed to perform in washdown and hygienic environments where cleanliness is crucial.

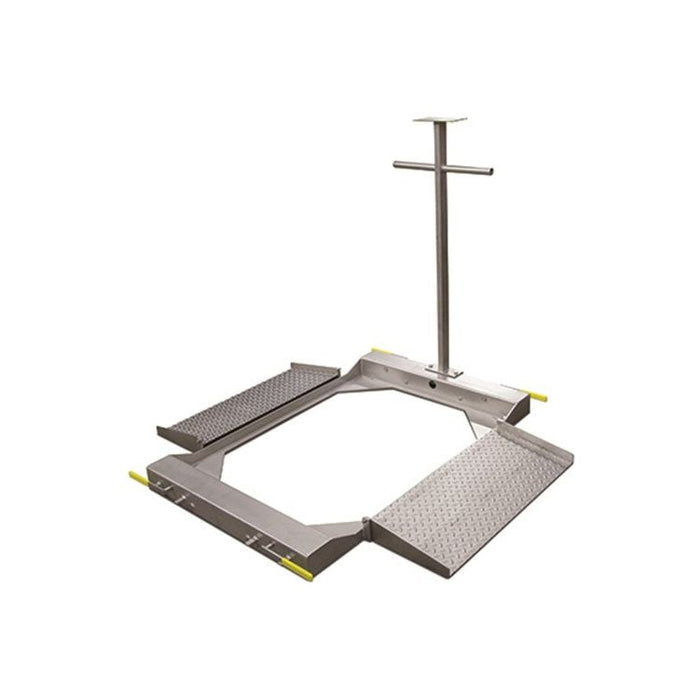

This portable version comes with a low-profile frame, integrated lifting system, and NSF-approved stainless steel casters that make it easy to move between workstations or production areas. It includes live side rails that securely guide drums or barrels into place during weighing. Mounting brackets for ramps enable safe and fast loading.
Whether used in pharmaceutical, food processing, or chemical industries, this Legal for Trade floor scale ensures accuracy, compliance, and convenience.
RoughDeck BDP Stainless Steel Portability Kit Specifications
| Feature |
Specification |
| End Load Capacity |
1000 lb: 100% full scale
2500 lb: 80% full scale |
| Cable Length |
10 ft (3 m) |
| Load Cells |
IP66 stainless steel welded-seal |
| Junction Box |
TuffSeal® JB4SS NEMA 4X stainless steel with signal trim |
| Threaded Eyebolt |
1/2-13 threaded holes for lifting scale |
| Welding |
Stitch weld (consult factory for continuous weld) |
| Warranty (Limited) |
Weldment: 3 years
Load Cells: 2 years
Other: 1 year |
| Approvals |
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578 |
Dimensions – With Portability Frame and Hinged Access Ramps
30 × 31 in Model
| Reference |
Measurement |
Reference |
Measurement |
| A |
30.00 in |
G |
29.25 in |
| B |
31.00 in |
H |
3.25 in |
| D |
3.66 in |
I |
49.25 in |
| J |
52.25 in |
L |
40.37 in |
| M |
12.00 in |
|
|
36 × 37 in Model
| Reference |
Measurement |
Reference |
Measurement |
| A |
36.00 in |
G |
35.25 in |
| B |
37.00 in |
H |
3.25 in |
| D |
3.66 in |
I |
55.25 in |
| J |
58.25 in |
L |
40.37 in |
| M |
12.00 in |
|
|
Get the flexibility and reliability you need for sanitary industrial weighing tasks. Contact us now.
