Key Highlights
-
NTEP Certified and Measurement Canada Approved models available
-
Load capacities from 5,000 lb to 60,000 lb
-
Comes standard with RL20000 alloy steel load cell and ITCM load cell assembly
-
Heavy-duty mild steel construction with black paint finish
-
Optional stainless steel, hermetically sealed load cells
-
Built for high-impact industrial and agricultural environments
-
100% end load capacity for rugged durability
-

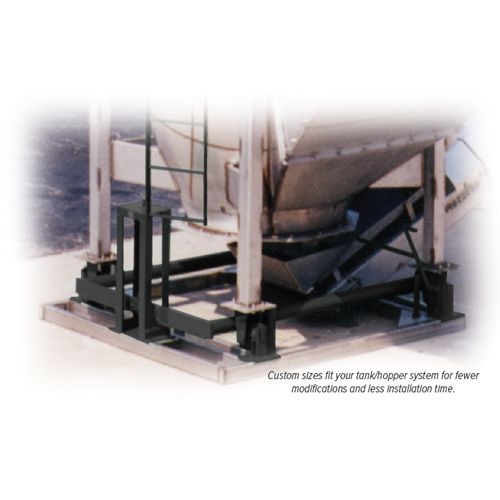

Custom sizes and configurations available

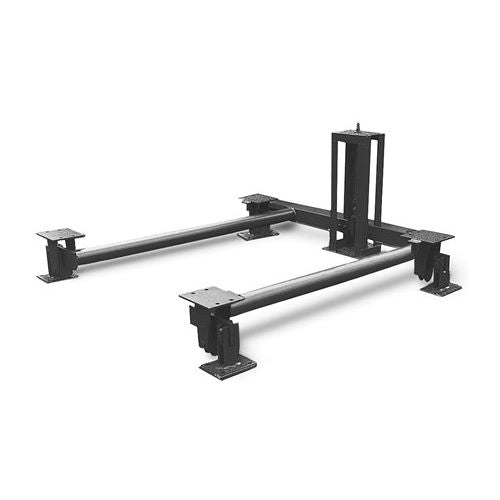

The Rice Lake Pipe Lever Scale is an industrial-grade weighing system designed for durable, high-capacity applications in agricultural, industrial, and heavy-load environments. Built with a robust mild steel frame and finished in protective black paint, this lever scale system is made to endure tough conditions while maintaining precise and reliable measurements.
Each unit comes complete with a Rice Lake RL20000 alloy steel load cell and ITCM load cell assembly, ensuring plug-and-play setup and dependable performance. For operations in more demanding or corrosive environments, stainless steel load cells are also available.
With NTEP and Measurement Canada approvals, the Pipe Lever Scale is legal for trade on configurations with capacities greater than 10,000 kg or platform sizes exceeding 1.6 meters—making it a reliable solution for certified commercial use.
Specifications
| Feature |
Specification |
| Capacity Range |
5,000 lb – 60,000 lb |
| Material Options |
Mild steel (standard), Stainless steel (optional) |
| Load Cell |
RL20000 alloy steel (standard) |
| Load Cell Assembly |
ITCM included |
| End Load Capacity |
100% full scale |
| Output Signal |
1.50 to 1.87 mV/V nominal |
| Cable Length |
20 ft (6.1 m) |
| Warranty |
5-Year SellEton Warranty |
| Approvals |
NTEP CC 94-126 Class III/IIIL
Measurement Canada AM-5114 Legal For Trade (10,000 kg+/>1.6 m) |
Model Variations
| Part No. |
Capacity |
Style |
Material |
A |
B |
C |
D |
E |
Bearing PN |
| CM783 |
25K |
A |
Steel |
8 |
8 |
8 1/8 |
6 |
6 |
CM755 |
| 35055 |
25K |
B |
Steel |
6 |
6 |
4 1/2 |
4 1/2 |
8 5/8 |
CM755 |
| 46315 |
25K |
B |
SST |
6 |
6 |
4 1/2 |
4 1/2 |
8 5/8 |
46323 |
| 35054 |
25K |
B |
Steel |
7.75 |
7.75 |
4/6 |
6 |
8 1/8 |
CM755 |
| 50040 |
25K |
B |
Steel |
6 |
7.75 |
6 |
4.5 |
8 1/8 |
CM755 |
| 50182 |
25K |
B |
SST |
7.75 |
7.75 |
4.5 |
6 |
8 1/8 |
46323 |
| 39524 |
5K |
C |
Steel |
5 |
5 |
3.5 |
3.5 |
5 |
F731 |
| 40452 |
10K |
C |
Steel |
6 |
6 |
4.5 |
4.5 |
6.75 |
40460 |
| 39982 |
20K–30K |
C |
Steel |
9 |
9 |
6.5 |
6.5 |
11.125 |
39990 |
| 39128 |
40K–50K |
C |
Steel |
12 |
12 |
9.25 |
9.25 |
14.75 |
39134 |
| 101601 |
60K |
C |
Steel |
12 |
12 |
7.5 |
5 |
14.75 |
39134 |
| 115797 |
25K–30K |
D |
Steel |
6 |
6 |
— |
— |
The
Rice Lake Pipe Lever Scale delivers unmatched durability and accuracy for industrial and agricultural weighing tasks. With
certified models, customizable sizes, and rugged construction, it's the ideal solution for high-volume operations.
Request your quote today or contact us for a custom configuration.
