Key Highlights
-
Legal for Trade measurements from 12 × 12 × 12 in to 96 × 96 × 96 in
-
Available in free-standing or suspended configurations
-
Integrates with floor scales, conveyors, and stretch wrappers
-
Color image capture for claim defense and shipment verification
-
Easy two-person assembly with top-side junction box
-
Optional second camera and sensor for black stretch film
-
Ethernet, USB, and RS232 connectivity
-
NTEP, OIML, CE, FCC, MID Certified
-
Industry-leading under two-second dimensioning speed
-
Five-year warranty on sensors
The iDimension® Flex Series from Rice Lake is a highly versatile static dimensioning solution for high-volume shipping, freight, and logistics operations. Engineered to quickly and accurately measure palletized and irregular freight, the Flex Series protects against carrier invoice disputes by generating Legal for Trade dimensional data and photographic records for every shipment.
Available in floor-mounted or suspended configurations, this system offers clear access to the dimensioning zone, making it the ideal integration above a floor scale, stretch wrapper, or conveyor system. With a minimum measurement of 12 × 12 × 12 in and a maximum of 96 × 96 × 96 in, the Flex Series captures even the bulkiest loads with precision in less than two seconds.
An optional second camera and infrared center sensor ensure even black stretch-wrapped freight is measured accurately, helping prevent costly errors and claims.
Whether your operation is palletizing, wrapping, weighing, or loading outbound shipments, the iDimension Flex brings unparalleled efficiency and accountability to your logistics process.
Available Configurations
Configuration | Description |
---|---|

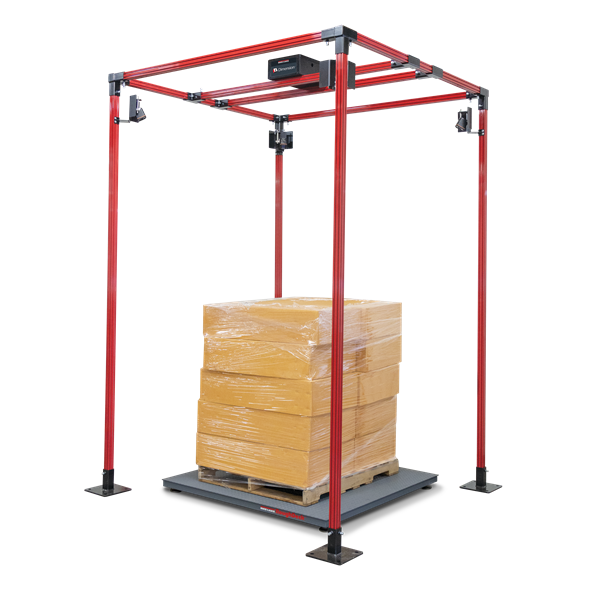

Free-Standing Frame | Floor-mounted frame allows easy setup above a fixed scale or wrapping zone |

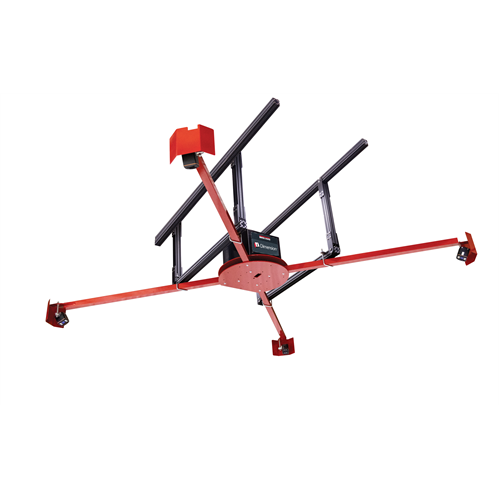

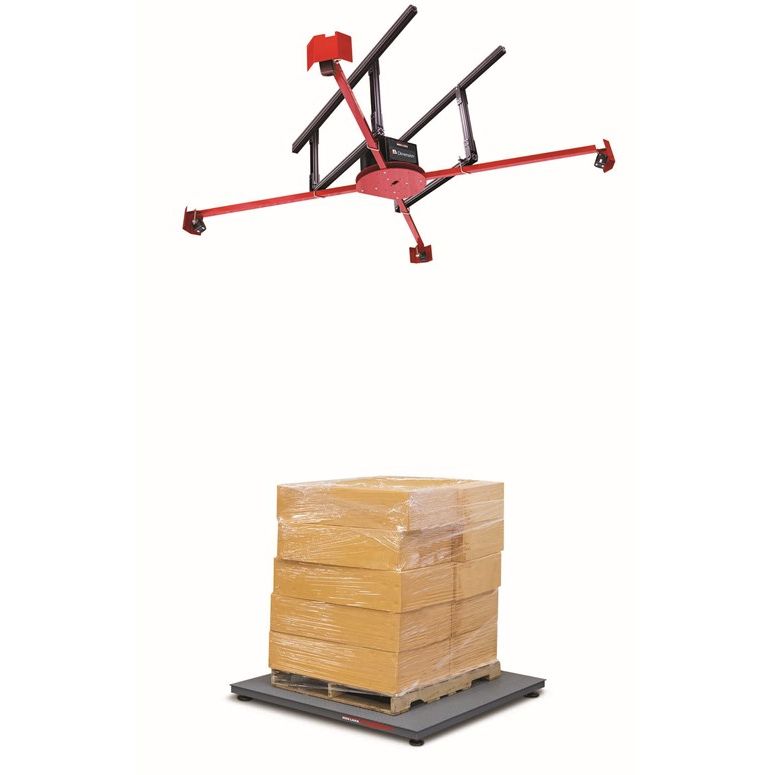

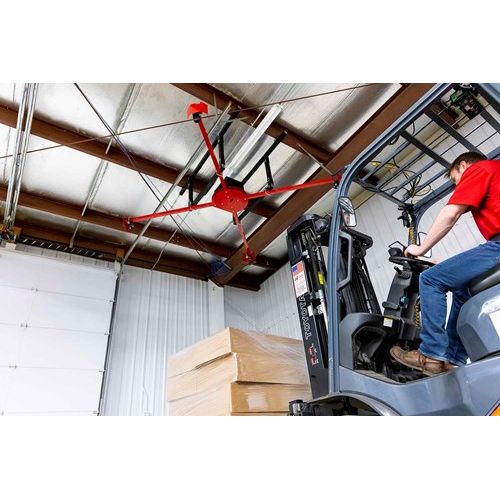

Ceiling Suspended | Save floor space by mounting over conveyors or high-traffic areas |
System Integration Options
-
Works with Bench or Floor Scales (not included)
-
Compatible with conveyors and stretch wrappers
-
Seamlessly integrates with Rice Lake indicators
-

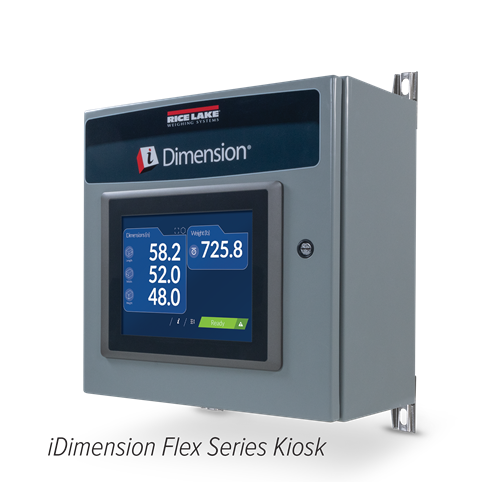

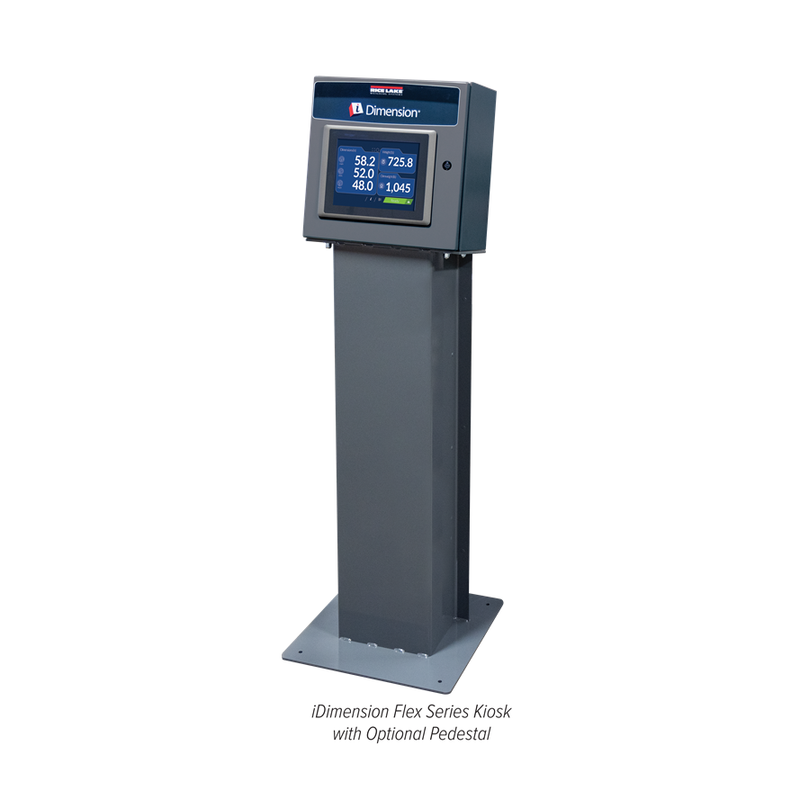

Pair with Kiosk Pedestal Base for operator interface
-
Network Integration Toolkit for API/data push setups
Certifications & Approvals
-
NTEP Certified Legal for Trade (19-076A4)
-
OIML, CE, FCC, MID Certified
-
Compliant for use in regulated shipping environments
Dimensioning Specifications
Feature | Specification |
---|---|
Min Measurable Dimensions | 12 × 12 × 12 in (300 × 300 × 300 mm) |
Max Measurable Dimensions | 96 × 96 × 96 in (2438 × 2438 × 2438 mm) |
Accuracy | Legal for Trade Certified |
Measurement Speed | Less than 2 seconds |
Warranty | Two-year standard, five-year on sensors |
Connectivity & Electrical
Specification | Value |
---|---|
Power Requirements | 110–240 VAC (25 ft U.S. power cable included) |
Ports | Ethernet TCP/IP, USB, RS232 Serial |
Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
Humidity | 0–90% non-condensing |
Physical Dimensions

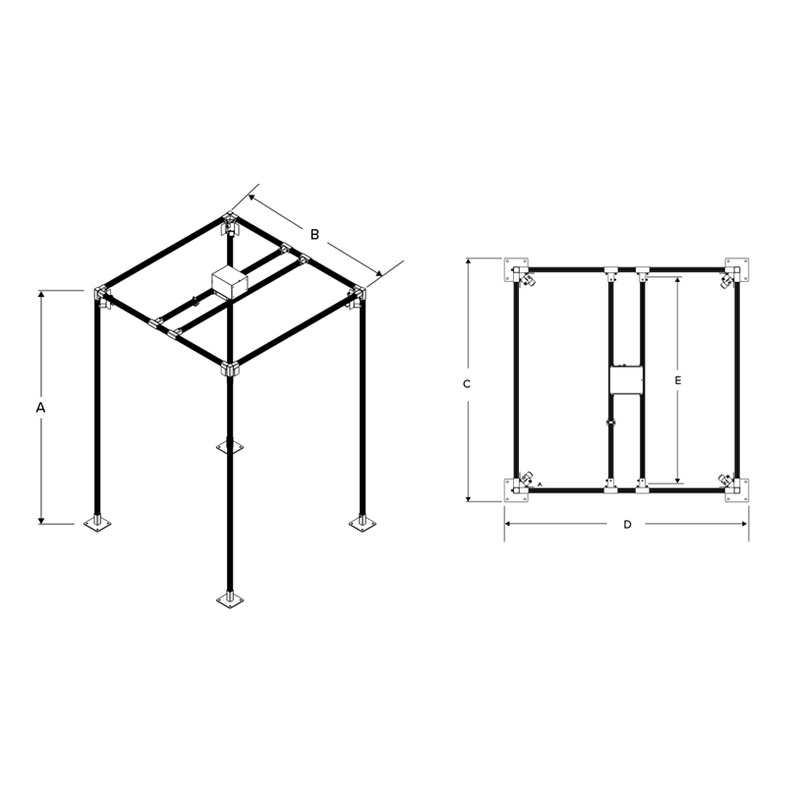

Free-Standing Frame (Max Dimensions)
Component | Size (inches) | Size (mm) |
---|---|---|
A | 145.38 | 3693 |
B | 93.00 | 2362 |
C | 104.88 | 2664 |
D | 105.00 | 2667 |
E | 85.08 | 2161 |

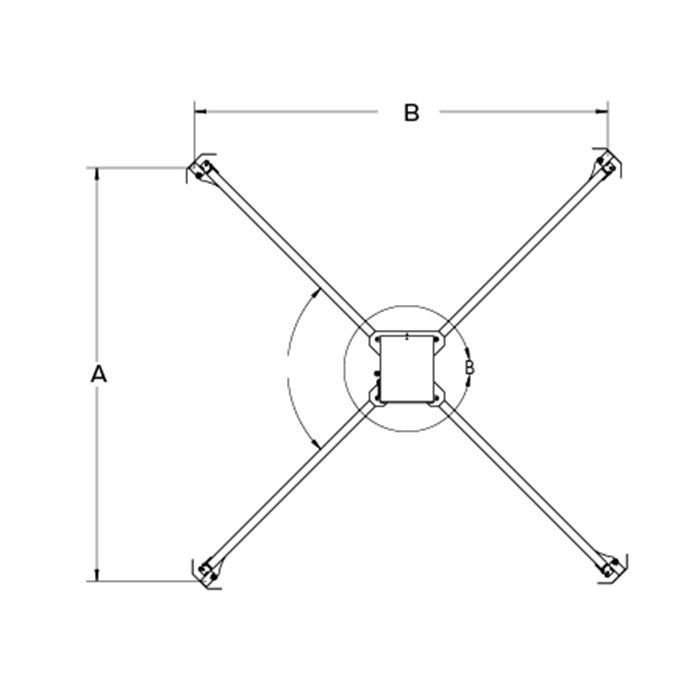

Suspension Configuration
Component | Size (inches) | Size (mm) |
---|---|---|
A | 88.12 | 2238 |
B | 88.12 | 2238 |
Ideal Applications
-
LTL Freight Shippers
-
Palletized Inventory Control
-
3PL Warehousing & Distribution
-

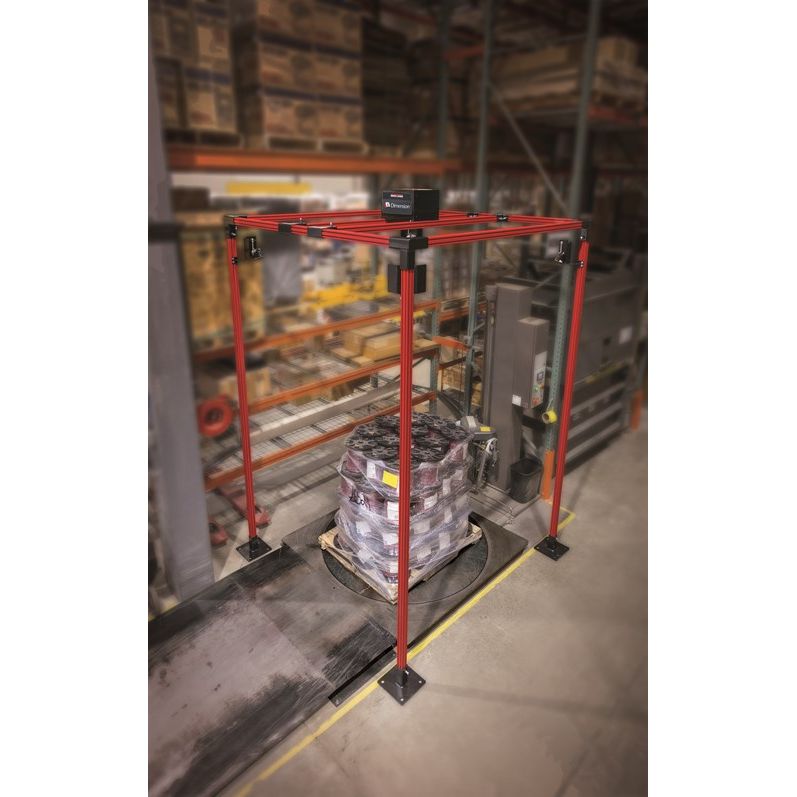

Stretch Wrapping Stations
-
Claim Defense via Photo Verification
-
Dimensional Weight Charge Avoidance
Streamline your outbound shipping process and protect your profits with the Rice Lake iDimension® Flex Series.
From faster pallet processing to real-time dimensioning data and claim protection through image capture, this is the dimensioning solution modern logistics demands. Choose from suspended or freestanding models and customize it with additional cameras or sensors for even greater accuracy.
Contact us today to configure your Flex system or request a quote for your application.
