Rice Lake Summit 3000 Floor Scale and 120 Indicator Package

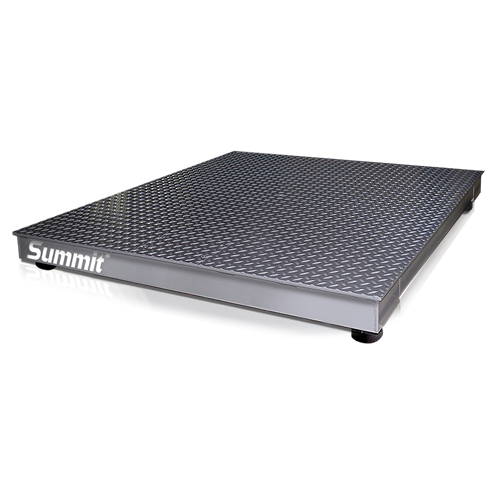

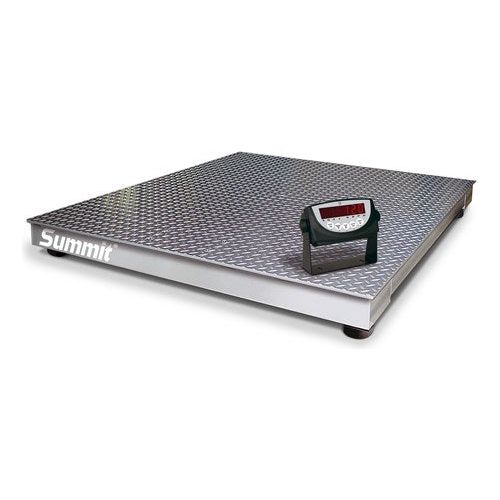

Summit® 3000 Floor Scale and 120 Indicator Package
Rice Lake Summit 3000 Floor Scale and 120 Indicator Package

Summit® 3000 Floor Scale and 120 Indicator Package

$0.00 - $0.00
$0.00
$3,240.00
$3,240.00 - $3,240.00
$3,240.00
Backed by SellEton's 5 Year Limited Warranty — see terms

Downloads

Product Catalog
Summit Scale and 120 Indicator Package Catalog Page Summit 3000 Access Ramps Catalog Page Summit 3000 Pit Frames Catalog Page
User Manual
Summit 3000 Installation Manual 120 Digital Weight Indicator Technical Manual

Key Highlights

  • Designed to meet NTEP 92-001 and Measurement Canada standards for Class III Legal for Trade applications.

  • Supplied as a complete package including the scale, indicator, and 20 ft load cell cable.

  • Features a low-profile, diamond safety tread plate deck for secure footing and easy floor integration.

  • Equipped with four adjustable polyurethane rubber feet for stable positioning on uneven surfaces.

  • Includes a top-access junction box with a signal trim board for easy setup and maintenance.


This industrial floor scale package combines the rugged Summit® 3000 low-profile scale with the user-friendly 120 digital indicator, creating a powerful and reliable weighing solution for general industrial use. The scale deck is constructed with a durable diamond safety tread plate to withstand heavy traffic and provide secure footing in busy environments. Four NTEP-certified alloy steel shear beam load cells ensure consistent accuracy, while the adjustable polyurethane feet allow for stable setup on imperfect floors.

The package is factory calibrated for 5,000 divisions and features a top-access junction box for simplified installation. The included 120 indicator offers straightforward operation with its large, 0.8-inch backlit LCD display and five-button membrane keypad. Full front panel digital calibration simplifies configuration, while multiple communication ports provide flexibility for connecting to printers or computers. A threaded eyebolt hole in the center of the deck allows for easy lifting and relocation of the scale as your workspace evolves.

Specifications

Specification Details
Package Configuration Summit 3000 Scale, 120 Indicator, 20 ft Cable
Scale Platform Size 4 ft × 4 ft
Capacity / Divisions 5,000 lb / 5,000 divisions; 10,000 lb / 5,000 divisions (80% full scale)
Scale Approvals NTEP 92-001, Class III 5,000 d; Measurement Canada AM-5530
Indicator Display 0.8 in (20 mm) backlit LCD
Indicator Approvals NTEP 03-059, Class III/IIIL 10,000 d; Measurement Canada AM-5517; EU Test Certificate TC7028
Communication Ports Full Duplex RS-232; Output-only RS-232 or 20 mA current loop
Load Cell Cable 20 ft (6.1 m) with quick disconnect
Power 115 or 230 VAC, 50 or 60 Hz
Warranty 5-Year SellEton Warranty

Enhance your material handling efficiency with this reliable Rice Lake package. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
