Key Highlights
-
IP69K stainless steel construction for full washdown protection
-

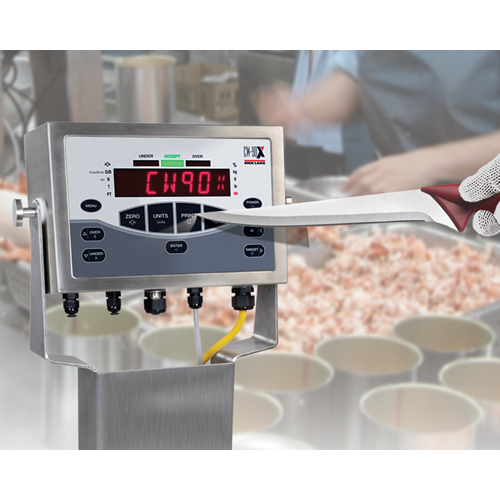

Rigid piezo keypad withstands knife-point contact and liquids
-
0.8" high-intensity red LED display for visibility in any light
-
Resistant to RFI, EMI, and ESD interference
-
Stores up to 50 product IDs with audit trail tracking
-
Legal for Trade: NTEP, OIML, Measurement Canada, CE
-
Five-point overload protection with IP69K hermetically sealed load cell
-
HACCP-compliant for food safety environments
-
Optional Ethernet, USB, or fiber optic communication
-
Factory calibrated and ready for industrial use

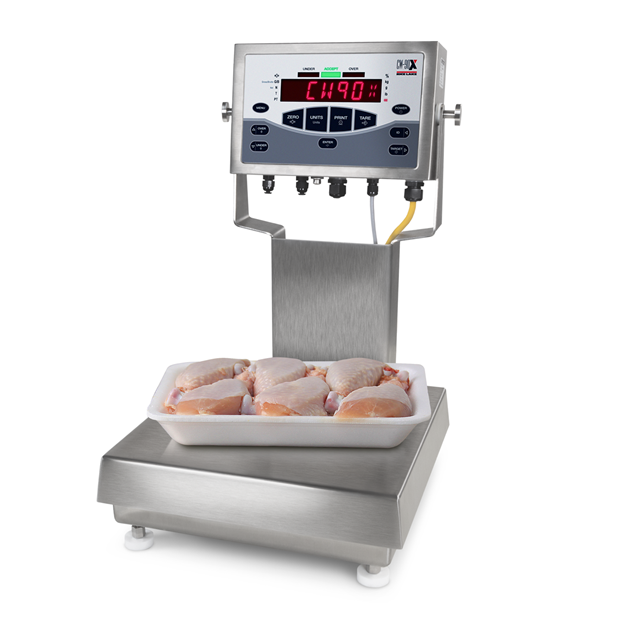

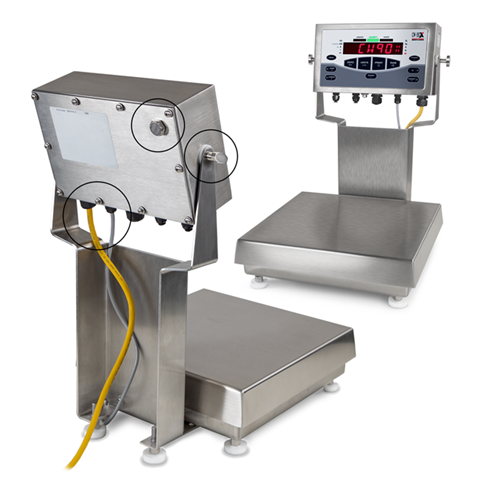

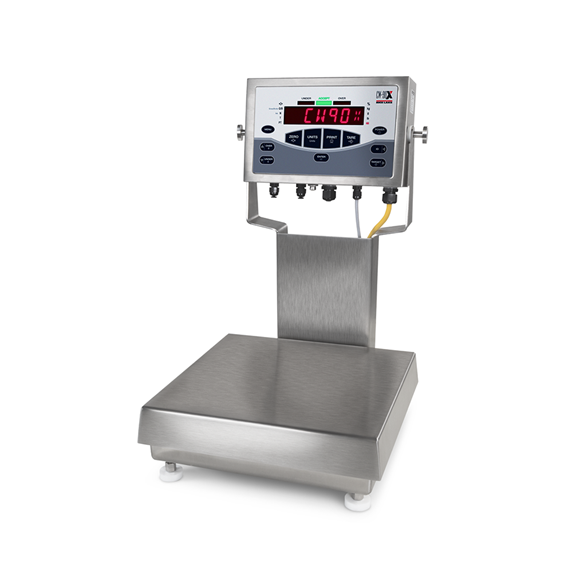

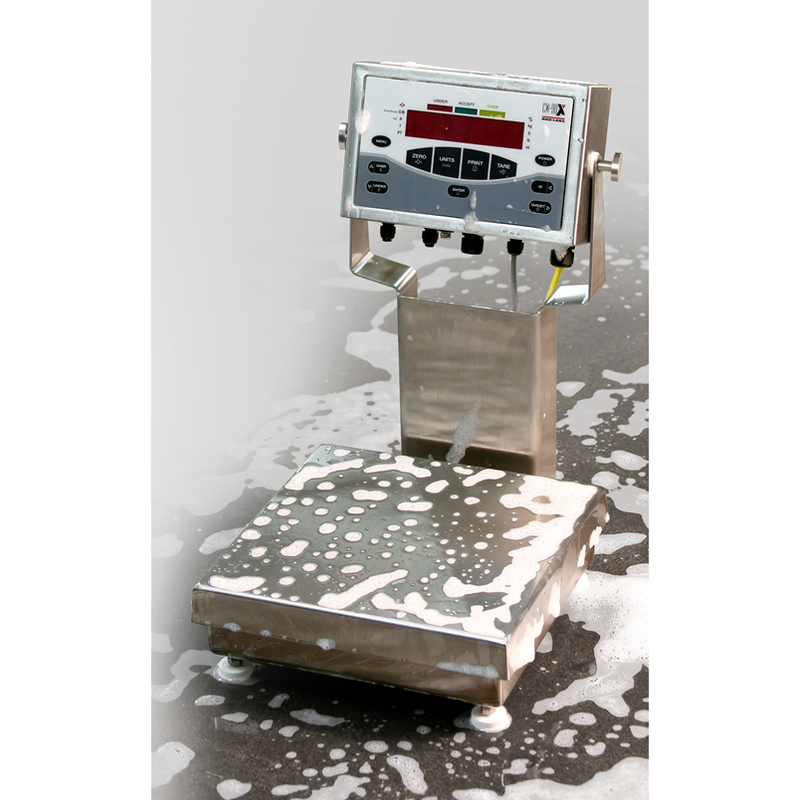

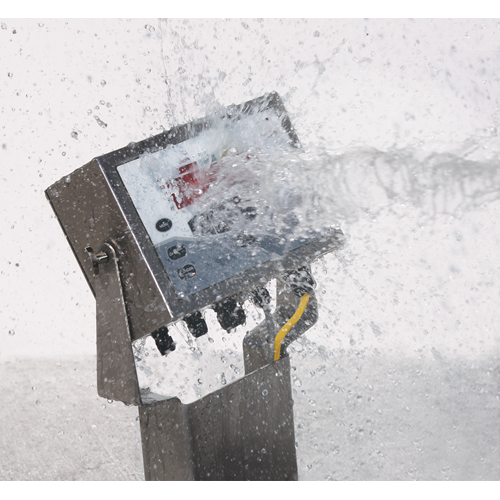

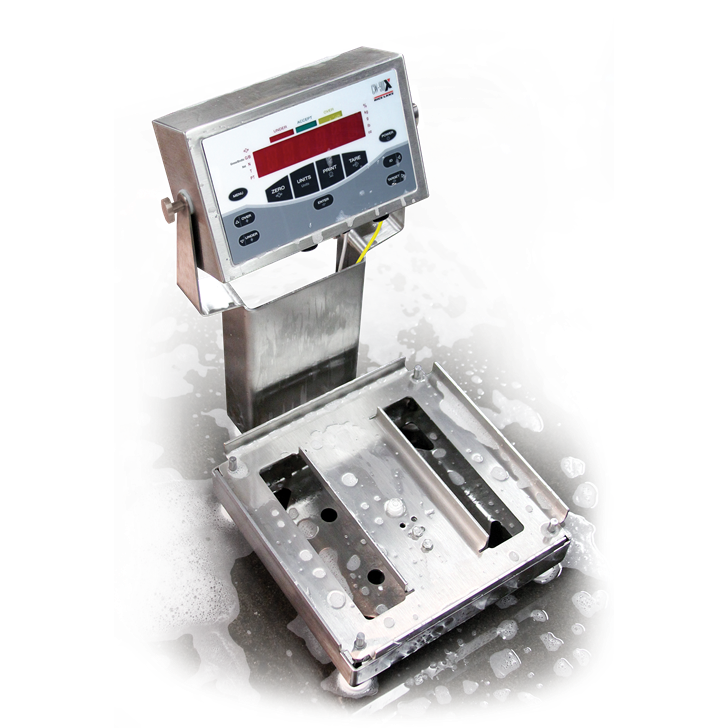

Engineered for hygienic and high-pressure washdown environments, the CW-90X Over/Under Checkweigher is a stainless steel powerhouse built to thrive in the most demanding food and chemical processing applications. With IP69K ingress protection, the CW-90X ensures maximum resistance against water, dust, and harsh cleaning protocols.

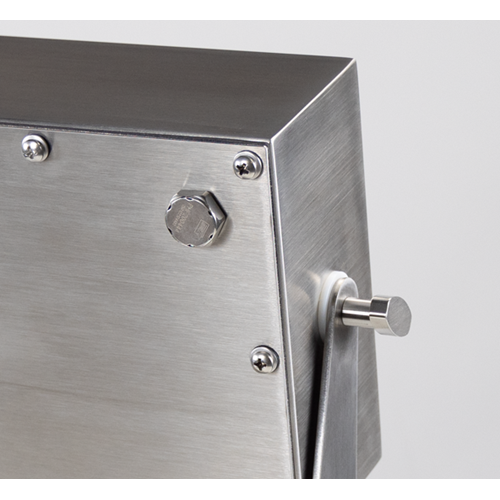

Its hermetically sealed stainless steel load cell and solid 304 stainless steel frame make it a reliable choice for HACCP-regulated operations. The integrated rigid piezo keypad resists contaminants, liquids, and even knife-point contact—making it perfect for food plants and wet industrial areas.
Built for speed and precision, the CW-90X offers up to 960 measurements per second and an intuitive user interface with programmable over/under lights. With features like audit trail tracking, data storage for 50 products, and configurable print formats, it delivers exceptional value to production managers, QA teams, and operators alike.
CW-90X Indicator Specifications
| Specification |
Details |
| Power Supply |
115/230 VAC, 50/60 Hz |
| Power Consumption |
8 W (1.5 A at 115 VAC / 0.75 A at 230 VAC) |
| Measurement Rate |
960 to 7.5 readings per second (selectable) |
| Linearity |
±0.01% full scale |
| Display |
0.8 in, 6-digit, high-intensity red LED |
| Keypad |
Rigid Piezo, knife-point resistant |
| Memory |
Stores up to 50 product IDs |
| Digital I/O |
Four configurable CPU board channels |
| Ports |
Two RS-232, optional USB, Ethernet, or fiber optic |
| Protection |
RFI, EMI, ESD shielded |
| Ingress Rating |
IP69K |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Approvals |
NTEP, Measurement Canada, CE, OIML, cULus |
CW-90X Scale Base Specifications
| Component |
Details |
| Material |
304L stainless steel (Ra=45 ± 10 finish) |
| Load Cell |
Hermetically sealed stainless steel, IP69K rated |
| Overload Protection |
Five-point design |
| Resolution |
Display: 100,000 divisions |
| Compliance |
HACCP, NSF Certified |
| Approvals |
NTEP 95-072, Class III 5,000 d; Measurement Canada AM-5082 |
Sanitize with confidence and weigh with precision.
The Rice Lake CW-90X Washdown Checkweigher is your go-to solution for cleanroom, food, and chemical industries requiring IP69K protection and HACCP compliance. Engineered for speed, safety, and sanitary conditions, this scale keeps your line running efficiently and your quality standards high.
Contact us from SellEton Scales today and upgrade your washdown weighing system with industry-leading durability and accuracy.
