SCT-4XD Belt Scale Integrator

Original price $1,495.00 - Original price $2,961.25
Original price
$1,495.00
$1,495.00 - $2,961.25
Current price $1,495.00

Key Highlights

  • Supports up to four load cells (single scale)

  • Dual encoder inputs for test weight automation

  • Micro-USB for configuration and backup via RL Tools

  • Fieldbus integration: PROFINET, EtherNet/IP, Modbus TCP/IP

  • Optional 1280 terminal with web-based control

  • Built-in web server for remote configuration on fieldbus models

  • NEMA 4X enclosure for rugged industrial environments

  • Diagnostic and real-time calibration capabilities

  • Ideal for belt scale and solid flow metering

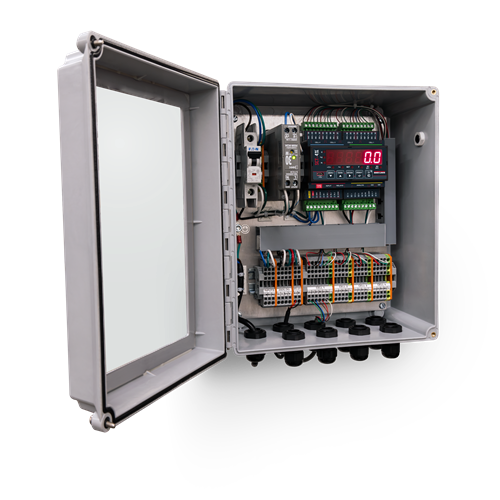

The SCT-4XD Belt Scale Integrator is a compact, high-speed weight processing unit designed to deliver high-resolution belt scale control in industrial environments. Capable of managing up to four load cells on one scale, this integrator is equipped with dual encoder support for test weight automation and redundancy.

Its robust digital interface includes RS-232, RS-485, and a Micro-USB port for RL Tools configuration, diagnostics, and backup. In models with fieldbus support, a built-in web server allows complete remote configuration, making it easy to calibrate or troubleshoot from anywhere within the network.

The SCT-4XD is often paired with the 1280 HMI terminal for enhanced visualization, but can also operate standalone. It provides analog output, pulse inputs, and digital I/O to seamlessly integrate into automated processes.


Specifications

Feature Specification
Power 12 to 24 VDC
Power Consumption 5 W
Excitation Voltage 5 VDC, 120 mA (up to 16 × 350 ohm cells)
Analog Signal Input ±39 mV
Signal Sensitivity 0.3 μV/graduation minimum
Sample Rate Up to 2,600 Hz (single-channel)
Up to 100 Hz (four-channel)
Analog Output (Opt.) 16-bit isolated: 0–20 mA, 4–20 mA,
0–5 VDC, 0–10 VDC
Digital I/O 2 inputs (12/24 VDC), 2 outputs (150 mA)
Communication Ports RS-232, RS-485, USB Micro B
Pulse Input Dual inputs for redundancy
Display 6-digit red LED, 0.31 in (8 mm)
Keys Tactile membrane panel
Enclosure NEMA 4X (with included enclosure)
Weight 27 lb
Certifications CE-M EN 45501
Warranty One-year limited


Dimensions

Parameter Size
Overall Dimensions 10.5 × 6.26 × 12.5 in
(266 × 159 × 318 mm)
Mounting Tabs 8.0 × 13.12 in (203 × 333 mm)


Upgrade your belt scale systems with the SCT-4XD Integrator—built for high-speed, high-accuracy industrial weighing.

Request a quote today from SellEton Scales and enhance your process control with smart diagnostics, remote access, and rock-solid performance.
