External mount weigh frame design for easy installation
Minimal conveyor modifications required
Friction-free pivot supports for higher accuracy
Two-beam system for added structural stability
Compatible with most standard conveyors
Mounts easily using just four bolts
Powder-coated mild steel frame with optional galvanized or stainless steel versions
Ideal for medium to heavy capacity applications
Service-friendly design with accessible load cells
Accurate to within 0.5% to 1% under optimal conditions

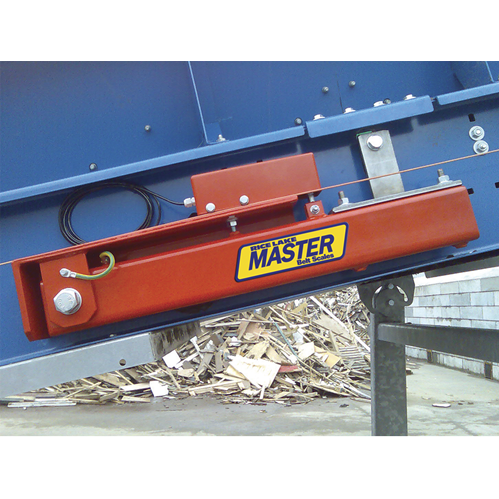

The Rice Lake 221DB Master™ Belt Scale Weigh Frame is engineered for high-performance belt conveyor weighing, offering a rugged, accurate, and easy-to-install solution for medium to heavy-capacity systems. Designed to be mounted on the outside of the conveyor, the 221DB requires minimal structural modification, simplifying the installation process.
This weigh frame uses a two-arm design, where the weighing roller (idler) is supported by load cell-equipped arms mounted to the side supports of the conveyor. These arms pivot freely, allowing for frictionless movement, which improves weighing precision and reduces wear.
Constructed from powder-coated mild steel, the frame also offers optional upgrades to galvanized or stainless steel for use in more demanding environments. With compatibility for a wide range of conveyor widths—from 18 to 72 inches—and support for belt speeds up to 800 feet per minute, this weigh frame is well-suited for most industrial operations.
| Feature | Specification |
|---|---|
| Conveyor Width | 18 to 72 in (457 to 1829 mm) |
| Capacity | Up to 3,300 tons per hour |
| Max Belt Speed | 800 ft/min (4 m/s) |
| Inclination | Maximum 25 degrees |
| Material | Powder-coated mild steel (optional SS/galv) |
| Accuracy | ±0.5% to ±1% |
| Load Cells | RL9018SS (50 kg, 100 kg, 200 kg options) |
| Junction Box | JB4SS Stainless Steel |
| Mounting | Four-bolt installation |
| Warranty | One-year limited |
| Use Case | Description |
|---|---|
| Aggregate & Quarrying | Medium to heavy load materials |
| Industrial Conveyors | Continuous process and batch applications |
| Bulk Material Handling | Weighing for flow control or inventory |
Upgrade your conveyor system with the Rice Lake 221DB Master™ Belt Scale Weigh Frame—a proven solution for high-capacity, accurate weighing in tough environments. Its easy installation, low maintenance design, and rugged performance make it the ideal choice for your bulk weighing needs.
Order now from SellEton Scales and bring precision to your process.
