Key Highlights
-
Designed for CEMA-C idlers and standard conveyor systems
-
Built with heavy-gauge steel for rugged industrial use
-
Equipped with four laterally opposed shear beam load cells
-
Processes up to 10,000 tons per hour
-
Supports belt speeds up to 1,200 ft/min
-
No moving parts for low maintenance
-
Requires minimal conveyor modifications
-
Accuracy: ±1% (single idler), ±0.5% (dual idler system)
-
Ideal for mining, blending, process control, utilities, and retrofits

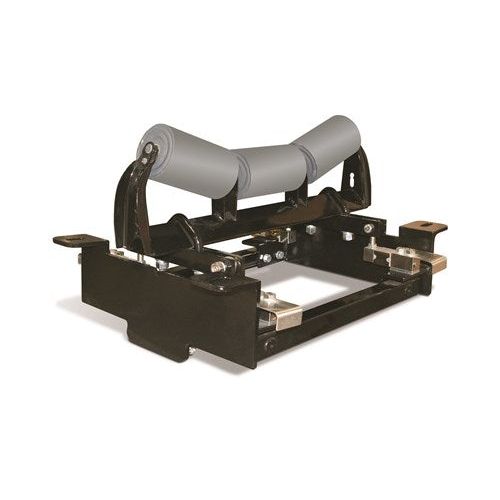

The Rice Lake BCi Belt Scale Weigh Frame is a heavy-duty, high-capacity belt scale system designed for continuous flow weighing in demanding environments. Built with durability and accuracy in mind, the BCi is engineered for use in industries such as mining, aggregates, process control, utilities, and loading applications (truck, rail, and barge).
The system includes four laterally opposed shear beam load cells integrated into a robust unitized idler frame. This configuration compensates for torque effects and belt speed variations, delivering consistent results under varying operational conditions. With a maximum throughput of 10,000 tons per hour and belt speeds up to 1,200 feet per minute, the BCi stands out in large-scale material handling operations.
The BCi can achieve system accuracy as high as ±0.5% when configured with two idlers and an auto-tensioning clean belt system. Installation is straightforward, requiring minimal conveyor modifications and no moving parts, keeping maintenance requirements low and system uptime high.
Specifications
Feature | Specification |
---|---|
Conveyor Widths | 18 to 72 in |
Max Capacity | 10,000 tons per hour |
Belt Speed | Up to 1,200 feet per minute |
Accuracy | ±1% (single idler), ±0.5% (dual idler) |
Load Cells | Four shear-type, laterally opposed |
Frame Material | Heavy-gauge mild or stainless steel |
Installation | Minimal conveyor modifications required |
Warranty | One-year limited |
Dimensions Table
Part # (Mild Steel) | A (in) | B (in) | Part # (Stainless Steel) | A (in) | B (in) |
---|---|---|---|---|---|
94968 | 24.00 | 27.50 | 110839 | 24.00 | 27.50 |
95208 | 30.00 | 33.50 | 105246 | 30.00 | 33.50 |
95209 | 36.00 | 39.50 | 110841 | 36.00 | 39.50 |
95210 | 42.00 | 45.50 | 110842 | 42.00 | 45.50 |
95211 | 48.00 | 51.50 | 110843 | 48.00 | 51.50 |
95212 | 54.00 | 57.50 | 110844 | 54.00 | 57.50 |
96717 | 60.00 | 63.50 | 110845 | 60.00 | 63.50 |
96718 | 66.00 | 69.50 | 110846 | 66.00 | 69.50 |
96719 | 72.00 | 75.50 | 110847 | 72.00 | 75.50 |
Upgrade your industrial conveyor system with the Rice Lake BCi Belt Scale Weigh Frame—a dependable, high-capacity solution built for speed, precision, and durability.
Request a quote today from SellEton Scales and take control of your material handling with confidence.
