Key Highlights
-
1280 terminal with integrated web server and touchscreen interface
-
Manages up to four load cells and dual encoders
-
SCT-4XD high-speed integrator with analog and digital I/O
-
Supports EtherNet/IP, PROFINET, and Modbus TCP/IP fieldbus
-
USB port for data backup, diagnostics, and configuration
-
Flexible belt or solid flow metering modes
-
Integrated SQLite database and embedded Linux OS
-
IP69K-rated universal enclosure for harsh industrial environments
-
Built for high-speed, high-precision material weighing

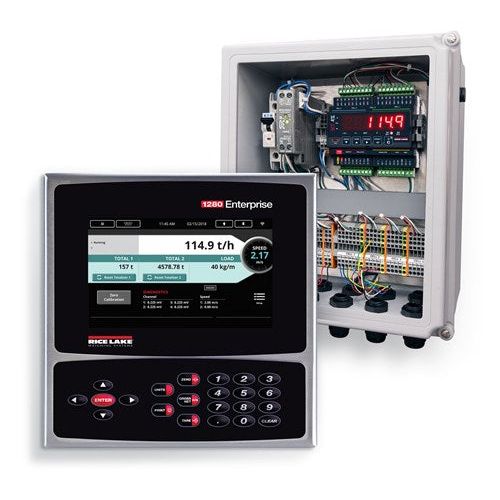

The 1280 HMI Belt Scale System with SCT-4XD Integrator delivers powerful performance, user-friendly operation, and precise process control for high-volume material handling environments. Designed by Rice Lake Weighing Systems, this integrated solution combines the rugged intelligence of the SCT-4XD integrator with the touchscreen-based 1280 HMI terminal, offering unparalleled ease of use and flexible data management.
At the core of the system, the SCT-4XD supports up to four load cells, dual pulse inputs for speed encoder redundancy, and analog or digital outputs. It features rapid sampling rates (up to 2,600 Hz) and supports industrial analog signals, fieldbus protocols, and high-accuracy analog outputs.
Complementing the SCT-4XD is the 1280 HMI terminal, featuring a 7-inch resistive touchscreen, built-in web server for remote connectivity, high-resolution signal processing, eight digital I/O channels, and optional expansion boards. With real-time process diagnostics and configuration menus, the system simplifies setup and maximizes operational uptime.
1280 HMI Terminal Specifications
| Feature |
Specification |
| Power Input |
100–240 VAC or 11–30 VDC |
| Power Consumption |
60 W |
| Load Cell Support |
Up to 16×350Ω or 32×700Ω load cells per A/D card |
| A/D Sample Rate |
7.5 to 960 Hz |
| Resolution (Internal/Display) |
8,000,000 / 1,000,000 |
| Analog Input Range |
-60 mV to +60 mV |
| Communication Ports |
RS-232, RS-422/485, USB 2.0, Ethernet (wired & Wi-Fi) |
| Display |
7" 800×480 pixel, 500 or 1,000 NIT |
| Material/Rating |
IP69K, Universal Enclosure |
| Operating Temperature |
-4 °F to 131 °F (-20 °C to 55 °C) |
| Warranty |
Two-year limited |
1280 Universal Enclosure Dimensions
| Label |
Size (in) |
Size (mm) |
| A |
10.86 |
276 |
| B |
9.00 |
229 |
| C |
9.24 |
235 |
| D |
4.97 |
126 |
| E |
9.00 |
229 |
| F |
12.50 |
318 |
| G |
5.25 |
133 |
SCT-4XD Integrator Specifications
| Feature |
Specification |
| Power Input |
12 to 24 VDC |
| Power Consumption |
5 W |
| Excitation Voltage |
5 VDC, 120 mA |
| Load Cell Capacity |
Up to 16×350Ω |
| A/D Sample Rate |
Up to 2,600 Hz (single channel), 100 Hz (4 channels) |
| Analog Output |
0-20 mA, 4-20 mA, 0-5 VDC, 0-10 VDC |
| Digital I/O |
2 inputs (12/24 VDC), 2 outputs (150 mA) |
| Communication |
RS-232, RS-485, USB Micro B |
| Display |
6-digit red LED, 0.31 in (8 mm) |
| Enclosure Rating |
NEMA 4X (when using included enclosure) |
| Warranty |
One-year limited |
SCT-4XD Dimensions
| Label |
Size (in) |
Size (mm) |
| A |
10.50 |
267 |
| B |
8.00 |
203 |
| C |
13.12 |
333 |
| D |
12.50 |
318 |
| E |
6.26 |
159 |
Empower your material weighing system with the advanced 1280 HMI Belt Scale and SCT-4XD Integrator—a robust, network-ready, and high-speed solution for industrial operations.
