BCi Belt Scale Weigh Frame

Original price $109.25 - Original price $6,095.00
Original price
$3,220.00
$109.25 - $6,095.00
Current price $3,220.00

Key Highlights

  • Designed for CEMA-C idlers and standard conveyor systems

  • Built with heavy-gauge steel for rugged industrial use

  • Equipped with four laterally opposed shear beam load cells

  • Processes up to 10,000 tons per hour

  • Supports belt speeds up to 1,200 ft/min

  • No moving parts for low maintenance

  • Requires minimal conveyor modifications

  • Accuracy: ±1% (single idler), ±0.5% (dual idler system)

  • Ideal for mining, blending, process control, utilities, and retrofits

The Rice Lake BCi Belt Scale Weigh Frame is a heavy-duty, high-capacity belt scale system designed for continuous flow weighing in demanding environments. Built with durability and accuracy in mind, the BCi is engineered for use in industries such as mining, aggregates, process control, utilities, and loading applications (truck, rail, and barge).

The system includes four laterally opposed shear beam load cells integrated into a robust unitized idler frame. This configuration compensates for torque effects and belt speed variations, delivering consistent results under varying operational conditions. With a maximum throughput of 10,000 tons per hour and belt speeds up to 1,200 feet per minute, the BCi stands out in large-scale material handling operations.

The BCi can achieve system accuracy as high as ±0.5% when configured with two idlers and an auto-tensioning clean belt system. Installation is straightforward, requiring minimal conveyor modifications and no moving parts, keeping maintenance requirements low and system uptime high.

Specifications

Feature Specification
Conveyor Widths 18 to 72 in
Max Capacity 10,000 tons per hour
Belt Speed Up to 1,200 feet per minute
Accuracy ±1% (single idler), ±0.5% (dual idler)
Load Cells Four shear-type, laterally opposed
Frame Material Heavy-gauge mild or stainless steel
Installation Minimal conveyor modifications required
Warranty One-year limited

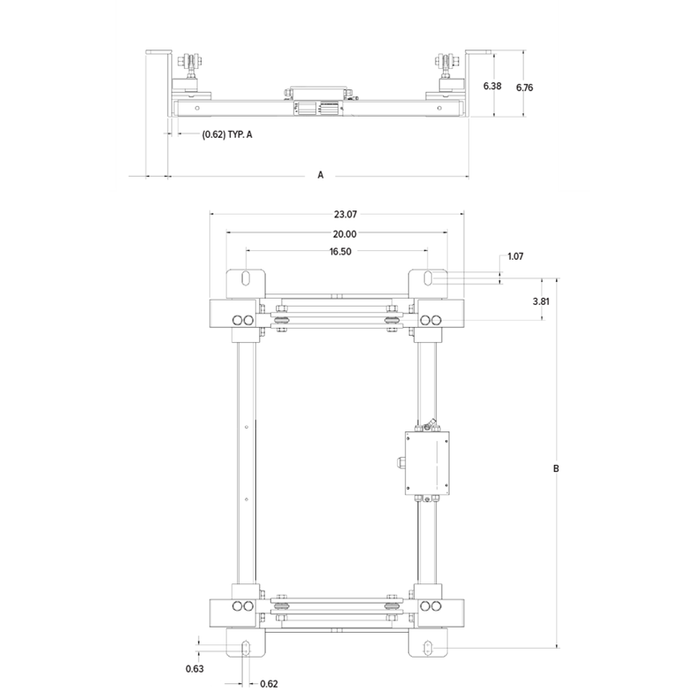

Dimensions Table

Part # (Mild Steel) A (in) B (in) Part # (Stainless Steel) A (in) B (in)
94968 24.00 27.50 110839 24.00 27.50
95208 30.00 33.50 105246 30.00 33.50
95209 36.00 39.50 110841 36.00 39.50
95210 42.00 45.50 110842 42.00 45.50
95211 48.00 51.50 110843 48.00 51.50
95212 54.00 57.50 110844 54.00 57.50
96717 60.00 63.50 110845 60.00 63.50
96718 66.00 69.50 110846 66.00 69.50
96719 72.00 75.50 110847 72.00 75.50

Upgrade your industrial conveyor system with the Rice Lake BCi Belt Scale Weigh Frame—a dependable, high-capacity solution built for speed, precision, and durability.
Request a quote today from SellEton Scales and take control of your material handling with confidence.
