1280 HMI Belt Scale System with SCT-4XD Integrator

Original price $6,434.25 - Original price $6,491.75
Original price
$6,434.25
$6,434.25 - $6,491.75
Current price $6,434.25

Key Highlights

  • Integrated HMI and high-speed belt scale system

  • SCT-4XD manages up to four load cells (one scale)

  • Dual encoders for accurate belt speed and redundancy

  • Web-based diagnostics via 1280 built-in web server

  • Remote configuration and system calibration tools

  • Analog and digital outputs for real-time data control

  • Optional connectivity: EtherNet/IP, PROFINET, Modbus TCP/IP

  • Universal IP69K enclosure for harsh industrial conditions

  • Multi-mode support: belt or solid flow metering


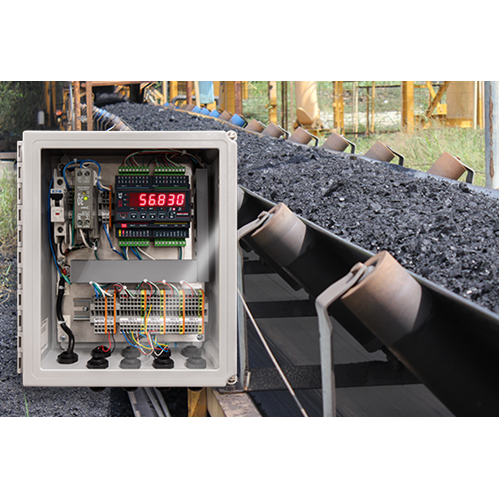

The 1280 HMI Belt Scale System with SCT-4XD Integrator is a robust solution designed for high-accuracy belt weighing and material flow control. Combining the SCT-4XD integrator with the advanced 1280 touchscreen terminal, this system is ideal for complex industrial environments demanding precision, reliability, and remote accessibility.

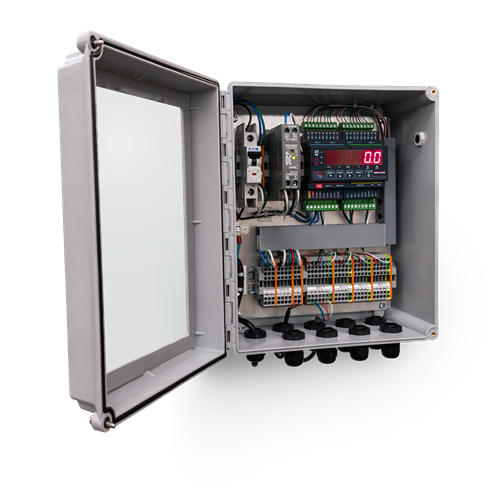

The SCT-4XD is a high-speed integrator capable of reading from up to four load cells and supporting dual speed encoders for redundancy. It offers fast sampling (up to 2,600 Hz) and supports analog outputs, pulse inputs, and digital I/O for seamless integration into automated systems.

Paired with the SCT-4XD, the 1280 terminal provides an intuitive seven-inch color display, a web server for remote access, and an embedded Linux OS for flexibility and reliability. The system supports belt or solid flow metering modes, making it suitable for various industrial weighing and process control applications. The terminal includes real-time diagnostics, an onboard database, and expansion options for I/O and communication protocols like Modbus, PROFINET, or EtherNet/IP.

Built with an IP69K-rated universal enclosure, this system stands up to harsh washdown or dusty environments commonly found in aggregate, mining, food processing, or bulk material handling operations.


Specifications

1280 HMI Terminal

Feature Specification
Power Input 100–240 VAC / 11–30 VDC
Power Consumption 60 W
Excitation Voltage 10 VDC ±5 VDC
Load Cell Support 16 × 350 ohm or 32 × 700 ohm per A/D card
Analog Input Range -60 mV to +60 mV
Sample Rate 7.5 to 960 Hz (selectable)
Resolution (Internal) 8,000,000 counts
Display 7” 800 × 480 pixel, 500 or 1,000 NIT
Communication Ports RS-232, RS-422/485, USB, Ethernet (Wired/WiFi)
Storage & OS Embedded Linux, 8 GB eMMC, 460 MB SQLite
Digital I/O 8 channels onboard (expandable to 24)
Protection Rating IP69K
Weight 11 lb (4.9 kg)
Operating Temp. -4 °F to 131 °F (-20 °C to 55 °C)
Warranty Two-year limited

SCT-4XD Integrator

Feature Specification
Power Input 12 to 24 VDC
Power Consumption 5 W
Excitation Voltage 5 VDC, 120 mA (supports 16 × 350 ohm cells)
Analog Input Range ±39 mV
Sample Rate Up to 2,600 Hz (single channel)
Analog Output (Optional) Isolated, 16-bit; 0-20 mA or 0-10 VDC
Digital I/O 2 in / 2 out
Pulse Input Dual encoder inputs
Display 6-digit red LED (0.31 in)
Enclosure Rating NEMA 4X
Dimensions (L×W×H) 10.5 × 6.26 × 12.5 in (266 × 159 × 318 mm)
Weight 27 lb
Warranty One-year limited


Dimensions

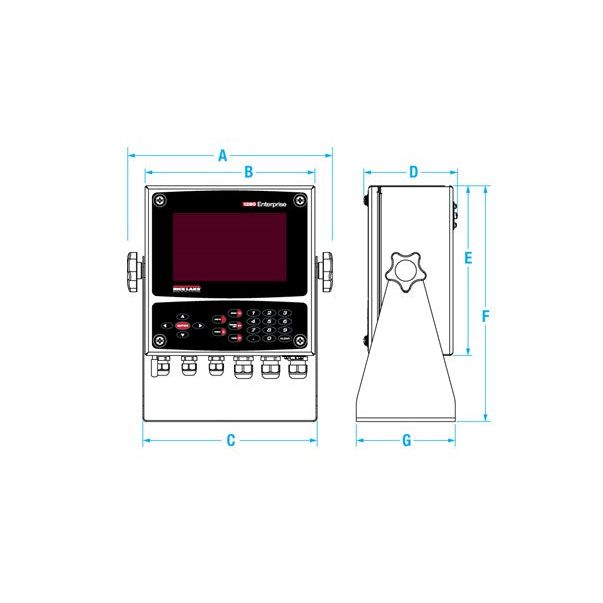

1280 Universal Enclosure

Label Dimension
A 10.86 in (276 mm)
B 9.00 in (229 mm)
C 9.24 in (235 mm)
D 4.97 in (126 mm)
E 9.00 in (229 mm)
F 12.50 in (318 mm)
G 5.25 in (133 mm)

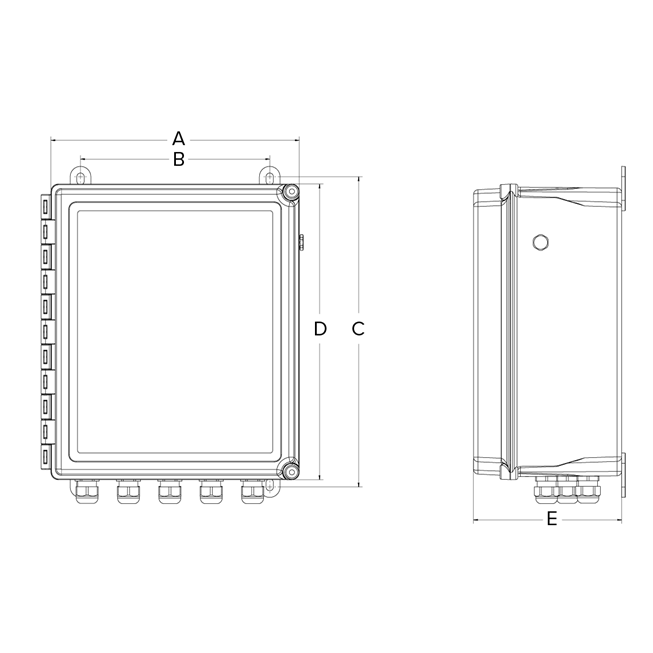

SCT-4XD Mounting Tabs

Label Dimension
A 10.50 in (267 mm)
B 8.00 in (203 mm)
C 13.12 in (333 mm)
D 12.50 in (318 mm)
E 6.26 in (159 mm)


Maximize your belt weighing accuracy and simplify system diagnostics with the 1280 HMI Belt Scale System and SCT-4XD Integrator. Ideal for industries demanding high-speed, high-precision material flow control, this system offers intelligent connectivity and robust construction.
