Key Highlights
-
ATEX and FM Certified for hazardous Class I, Division 1 environments
-
Intrinsically safe design with optical data output for safe communication
-
Up to 200 hours of battery life using approved AA alkaline batteries
-
Multiple weighing modes: Counting, Percentage, and Specific Gravity
-
Auto power off feature to conserve battery
-
Compact, portable, and lightweight (3.5 lb)
-
LCD display with backlight for clear readability
-
Two-year limited warranty

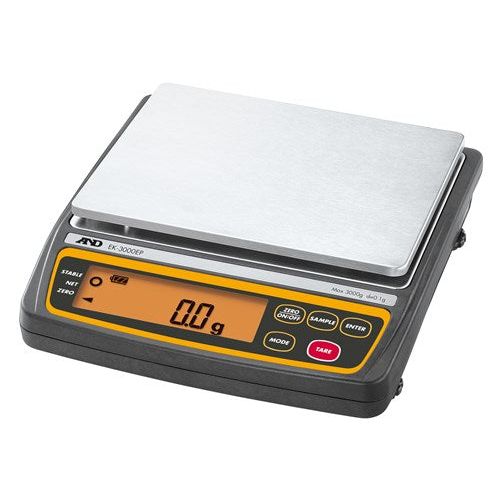

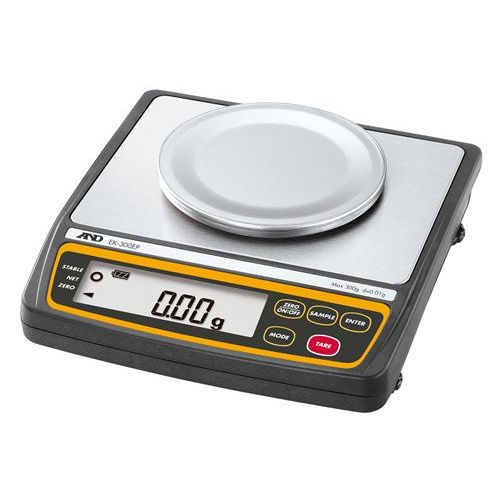

The EK-AEP Series by A&D Weighing offers a powerful solution for precision weighing in explosive or hazardous environments. Engineered with intrinsic safety and ATEX/FM approvals, this compact balance can safely operate in Class I, Division 1, Groups C and D zones where flammable vapors or gases are present.
Whether you're working in chemical plants, oil refineries, or pharmaceutical manufacturing, the EK-AEP balances offer the reliability and safety you need without compromising performance. With fast stabilization under 2 seconds and operating modes such as counting, percentage weighing, and specific gravity, it’s well-equipped for a range of applications.
These balances are powered by four AA batteries, specifically tested for safety compliance, and can run for up to 200 hours with backlight off. The optical data output ensures safe, non-electrical data communication from hazardous zones, while the compact footprint makes it easy to integrate into confined spaces or mobile setups.
General Specifications
Feature | Details |
---|---|
Weighing Units | Carat, pennyweight, troy ounce, newton, decimal ounce, decimal pound |
Operating Modes | Counting, percentage, specific gravity |
Display Type | LCD with backlight |
Power Supply | Four AA batteries (Duracell MN1500, Energizer E91, Panasonic LR6 only) |
Battery Life | Up to 200 hours (backlight off) |
Stabilization Time | < 2 seconds |
Calibration | External weight required per model |
Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
Weight | Approx. 3.5 lb (1.5 kg) |
Approvals | ATEX, FM (cFMus) |
Warranty | Two-year limited |
Return Policy | A&D standard return policy – restocking fees may apply |
Model Comparison Table
Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions (in) | Part # |
---|---|---|---|---|---|---|---|
EK-300AEP | 300 g | 0.01 g | 0.01 g | ±0.02 g | Ø 4.33 in (110 mm) | 7.5 × 8.6 × 2.2 | 199565 |
EK-3000AEP | 3000 g | 0.1 g | 0.1 g | ±0.2 g | 5.24 × 6.69 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 | 199566 |
EK-12KAEP | 12000 g | 1 g | 1 g | ±1 g | 5.24 × 6.69 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 | 199567 |
If you operate in hazardous or explosive environments, the EK-AEP Series Intrinsically Safe Compact Balance is a must-have for safe, accurate, and compliant weighing. With its trusted certifications, rugged build, and battery-powered portability, this balance is built to meet the strictest industrial and safety standards.
Order now EK-AEP model today from SellEton Scales and experience safe precision in every measurement.
