Key Highlights:
-
Sends alerts for overweight baggage to improve safety and compliance
-
Supports both customer and agent displays (dual display support)
-
Five-button keypad for ticket agents with accumulation and print functions
-
Panel-mounted stainless steel LCD display with large digits
-
Multiple connectivity options: Serial, USB, Ethernet, Wi-Fi, and Bluetooth®
-
Compatible with all Rice Lake baggage scale systems
-
NTEP and Measurement Canada approved

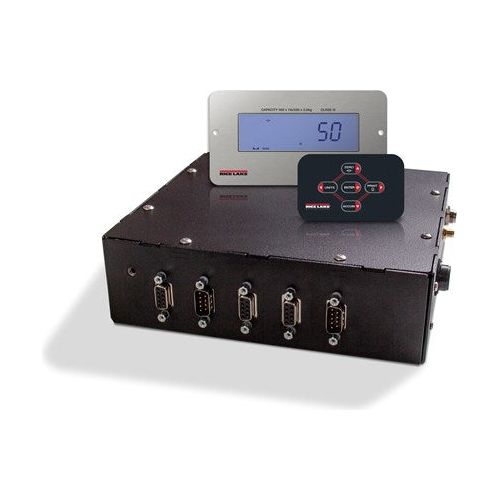

The Tracer® AV2 from Rice Lake Weighing Systems is a high-performance baggage weighing solution for airline check-in counters that demand speed, accuracy, and revenue protection. This system offers a customer display, agent display, CPU module, and a five-button keypad to simplify operations while alerting agents when bags exceed preset weight limits.
Designed with airline safety and efficiency in mind, the Tracer AV2 sends a clear visual alert to the operator when baggage is overweight—helping reduce risk, avoid delays, and capture potential overweight baggage fees. Its robust stainless steel LCD display offers clear 0.8 in digits, and the modular design allows mounting flexibility across various counter setups.
The AV2 also provides versatile connectivity, including Ethernet, serial port, USB, Wi-Fi, and Bluetooth®, making it ideal for seamless integration with baggage handling systems and third-party devices.
Paired with Rice Lake's baggage scale platforms, the Tracer AV2 delivers a complete, scalable, and dependable check-in solution that’s fully certified for legal trade.
Tracer AV2 Specifications
| Feature |
Description |
| Power Input |
115 to 230 VAC, 50/60 Hz |
| Power Consumption |
6 W |
| Excitation Voltage |
5 VDC, supports 8 × 350 ohm load cells |
| Signal Input Range |
-0.5 to 4.5 mV/V |
| Signal Sensitivity |
1 μV per graduation recommended |
| Sample Rate |
6.25 to 120 Hz (software selectable) |
| Resolution |
Internal: 8,000,000 counts; Display: 1,000,000 |
| Linearity |
Within 0.01% of full scale |
| Annunciators |
lb/kg |
| Display |
7-digit LCD, stainless steel, 0.8 in digits |
| Buttons |
Zero, Units, Accum, Print, Enter |
| Connectivity |
Serial, Ethernet TCP/IP, USB, Wi-Fi, Bluetooth® |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Weight |
5.25 lb |
| Warranty |
Two-year limited |
| Certifications |
NTEP 21-015, Class III/IIIL, 10,000d; MC AM-6168C; cULus |
Tracer AV2 Component Dimensions
| Component |
|
Dimensions (inches) |
Notes |

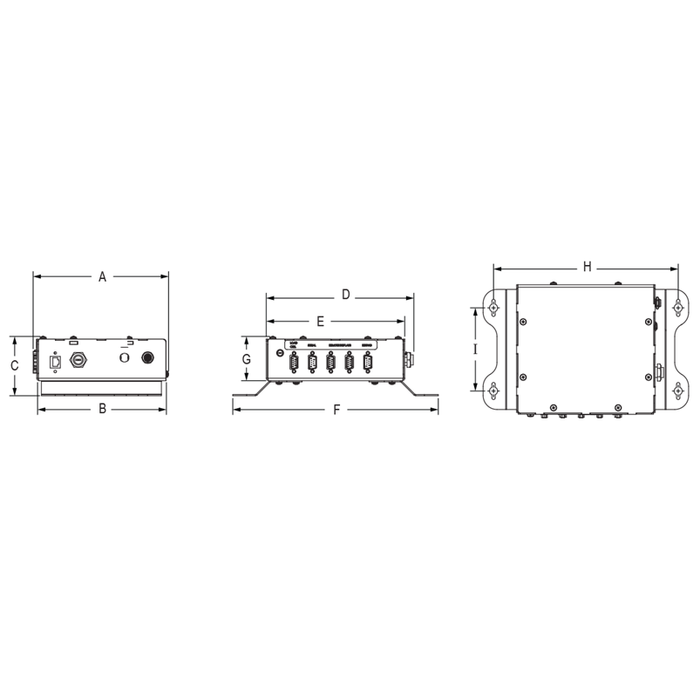

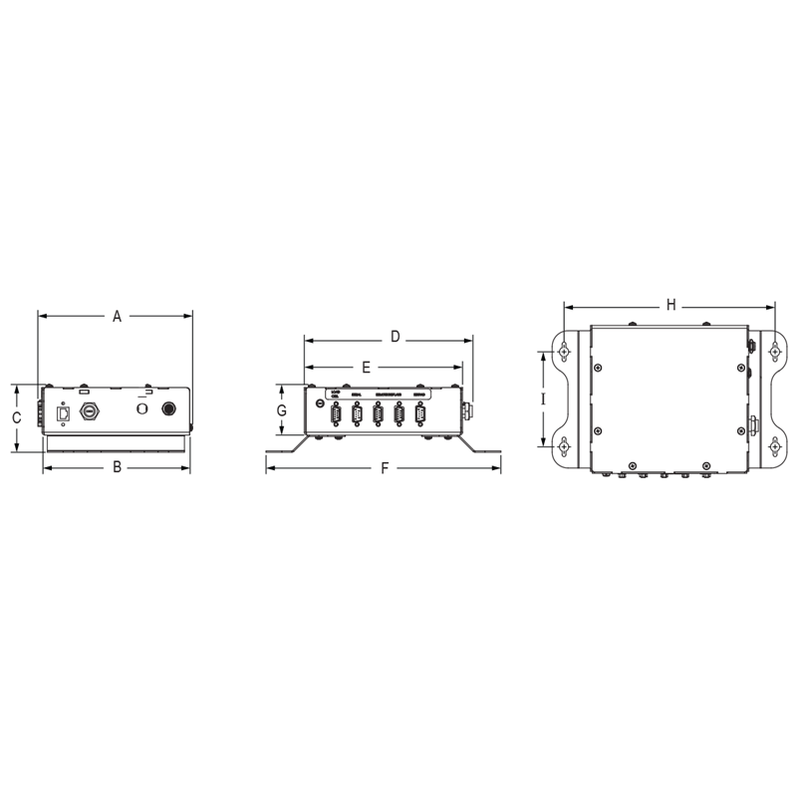

| CPU Enclosure |
|
7.5 × 7.0 × 2.25 (without feet) |
11.13 × 7.0 × 3.06 (with feet) |

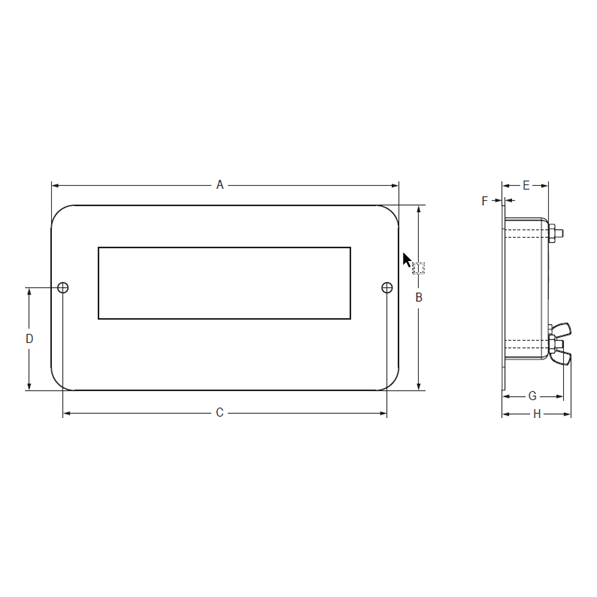

| Panel Mount Display |
|
7.5 × 4.0 × 1.49 |
0.8 in digit height |

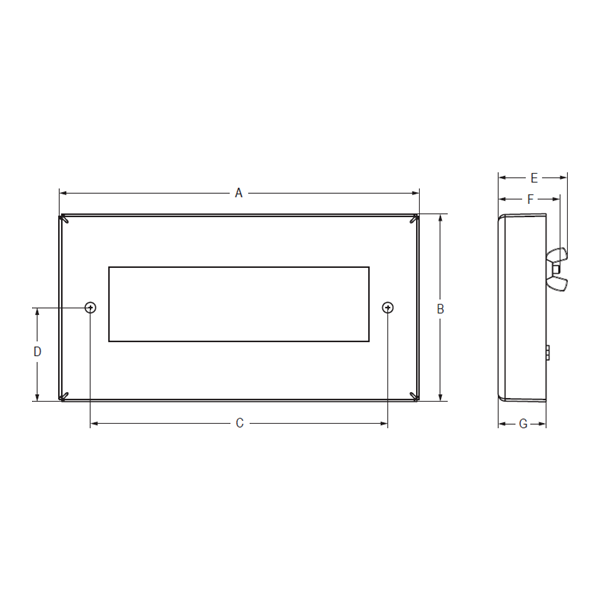

| External Display |
|
7.5 × 3.9 × 1.44 |
Stainless steel |

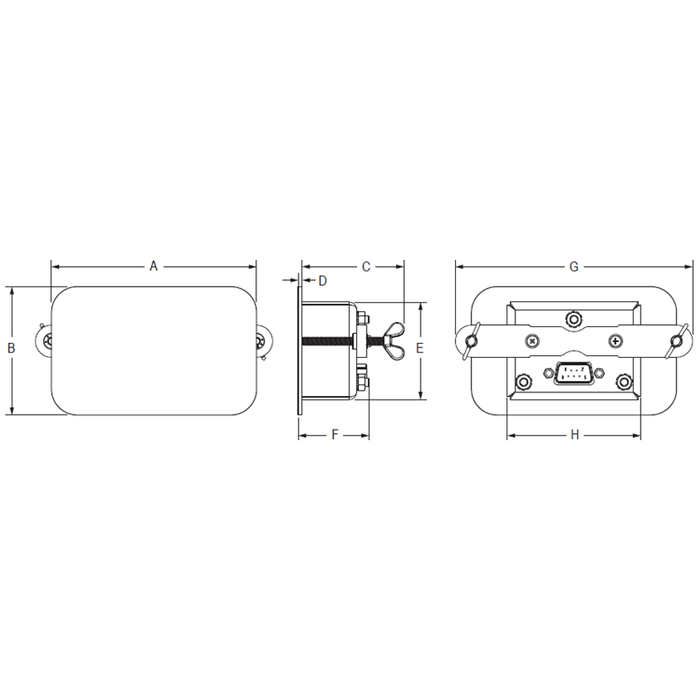

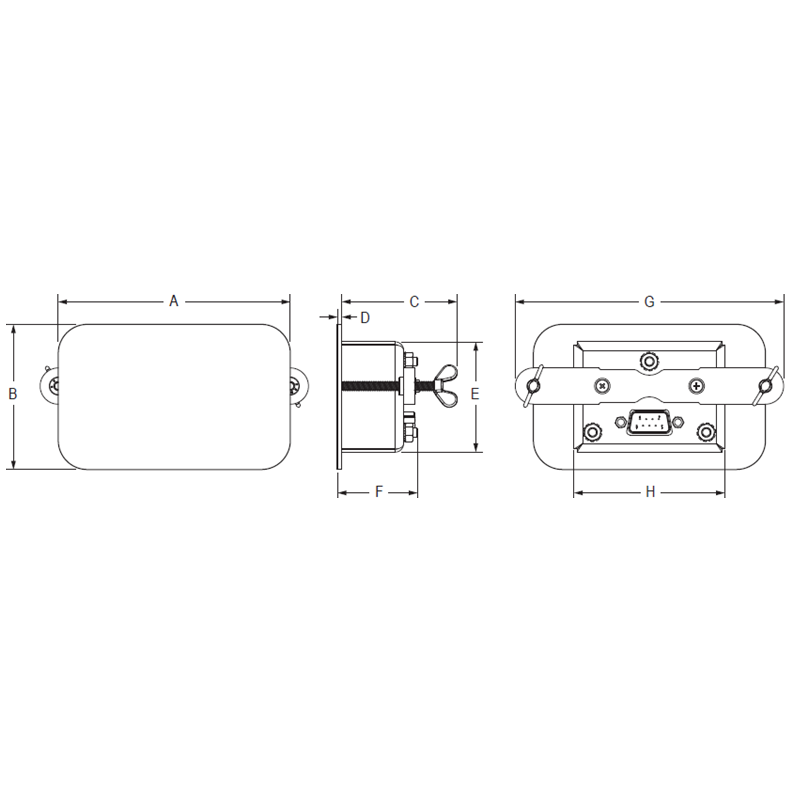

| Panel Keypad |
|
4.0 × 2.5 × 2.1 |
Five buttons |
Note: 1 inch = 25.4 mm
For airports aiming to modernize baggage operations, the Tracer AV2 is an essential tool to enhance check-in speed, ensure regulatory compliance, and recapture lost baggage revenue. Contact us now at SellEton Scales to get a quote or integrate this solution into your check-in counters.
