Key Highlights
-
Comparator Output (Hi/Ok/Lo): Enables both manual and automated operations with buzzer alerts.
-
GLP/GMP Compliant: Outputs time, date, and calibration data for traceability.
-
Breeze Break: Provides maximum accuracy and fastest response in sensitive environments.
-
Super Hybrid Sensor (SHS) Technology: Delivers fast stabilization and reliable precision.
-
Calibration Made Simple: Includes a standard 50 g calibration weight for accuracy.
-
Data Memory Function: Stores weighing, calibration, counting, and comparator values.
-
Multi-Weighing Units: Supports milligram, ounce, carat, pennyweight, troy ounce, and grain.
-
Time and Date Functionality: Ensures complete GLP-compliant reporting.
-
Connectivity: RS-232 interface with WinCT® communication software for PC or printer integration.
-
Compact Design: Small footprint with remote display unit and a 2-meter connection cable.

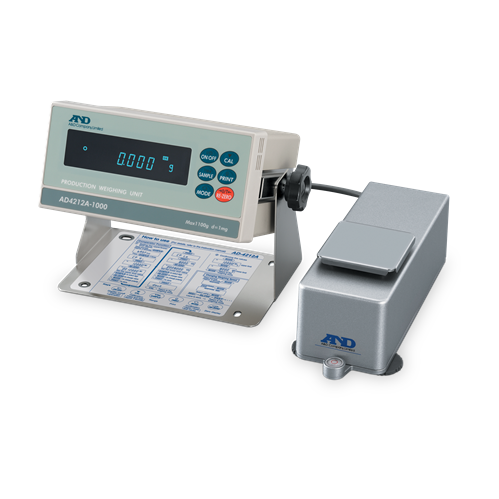

The A&D AD-4212A Series Analytical Balance offers precision measurement with advanced technology for research, laboratory, and industrial applications. Powered by Super Hybrid Sensor (SHS) technology, it ensures exceptionally fast stabilization with precise results in just 1.3 seconds.
Equipped with a Hi/Ok/Lo comparator output and buzzer function, this balance simplifies both manual and automated weighing processes. The integrated breeze break reduces environmental interference, ensuring maximum accuracy even in challenging conditions.
The AD-4212A Series includes a standard calibration weight, supports GLP/GMP-compliant reporting, and provides data memory for weighing, calibration, and counting records. With its compact, modular design, including a separate display connected by a 2-meter cable, it fits seamlessly into laboratory setups where space efficiency and accuracy are paramount.
Specifications
| Feature |
Specification |
| Weighing Units |
Milligram, ounce, carat, pennyweight, troy ounce, grain (see manual for full listing) |
| Operating Modes |
Counting, percentage |
| Power |
120 VAC adapter, 11 VA |
| Stabilization Time |
AD-4212A-100, AD-4212B-102: ~1.3 sec (0–30 g and 30–110 g) |
| Calibration Weight |
50 g |
| I/O Interface – Comparator Output |
3-level (Hi/Ok/Lo) with buzzer |
| I/O Interface – External Contact Input |
Re-zero and print |
| Connection Cable |
Approx. 2 m (between weighing and display units) |
| Operating Temperature |
41 °F to 104 °F (5 °C to 40 °C) |
| Humidity |
≤ 85% RH, non-condensing |
| Net Weight |
8.5 lb (4 kg) |
| Warranty |
Five-year limited |
| Return Policy |
A&D Weighing standard policy (restock fee may apply) |
Models and Dimensions
| Model |
Capacity |
Readability |
Repeatability |
Linearity |
Pan Size |
Dimensions (W × D × H) |
Part # |
| AD-4212A-100 |
110 g |
0.1 mg |
0.15 mg |
±0.3 mg |
2 × 2 in (50 × 50 mm) |
3.2 × 9.1 × 3.5 in (80 × 230 × 90 mm) |
97654 |
| AD-4212B-102 |
110 g |
0.01 mg |
0.15 mg |
±0.3 mg |
2 × 2 in (50 × 50 mm) |
3.2 × 9.1 × 3.5 in (80 × 230 × 90 mm) |
102925 |
| AD-4212B-201 |
210 g |
0.1 mg |
1 mg |
±2 mg |
2 × 2 in (50 × 50 mm) |
3.2 × 9.1 × 3.5 in (80 × 230 × 90 mm) |
102926 |
| AD-4212B-301 |
310 g |
0.1 mg |
1 mg |
±2 mg |
2 × 2 in (50 × 50 mm) |
3.2 × 9.1 × 3.5 in (80 × 230 × 90 mm) |
102927 |
Achieve uncompromising accuracy and speed with the A&D AD-4212A Series Analytical Balance.
Contact us today for pricing, availability, and expert application support.
