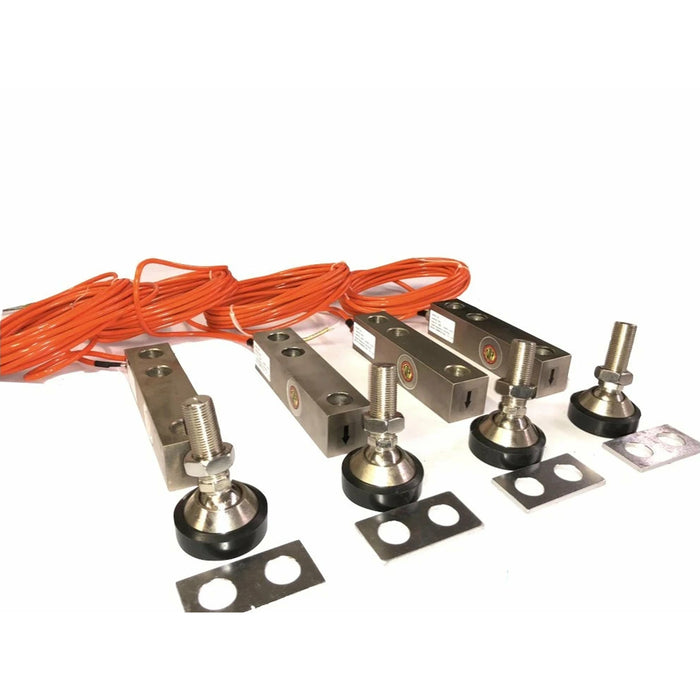

SellEton GX-1-5k lb (Large Envelope) NTEP Shear Beam Load Cell Sensors for Platform Floor Scale with Feet & Spacers

SellEton is offering its Legal For Trade load cells (NTEP Approved). If you are using an NTEP floor scale, this is the type of load cell you must use in order for the scale to be NTEP approved.

Specifications:

• Rated Output (mV/V): 3.00±0.015
• Nonlinearity: ±0.02%FS
• Hysteresis: ±0.02%FS
• Repeatability: ±0.01%FS
• Creep (30 minutes): ±0.02%FS
• Zero Balance: ±1.00%FS
• Temperature Effect on Zero: ±0.02%FS/10°C
• Temperature Effect on Output: ±0.02%FS/10°C
• Input Resistance: 385±5Ω
• Output Resistance: 350±3Ω
• Insulation Resistance: ≥5000MΩ
• Excitation Voltage: 10V(DC/AC)
• Compensated Temperature Range: -10°C ~ 50°C
• Operating Temperature Range: -20°C ~ 60°C
• Safe Overload: 120%FS
• Cable: 5.4x6 m
