SL-818-5K-6R NTEP Shear Beam Load Cell Kit with 6" Rigid Feet (1/2"-20 UNF)

The SL-818-5K-6R kit is a set of four NTEP certified 5,000 lb shear beam load cells with 6 in rigid feet. Use it to build or repair floor and platform scales, tank and hopper scales, and animal scales up to 10,000 lb.

Key features

• NTEP certified. Certificate CC 25-075.
• Four cells in one kit. Four 5,000 lb small envelope shear beam load cells.
• Feet included. 6 in diameter rigid feet, 1/2 in-20 UNF thread.
• Alloy or stainless. Choose stainless steel for outdoor or high moisture areas.
• Accurate. ±0.02% of full scale total error.

Which kit do I need?

Pick alloy steel or stainless steel load cells in the drop down above. The finished scale can be calibrated to 1,000 lb x 0.2 lb, 2,500 lb x 0.5 lb, 5,000 lb x 1 lb or 10,000 lb x 1 lb.

Specifications

• Certification: NTEP CC 25-075
• Rated capacity: 5,000 lb per load cell
• Kit capacity: 10,000 lb with four load cells
• Rated output: 3.0 ±0.003 mV/V
• Total error: ±0.02% F.S.
• Creep (30 min): ±0.02% F.S.
• Input resistance: 385 ±10 Ω
• Output resistance: 351 ±2 Ω
• Excitation: 4 to 12 V DC recommended, 15 V DC maximum
• Safe overload: 150% F.S.
• Ultimate overload: 200% F.S.
• Operating temperature: 14 to 104 °F (-10 to 40 °C)
• Cable: 10 ft, 4-wire with shield
• Wire colors: Red +EXC, black -EXC, green +SIG, white -SIG
• Feet: 6 in diameter rigid, 1/2 in-20 UNF
• Material: Alloy steel or stainless steel

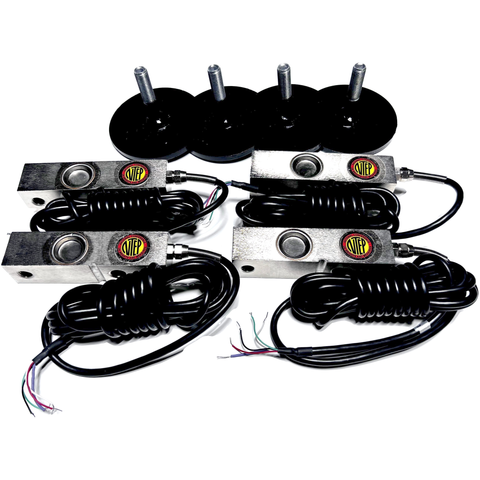

In the box

• Four small envelope shear beam load cells
• Four 6 in rigid feet

Upgrades and add-ons

• Junction box. An SL-JB junction box joins the four cells into one cable.
• Indicator. The SL-7510 or SL-7510-SS stainless steel indicator.

Note: outdoor and wet areas

For outdoor use, choose a stainless steel indicator, stainless steel load cells and a stainless steel junction box.
