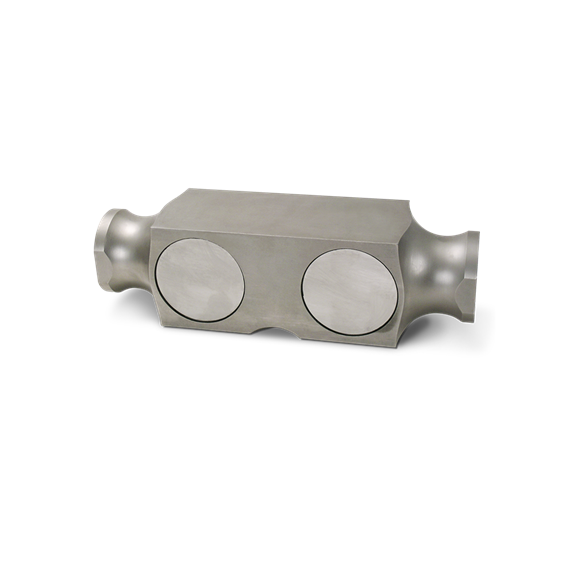

VPG Revere 9223 Stainless Steel Double-Ended Beam Load Cell

Key Features:

• High-Profile Compression Load Cell – Engineered for truck, tank, track, and hopper applications, ensuring high-precision weighing.
• Designed for Harsh Environments – Stainless steel construction provides superior durability and corrosion resistance in demanding industrial conditions.
• IP67 Environmental Protection – Sealed against moisture, dust, and contaminants, making it ideal for outdoor and heavy-duty weighing applications.
• Safe Overload & Sideload Protection – Handles 150% full-scale overload and 100% full-scale sideload, preventing performance degradation.
• High-Accuracy Electrical Performance – Delivers a full-scale output of 3.0 mV/V, with a combined error of 0.02% FS and high insulation resistance (5,000 megohm).
• Minimal Deflection for Stability – Deflection at capacity: 0.018 in (50,000 lb), 0.022 in (65,000 lb), 0.034 in (100,000 lb) ensures stable and precise measurements.
• Extra-Long Cable for Flexible Installation – Includes a 40 ft polyurethane-jacketed cable, allowing for secure and easy integration into large-scale weighing systems.
• Certified for Industrial & Legal Trade Use – NTEP and cFMus-approved, ensuring compliance with regulated weighing processes.

Available Capacities: 50,000 lb & 125,000 lb
Warranty: One-year limited

9223 Load Cell Specifications

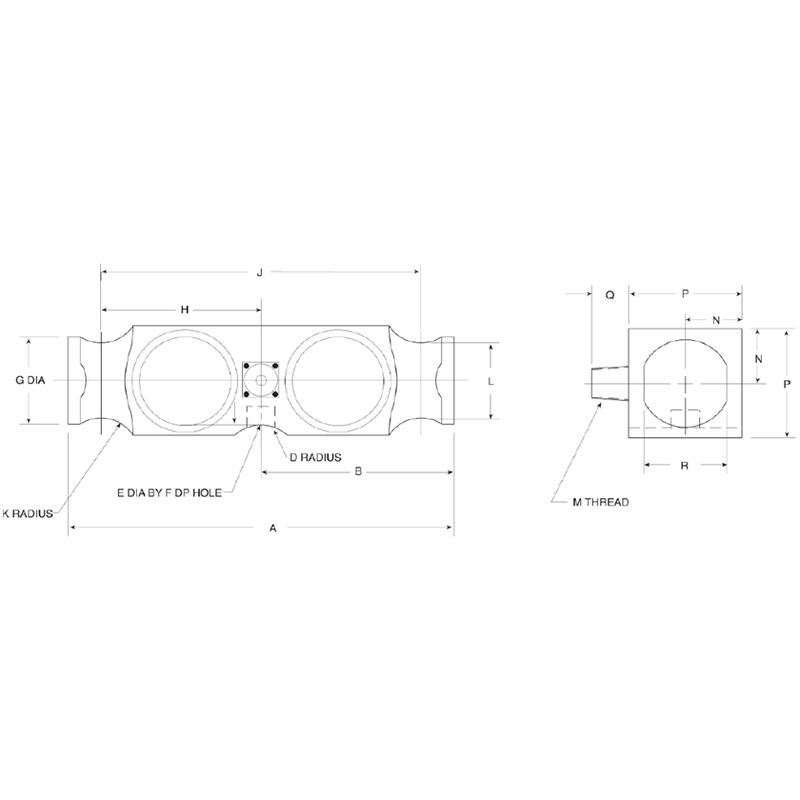

9223 Load Cell Dimensions (inches)

Enhance your industrial weighing system with the VPG Revere 9223 Load Cell. Order today for accuracy, durability, and superior performance!

Contact our team today to request pricing and confirm availability.
