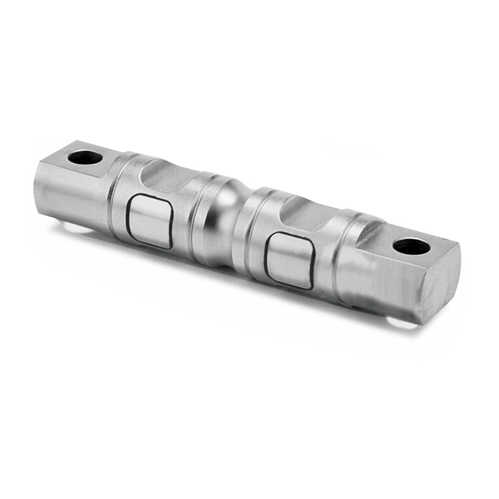

VPG® Revere 9103 Stainless Steel, Double-Ended Beam Load Cell

Key Features:

• Designed for Truck, Track, and Process Weighing – Ensures high accuracy and stability in industrial applications.
• Stainless Steel Construction – Provides exceptional durability and corrosion resistance, making it ideal for harsh environments.
• High Accuracy & Low Profile – Ensures precise measurements with minimal deflection.
• Tolerance to Non-Axial Loading – Redundant seal provides added durability, ensuring reliable performance under misaligned loads.
• IP67 Environmental Protection – Sealed against moisture, dust, and contaminants, making it suitable for outdoor and industrial applications.
• Safe Overload & Sideload Protection – Handles 150% full-scale overload and 100% full-scale sideload without performance degradation.
• Wide Capacity Range – NTEP Certified capacities from 10,000 lb to 100,000 lb, and non-NTEP Certified capacities available for 5,000 lb & 150,000 lb.
• Minimal Deflection for Maximum Stability – Deflection at capacity:
  • 5,000 lb: 0.02 in
  • 10,000 lb: 0.025 in
  • 20,000 lb: 0.042 in
  • 30,000-50,000 lb: 0.02 in
  • 60,000 lb: 0.025 in
  • 100,000-150,000 lb: 0.02 in
• Long Cable for Secure Installation – Comes with a 30 ft polyurethane-jacketed cable for easy integration into weighing systems.
• Certified for Industrial & Legal Trade Use – NTEP and cFMus-approved, ensuring compliance with regulated weighing processes.

Available Capacities: 5,000 lb to 150,000 lb
Warranty: One-year limited

9103 Load Cell Specifications

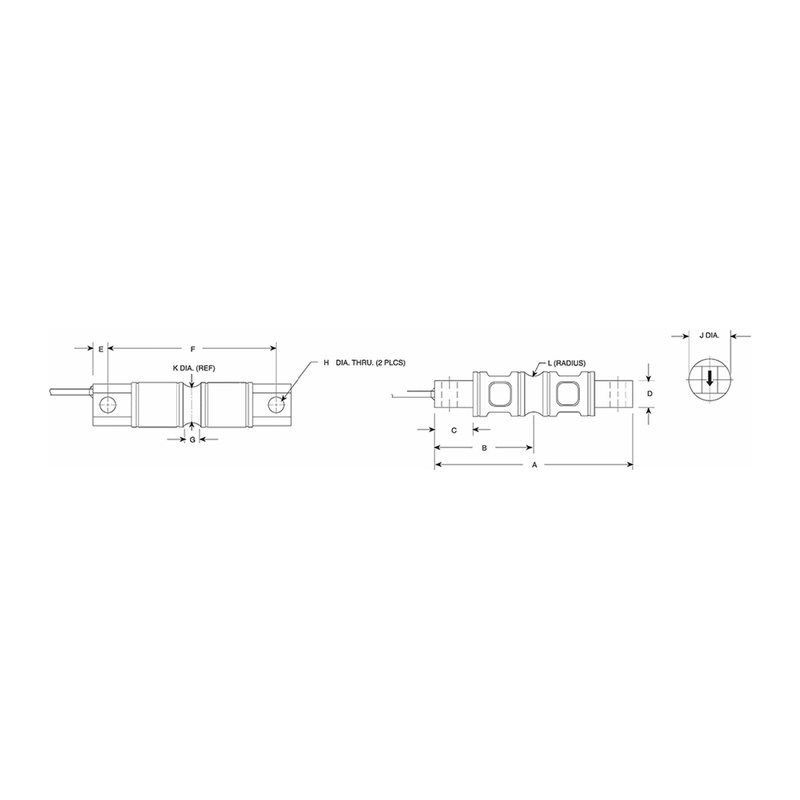

9103 Load Cell Dimensions (inches)

Upgrade your industrial weighing system with the VPG Revere 9103 Load Cell. Order today for extreme precision, durability, and superior performance!
