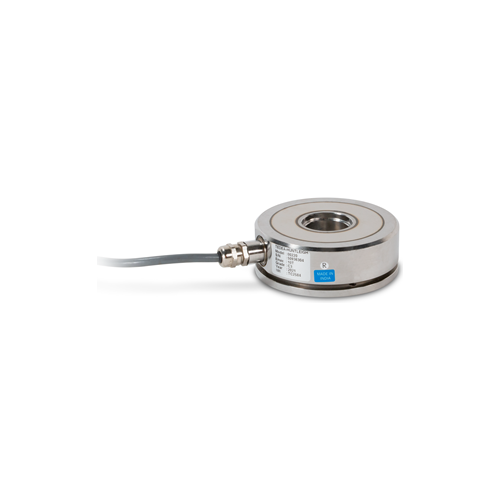

VPG® Tedea-Huntleigh® 220 Stainless Steel, Compression Disk Load Cell

VPG® Tedea-Huntleigh® 220 Stainless Steel, Compression Disk Load Cell

$1,870.00 - $2,215.00
$1,870.00
$1,964.00
$1,964.00 - $2,326.00
$1,964.00

Downloads

Product Catalog

Key Features:

  • High Capacity Weighing: Designed for high-capacity applications including weighbridges, tanks, silos, high-capacity platform scales, and force measurement systems.
  • Robust Construction: Made from stainless steel for enhanced durability and longevity.
  • Low Profile Design: Ideal for applications where space is limited without compromising on performance.
  • Hermetically Sealed (IP68): Ensures protection against moisture and dust for reliable performance in harsh environments.
  • Wide Capacity Range: Available capacities ranging from 5,000 kg to 30,000 kg, OMIL approved.
  • High Accuracy: Combined error of 0.020% full scale for precise weight measurement.
  • High Overload Protection: Safe overload capacity of up to 150% at the center loading point.
  • Temperature Range: Operates effectively between 0 °F to 150 °F (-18 °C to 65 °C) with compensated temperature between 14 °F to 104 °F (-10 °C to 40 °C).
  • Easy Integration: Color-coded cables for easy setup, including +Excitation, -Excitation, +Signal, -Signal, +Sense, and -Sense.

220 Load Cell Specifications:

Parameter Value
Full Scale Output 2.0 mV/V
Output Resistance 1,025 (±20) ohm
Input Resistance 1,065 (±60) ohm
Material/Finish Stainless steel
Temperature, Compensated 14 °F to 104 °F (-10 °C to 40 °C)
Temperature, Operating 0 °F to 150 °F (-18 °C to 65 °C)
Seal Type Hermetically sealed, IP68
Safe Overload 150% at center loading point, full scale
Rated Excitation 5 to 10 VDC (15 V maximum)
Combined Error 0.020% full scale
Insulation Resistance 2,000 megohm
Deflection at Capacity < 0.5 mm at full scale
Cable Length 5,000 kg: 5 m
10,000 to 20,000 kg: 10 m
30,000 kg: 20 m
Cable Diameter 0.220 in, Polyurethane jacket
Cable Color Code Blue: +Excitation
Black: -Excitation
White: +Signal
Red: -Signal
Green: +Sense
Gray: -Sense
Warranty One-year limited
Approvals cFMus, OIML



220 Load Cell Dimensions:

Rated Capacity (kg)
A (mm) B (mm) C (mm) D (mm) E (mm) H (mm)
5,000
80.0 19.0 70.0 20.0 33.4 30.0
10,000
92.0 28.0 80.0 14.6 33.4 33.0
20,000 to 30,000
110.0 29.0 101.5 26.3 39.0 50.0



Take your weighing systems to the next level of accuracy and reliability with the VPG Tedea-Huntleigh 220 Stainless Steel Compression Disk Load Cell. Place your order today and experience the precision performance your operation needs!

Contact our team today to request pricing and confirm availability.

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
