Key Highlights
-
Designed to tolerate eccentric loads and side loads up to 100 percent of capacity.
-
Supplied as a complete kit including mounts, junction box, and 25 ft of hostile environment cable.
-
NTEP Certified load cells ensure high accuracy with up to 0.02% total error.
-
All stainless steel construction for superior corrosion resistance and washdown protection.
-
Features a self-checking design with lift-off and tip-over protection for enhanced safety.

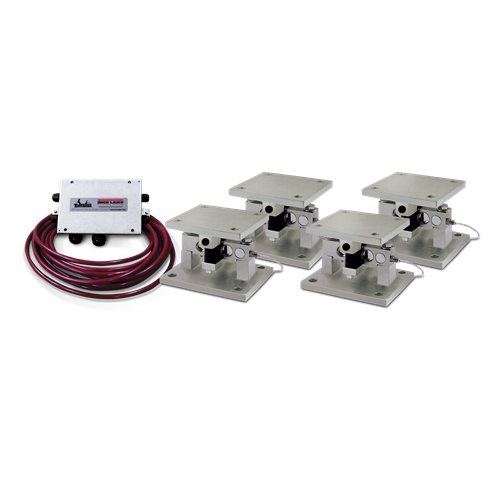

The SURVIVOR RL2100 HE heavy-capacity weigh module kit is an all-in-one solution for converting tanks, blenders, and reactors into precision scales. Incorporating an articulating load plate, hardened load pin, and a double-ended beam load cell into a simple, bolt-in-place design, these modules can be mounted directly to a tank leg without the need for additional load buttons or mounting plates. The kit includes either three or four RL2100 HE stainless steel compression mounts, each equipped with NTEP Certified RL75060S or RL75058S-LP stainless steel load cells, ensuring legal-for-trade accuracy for multi-cell applications up to 10,000 divisions.
Engineered for hostile environments, the kit comes complete with a JB4SS NEMA Type 4X stainless steel junction box and 25 ft of EL147HE SURVIVOR load cell cable. This robust construction, combined with integral conduit adapters, provides exceptional protection during high-pressure washdowns. The modules' ability to handle extreme side and eccentric loads makes them ideal for petroleum refining, chemical processing, and any application requiring dependable weight data under harsh conditions, delivering consistent accuracy and longevity in a heavyweight package.
Specifications
Ensure accuracy in your most critical processes. The Rice Lake SURVIVOR® RL2100 HE heavy-capacity weigh module kit provides the robust performance and precision required for demanding industrial applications. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
