SURVIVOR® RL1855 HE-HS Weigh Module Kits

Key Highlights

• Designed to meet NTEP Class III standards with a 5,000d multiple load cell certification for precise accuracy.

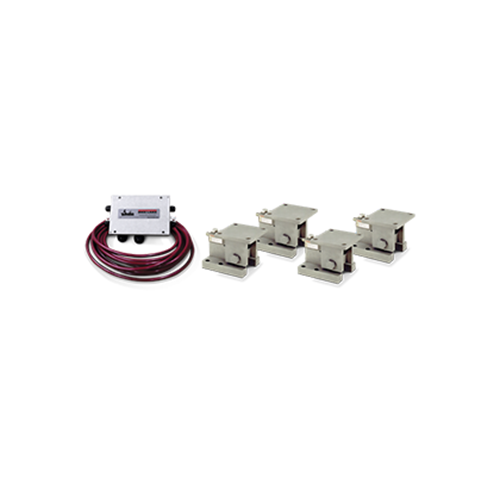

• Supplied as a complete kit including three or four RL1855 HE stainless steel mounts with hermetically sealed load cells.

• Features a self-checking design with integrated lift off and tip off protection for enhanced safety.

• Constructed entirely of stainless steel for superior corrosion resistance in harsh environments.

• Includes a JB4SS NEMA Type 4X stainless steel junction box and 25 ft of hostile environment EL147HE cable.

• Simplifies installation with an internal height adjustment feature that reduces the need for shims.

The Rice Lake SURVIVOR RL1855 HE-HS Weigh Module Kit is engineered to deliver precise accuracy and worry-free operation in the most demanding industrial settings. Each kit contains either three or four RL1855 HE stainless steel mounts, which come equipped with RL32218S-HE NTEP Certified hermetically sealed stainless steel load cells. This configuration ensures that your vessel—whether a medium-capacity hopper, bin, or tank—provides reliable weight data for critical batching and blending processes.

Installation is streamlined thanks to the module's internal height adjustment feature, which minimizes the need for shimming or external hardware. The kit also includes a JB4SS NEMA Type 4X stainless steel signal trim junction box and 25 feet of hostile environment EL147HE cable, protecting the system from moisture and corrosion. The self-checking design incorporates lift off and tip off protection, preventing damage to the load cells during extreme load conditions. This combination of rugged construction and precise measurement makes the RL1855 HE-HS kit a versatile and worry-free choice for maintaining accuracy in harsh industrial environments.

Specifications

Ensure accuracy and safety in your batching operations with the complete SURVIVOR RL1855 HE-HS Weigh Module Kit. Contact our team to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
