RL1600 Series Cast Iron Weigh Module Kit with RL77032 Load Cell

Key Highlights

• Designed to meet the rigorous demands of medium- to heavy-capacity tanks, bins, and hoppers.

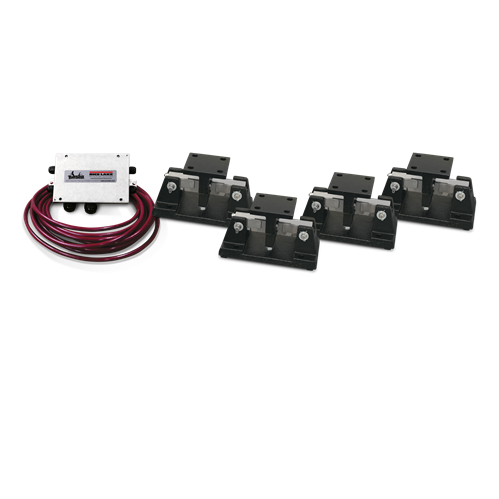

• Supplied as a complete kit including cast iron mounts, RL77032 load cells, a JB4SS junction box, and 25 ft of SURVIVOR® cable.

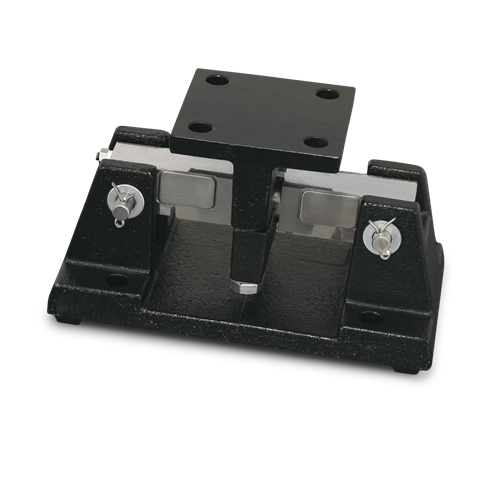

• Features a self-checking, easy-to-use design that bolts directly to the tank leg without requiring additional mounting plates or load buttons.

• Utilizes a double-ended shear beam design with center loading for superior accuracy and stability.

• Engineered for both indoor and outdoor process control operations, accommodating thermal expansion and contraction.

The RL1600 Series Cast Iron Weigh Module Kit is specifically engineered to simplify the installation and enhance the reliability of industrial vessel weighing. By combining the robust RL1600 cast iron compression mounts with the environmentally protected RL77032 double-ended shear beam load cells, this kit provides a stable and accurate foundation for bulk material management. The self-checking design of each module compensates for thermal expansion and contraction, ensuring consistent performance in varying environmental conditions.

This comprehensive kit eliminates the guesswork of sourcing individual components. It arrives complete with a JB4SS NEMA Type 4X stainless steel signal trim junction box for easy system integration and 25 feet of hostile environment EL147HE SURVIVOR® load cell cable to withstand harsh industrial settings. Whether for indoor process control or outdoor storage vessels, the RL1600 Series kit offers a durable, all-in-one solution for capacities ranging from 1,000 to 25,000 lb per module, and is also compatible with VPG® Sensortronics® 65016 load cells for added flexibility.

Specifications

Upgrade your industrial process control with the complete RL1600 Series Kit. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
