Rice Lake RL75058I for Coil Scale Load Cell
Rice Lake RL75058I for Coil Scale Load Cell

Rice Lake RL75058I for Coil Scale Load Cell

$808.00 - $1,062.00
$808.00
$808.00 - $1,062.00
$808.00
Backed by SellEton's 5 Year Limited Warranty — see terms

Downloads

Product CatalogVideo / Webinar

Key Features:

  • Designed for Rice Lake Weighing Systems Coil Scale – Provides high accuracy and reliability for coil weighing applications.
  • Nickel-Plated High-Alloy Steel Construction – Ensures durability, corrosion resistance, and long-lasting performance.
  • Environmentally Sealed to IP67 Standards – Offers protection against dust, moisture, and harsh industrial conditions.
  • Wide Capacity Range for Heavy-Duty Applications –
    • Available in 20,000 lb to 75,000 lb capacities, ideal for coil scales and industrial weighing.
  • Exceptional Accuracy & Stability –
    • Full Scale Output: 3.0 mV/V
    • Combined Error: 0.02% full scale
    • Insulation Resistance: 5,000 megohm
  • Overload and Sideload Protection –
    • Safe Overload: 150% full scale
    • Safe Sideload: 100% full scale
  • 35-foot Polyurethane-Jacketed Cable for Secure Installation – Offers flexibility and protection in industrial environments.
  • Rated Excitation of 5-10V DC (15V Max) – Provides stable and precise signal transmission.
  • Certified for Industrial Use – NTEP (98-143) and cFMus approved, ensuring legal trade compliance.
  • 5-Year SellEton Warranty – Ensuring quality and reliable performance.

RL75058I Load Cell Specifications

Specification Details
Full Scale Output
3.0 mV/V
Output Resistance
699 to 707 ohm
Input Resistance
686 to 714 ohm
Material/Finish
High-alloy steel, nickel plated
Compensated Temperature
14 °F to 104 °F (-10 °C to 40 °C)
Operating Temperature
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP67
Safe Overload
150% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.02% full scale
Insulation Resistance
5,000 megohm
Cable Length
35 ft
Cable Diameter
20,000 lb: 0.200 in
40,000 to 75,000 lb: 0.305 in
Polyurethane jacket
Cable Color Code
Red (+Excitation), Black (–Excitation), Green (+Signal), White (–Signal)
Warranty
5-Year SellEton Warranty
Approvals
cFMus, NTEP 98-143

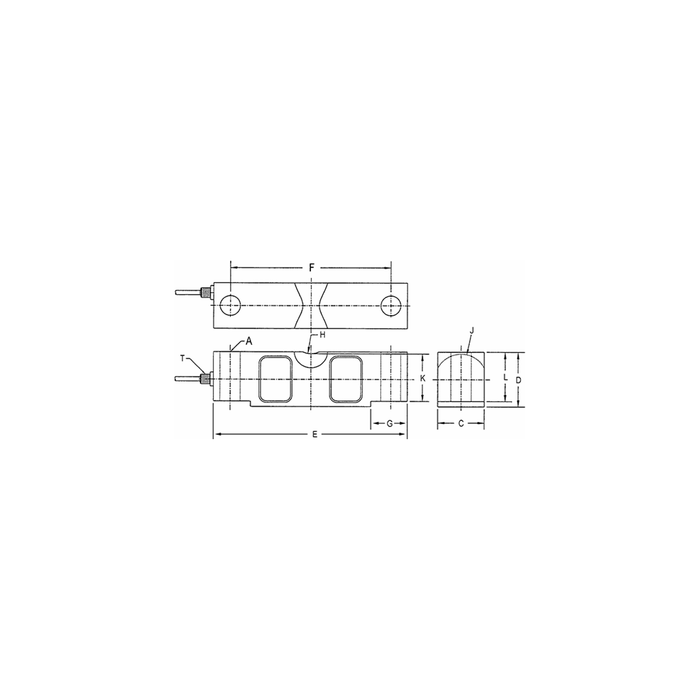

RL75058I Load Cell Dimensions

Rated Capacity (lb) A (in) C (in) D (in) E (in) F (in) G (in) H (in) J (in) K (in) L (in) T (in)
20,000 to 25,000 0.68 1.69 1.94 7.75
6.50 1.38 0.75 0.90 1.63 1.70 1/4-18 NPT
40,000 0.81 1.94 2.44 10.25
8.50 1.93 1.00 1.12 2.00 2.10 1/4-18 NPT
50,000 to 75,000 1.06 2.44 2.94 10.25
8.50 1.93 1.00 1.37 2.54 2.65 1/2-14 NPT


Upgrade your coil scale system with the Rice Lake RL75058I for Coil Scale Load Cell, designed for precision, durability, and seamless integration into industrial weighing applications. Contact our team today to request pricing and confirm availability.
