Flintec® PC1 Stainless Steel, Single Point Load Cell

Flintec® PC1 Stainless Steel, Single Point Load Cell

$376.99 - $565.99
$376.99
$376.99 - $565.99
$376.99

Key Features:

  • Durable Stainless Steel Construction: Built to withstand harsh industrial environments with superior corrosion resistance.
  • Environmentally Sealed (IP67 Rated): Protects against dust, moisture, and challenging conditions.
  • High Overload Protection: Handles 200% full-scale overload and 100% full-scale sideload for long-term durability.
  • Wide Capacity Range: Available in 10 kg to 200 kg models, making it ideal for various applications.
  • High-Precision Output: Full-scale output of 2.0 mV/V with an ultra-low combined error of just 0.02% full scale.
  • Max Platform Size: Supports platform sizes up to 18 × 18 inches for versatile weighing setups.
  • Extended Cable Length: A 10 ft polyurethane-jacketed cable is supplied for easy installation.
  • Industry Certified: FM, NTEP, and OIML-approved, ensuring compliance with trade and industrial regulations.

PC1 Load Cell Specifications

Specification   Details
Full Scale Output
2.0 mV/V
Output Resistance
330 (± 25) ohm
Input Resistance
390 (± 20) ohm
Material/Finish
Stainless steel
Temperature Compensation Range
14 °F to 104 °F (-10 °C to 40 °C)
Operating Temperature Range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP67
Safe Overload
200% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 15 VDC
Combined Error
0.02% full scale
Insulation Resistance
5,000 megohm
Cable Length
10 ft
Cable Diameter
0.196 in (Polyurethane jacket)
Cable Color Code
Green (+Excitation), Black (-Excitation), White (+Signal), Red (-Signal), Yellow (Shield)
Max Platform Size
18 × 18 in
Warranty
One-year limited
Approvals
FM, NTEP, OIML

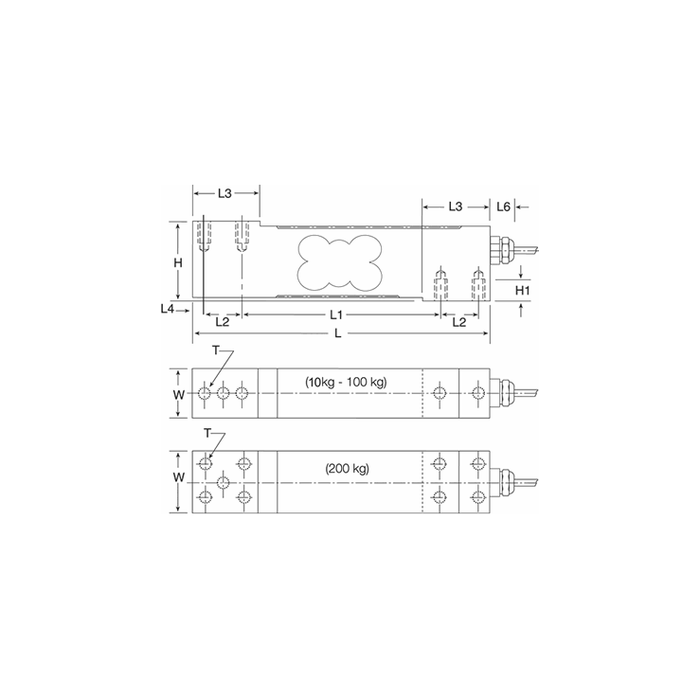

PC1 Load Cell Dimensions

Rated Capacity (kg/mm) H H1   L L1 L2 L3 L4 L6 W T
10 to 100 40.0 10.0
150.0 100.0 19.0 32.0 6.0 20.0 25.4 1/4-20 UNC × 19.1 DP
200 40.0 10.0
150.0 100.0 19.0 32.0 6.0 20.0 38.1 1/4-20 UNC × 19.1 DP

Enhance Your Weighing System with the Flintec® PC1 Load Cell

The Flintec® PC1 Stainless Steel Single Point Load Cell is an ideal choice for industrial applications that require durability, accuracy, and reliability. With its IP67-rated sealing, high overload protection, and precision output, this load cell ensures consistent performance in demanding environments.
