Designed to meet NTEP certification standards for legal-for-trade weighing
Supplied as a complete system with two 5,000-lb stainless steel load cells
Built with 1.5-in thick steel front and rear plates for maximum durability
Features debris guards to protect sensitive components in harsh environments
Includes overload and underload stops to prevent damage from extreme forces
Field serviceable flexures and load cells reduce maintenance downtime
Offers wired or cable-less connectivity for flexible data transmission

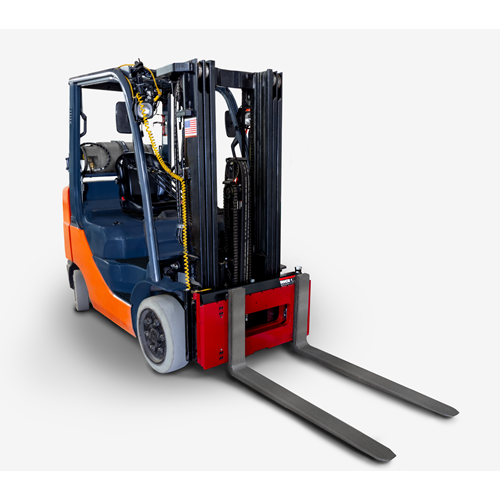

The CLS NextGen forklift scale from Rice Lake is engineered for material handling operations requiring fast, accurate weighing without interrupting workflow. Available in two configurations—5,000 × 5 lb capacity with up to 42-inch forks or 4,500 × 5 lb capacity with up to 72-inch forks—the system adapts to a range of lift truck sizes and load types. The high-strength stainless steel design includes a four-flexure system, stainless steel load cell rod bolts, and a replaceable centering pin and notch, ensuring long service life even in wet, dusty, or corrosive environments.

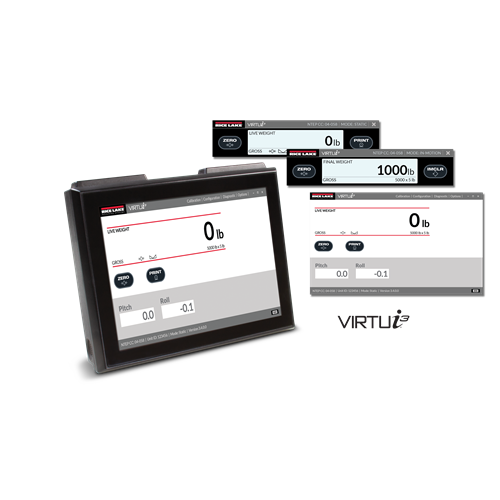

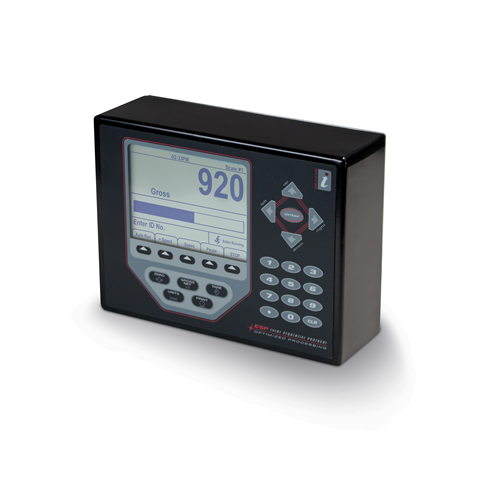

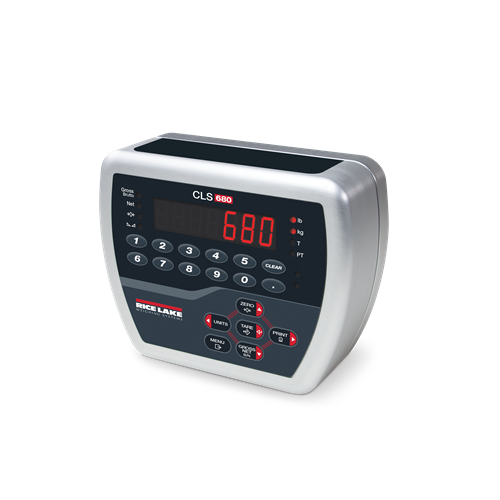

Operators benefit from a large viewing window and multiple weight indication choices, including the CLS-680, CLS-920i, or compatibility with Windows Mobile PCs, tablets, and handhelds running VIRTUi³. The iQUBE series digital junction box, housed in a stainless steel enclosure, provides reliable signal processing. Presale requirements include a completed forklift questionnaire, and the system is compatible with most Class II forklift attachments. OSHA requires end users to de-rate lift capacity when installing any forklift scale. Optional features include weigh-in-motion capability, narrow width backplate, front plate width variations, CLS-680 18 to 72 VDC power, and a mobile printer.
Specifications
| Specification | Details |
|---|---|
| Capacity / Resolution | 5,000 × 5 lb (up to 42-in forks); 4,500 × 5 lb (up to 72-in forks) |
| Load Cells | Two 5,000-lb stainless steel |
| Junction Box | iQUBE series, stainless steel enclosure |
| Construction | 1.5-in thick steel front and rear plates; top cleats pinned, bolted, welded |
| Flexure System | Four flexure system, high strength stainless steel |
| Protection | Debris guards (top and sides); overload and underload stops |
| Serviceability | Field serviceable flexures and load cells |
| Connectivity | Wired or cable-less |
| Indicators | CLS-680, CLS-920i, or VIRTUi³ compatible devices |
| Compliance | NTEP Certified; OSHA requires de-rating lift capacity |
Ready to improve your material handling accuracy with the Rice Lake CLS NextGen forklift scale? Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
