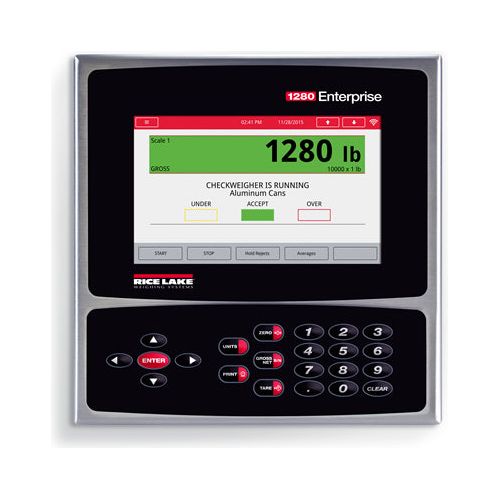

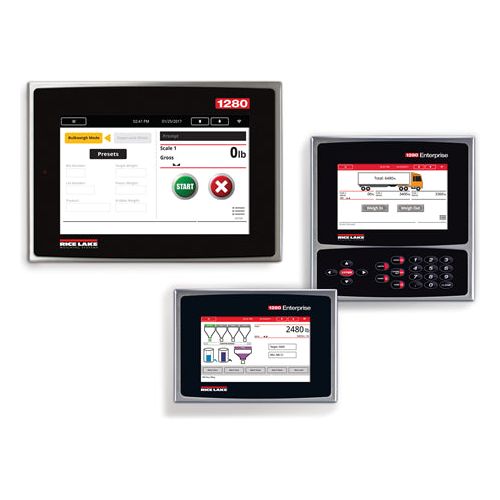

1280 Enterprise™ Series Programmable Weight Indicator and Controller

1280 Enterprise™ Series Programmable Weight Indicator and Controller

$4,285.00 - $5,235.00
$4,430.00
$4,285.00 - $5,235.00
$4,430.00

Key Features:

  • Customizable Touchscreen Interface: High-resolution color touchscreen with an intuitive graphical user interface.
  • User-Defined Controls: Configure softkeys, icons, and graphics to enhance operational efficiency.
  • Flexible Input Options: Includes a tactile keypad for numeric entry and navigation, plus an on-screen keyboard for text input.
  • Built-in Web Server: Enables remote access, system integration, and real-time data monitoring.
  • Supports Multiple Scales: Manage up to eight scales with support for:
    • Analog load cells with multi-range/interval weighing
    • Total scale summing
    • Serial input scales
    • iQUBE²™ scales
    • Program scales
  • Expandable Smart Card Slots: Six slots for scale channels, serial ports, digital I/O, and analog outputs.
  • Pre-Loaded Applications: Includes Truck In/Out, Recipe Storage, Filling/Dosing, Counting, and Checkweighing.
  • iRite™ Programming Software: Advanced software for custom automation with 150 built-in functions.
  • Real-Time Data Display: View analytics using line charts and bar graphs for efficient monitoring.
  • Advanced Connectivity: USB, Ethernet TCP/IP, Wi-Fi Direct®, RS-232, RS-485, and digital I/O.
  • Industrial-Grade Durability:
    • Universal Enclosure: IP69K-rated for extreme conditions.
    • Panel Mount: IP69K, NEMA Type 4X/12 for panel integration.
    • Wall Mount: IP66-rated for secure mounting.
  • Regulatory Certified: NTEP, Measurement Canada, OIML, CE Marked, cULus Listed & Recognized.

Technical Specifications

Category
Specification
   Details
Power & Performance
Power Input

100-240 VAC, 50/60 Hz or 11-30 VDC

Power Consumption

60W

Excitation Voltage

10 VDC (±5 VDC)

Load Cell Support

16 × 350Ω or 32 × 700Ω per A/D card

Analog Signal Input Range

-60 mV to 60 mV

Analog Sensitivity

0.3 μV/graduation (min), 1.0 μV/graduation (recommended)

A/D Sample Rate

7.5 to 960 Hz (software selectable)

Resolution

Internal: 8,000,000 counts / Display: 1,000,000

System Linearity

± 0.01% full scale
Input/Output & Communication
Digital I/O

8 channels (expandable to 24)

Communication Ports

RS-232, RS-485, USB 2.0, Ethernet (10/100 Auto-MDX), Wi-Fi Direct®

Selectable Filters

Three-stage, Adaptive, Damping

Onboard Storage

8GB eMMC (system use), 1GB DDR3 RAM, 460MB onboard database (SQLite)

External Storage

Supports up to 32GB microSD card (sold separately)
Display & Controls
Display Options

7-inch (800 × 480 px, 500 or 1,000 NIT), 12-inch (1280 × 800 px, 1,500 NIT)

Keypad & Buttons

22-key membrane panel, tactile keys, on-screen keyboard, USB support
Environmental & Enclosure Ratings
Operating Temperature

-4°F to 131°F (-20°C to 55°C)

Certified Temperature

14°F to 104°F (-10°C to 40°C)

Universal Enclosure

IP69K (Extreme conditions)

Wall Mount Enclosure

IP66

Panel Mount Enclosure

IP69K, NEMA Type 4X/12

Material

Stainless Steel (304)
Dimensions & Weight
Universal Enclosure

11 lb (4.9 kg)

Panel Mount Enclosure

8 lb (3.6 kg)

Wall Mount Enclosure

23 lb (10.4 kg)

7-inch Touch-Only Panel Mount

7 lb (3.1 kg)

12-inch Touch-Only Panel Mount

10 lb (4.5 kg)
Certifications & Compliance
NTEP

15-001/Class III/IIIL 10,000d

Measurement Canada

AM-5980C, Class III/III HD 10,000d

OIML

R76/2006-A-NL1-19.23 Class III/IIII 10,000d, R61-1/2017 TC8596

EMC Immunity

10 V/m

Safety Approvals

cULus Listed (Universal & Wall Mount), cULus Recognized (Panel Mount), CE Marked



1280 Series Dimensions

Model
Dimension A
Dimension B
Dimension C
  Dimension D
Dimension E
Dimension F
Dimension G

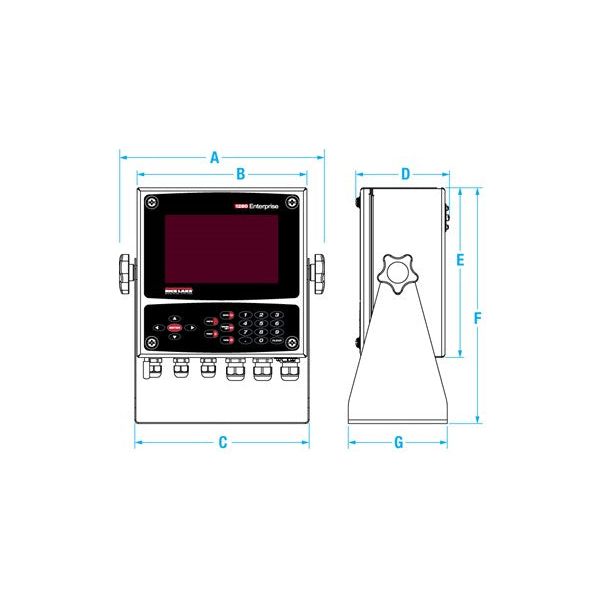

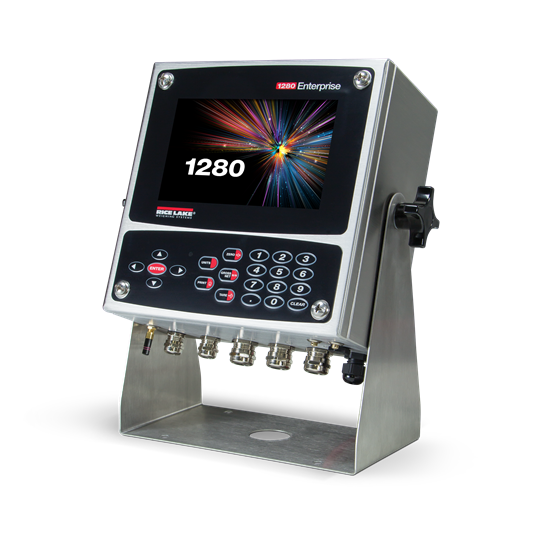

Universal (1280-2)
10.86 in (276 mm)
9.00 in (229 mm)
9.24 in (235 mm)

4.97 in (126 mm)
9.00 in (229 mm)
12.50 in (318 mm)
5.25 in (133 mm)

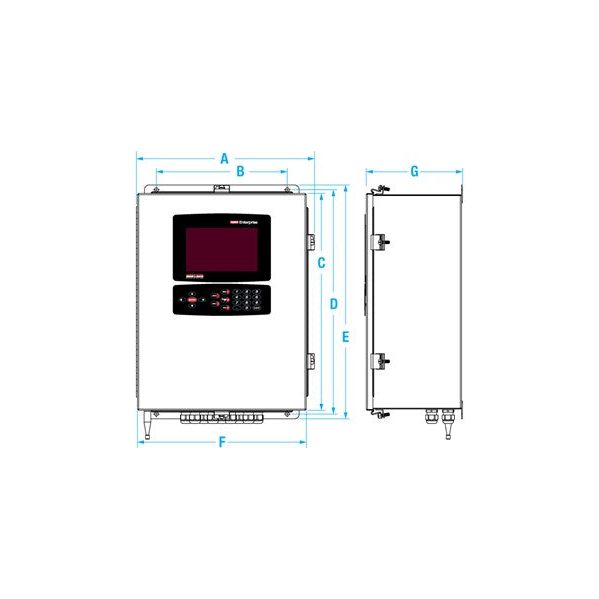

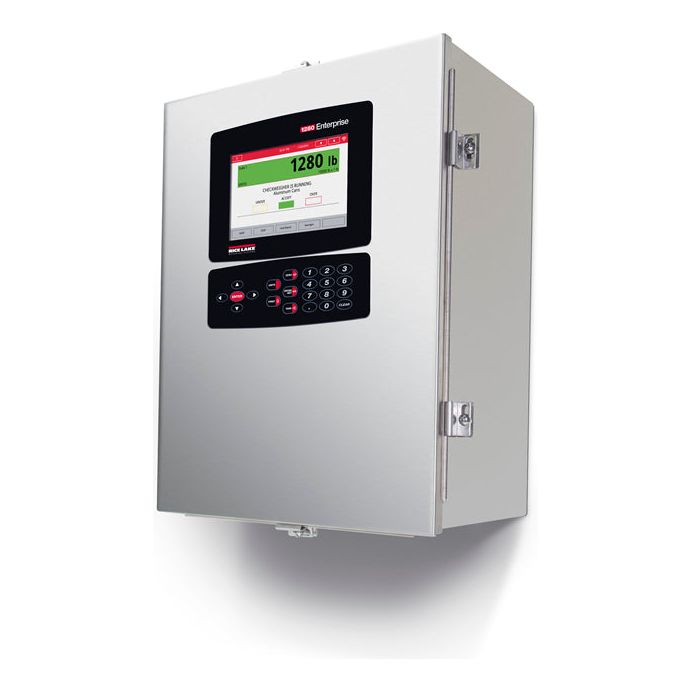

Wall Mount (1280-3)
14.92 in (379 mm)
11.00 in (279 mm)
18.22 in (463 mm)

18.84 in (479 mm)
19.64 in (499 mm)
14.20 in (361 mm)
8.08 in (205 mm)

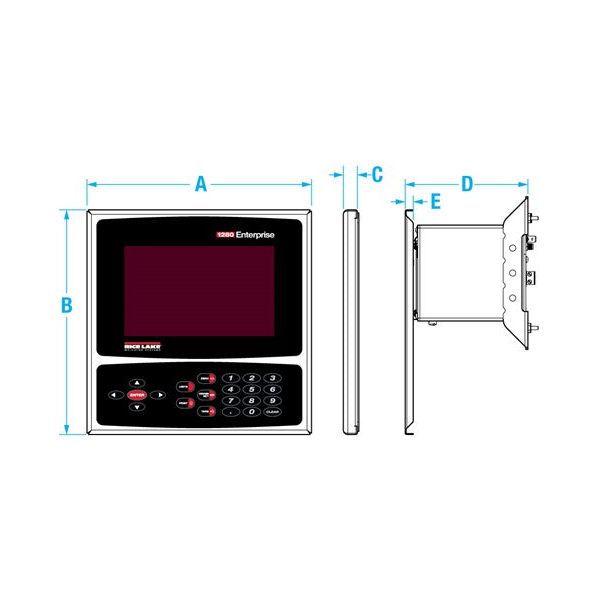

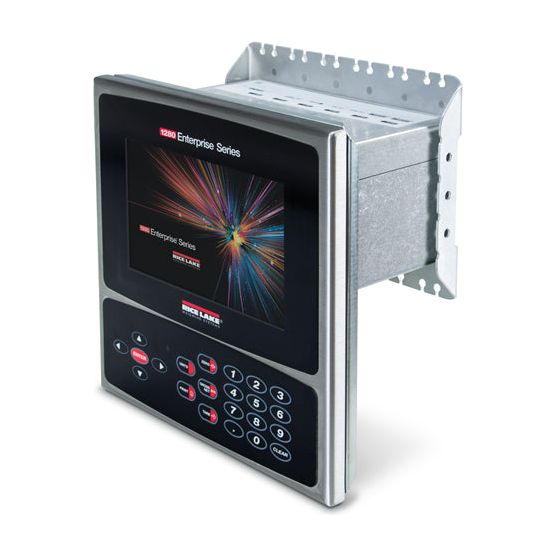

Panel Mount (1280-4)
9.00 in (229 mm)
9.00 in (229 mm)
0.58 in (15 mm)

5.34 in (136 mm)
0.32 in (8 mm)
-
-

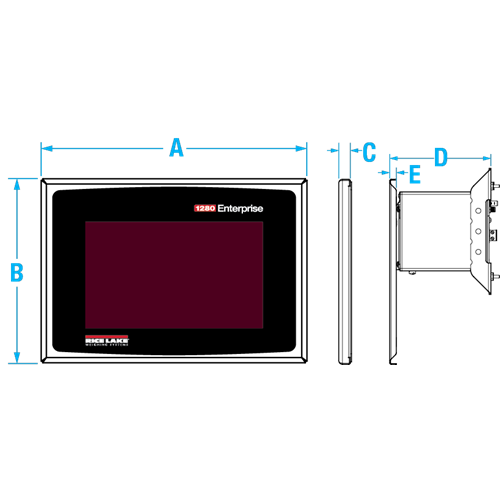

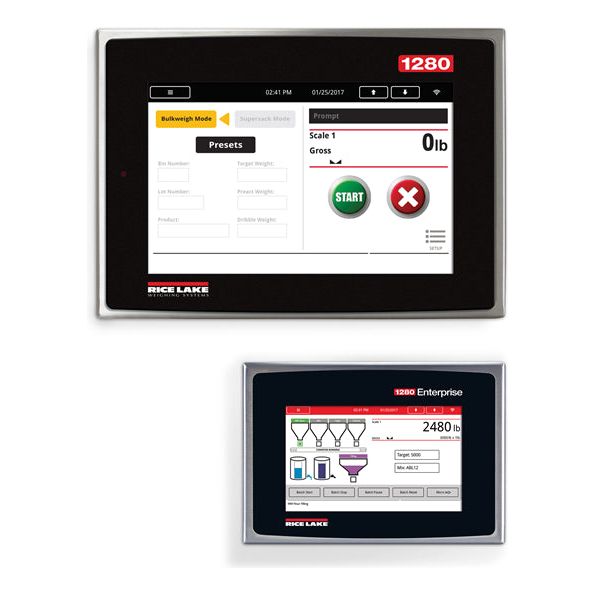

7-inch Touch-only (1280-5)
9.00 in (229 mm)
6.22 in (158 mm)
0.58 in (15 mm)

5.34 in (136 mm)
0.32 in (8 mm)
-
-

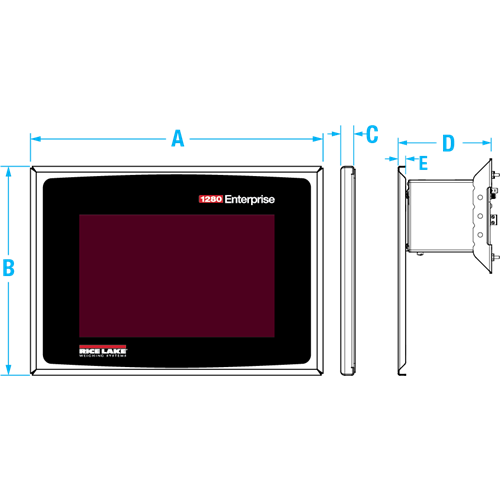

12-inch Touch-only (1280-6)
14.00 in (356 mm)
10.00 in (254 mm)
0.58 in (15 mm)

5.34 in (136 mm)
0.32 in (8 mm)
-
-

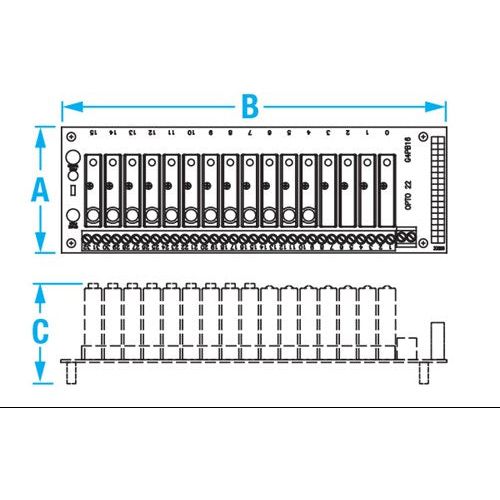

OPTO 22 Dimensions

Channel Type
  Dimension A
Dimension B
Dimension C

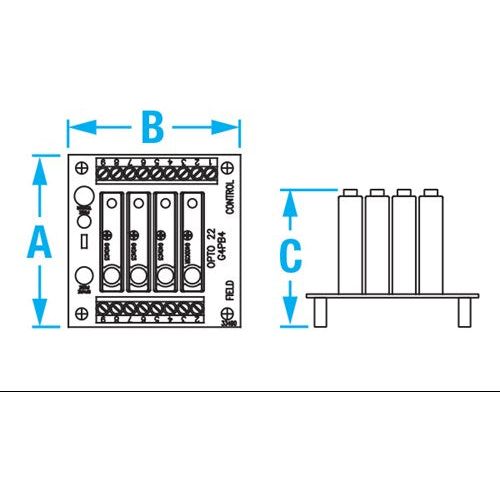

4-Channel

3.25 in (83 mm)
3.25 in (83 mm)
2.32 in (59 mm)
4-Channel (Non-UL)

1.20 in (30 mm)
6.11 in (155 mm)
2.32 in (59 mm)
16-Channel

3.25 in (83 mm)
10.00 in (254 mm)
2.32 in (59 mm)

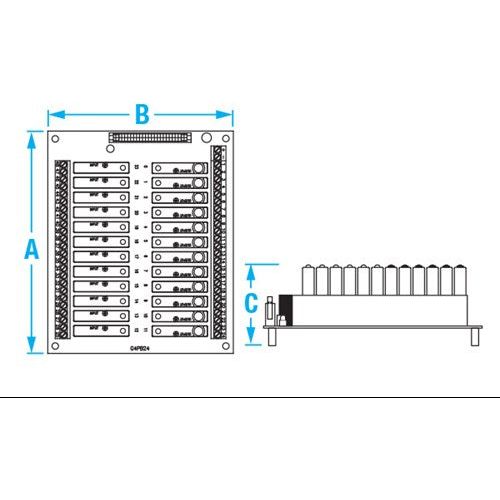

24-Channel

7.50 in (190 mm)
6.25 in (159 mm)
2.32 in (59 mm)
