VPG® Tedea-Huntleigh® 1030 Aluminum, Single Point Load Cell

VPG® Tedea-Huntleigh® 1030 Aluminum, Single Point Load Cell

$340.00 - $340.00
$340.00
$340.00 - $340.00
$340.00

Key Features:

  • Ultra-Low Profile, Three-Beam Design – Delivers high precision and stability, ensuring accurate measurements even with off-centre loads.
  • Anodized Aluminum Construction – Provides corrosion resistance and durability for long-term performance.
  • IP65 Environmental Protection – Sealed against dust and moisture, making it ideal for challenging environments.
  • Small Capacity for High-Precision Applications – Available in 5 kg to 10 kg, perfect for low-capacity weighing needs.
  • Exceptional Accuracy & Consistency –
    • 0.02% combined error for reliable weight measurements
    • Minimal deflection (0.015 in) for stable readings
  • Safe Overload Protection – Handles 150% full-scale overload, preventing damage from excessive weight.
  • Humidity-Resistant Protective Coating – Ensures long-term stability in extreme conditions.
  • Compact & Lightweight Design – Ideal for precision weighing in confined spaces.
  • Certified for Industrial & Commercial Use – cFMus and OIML certified, ensuring compliance with industry standards.
  • One-Year Limited Warranty – Providing reliable support and performance assurance.

VPG Tedea-Huntleigh 1030 Load Cell Specifications

Specification   Details
Full Scale Output
2.0 mV/V
Output Resistance
350 (±3) ohm
Input Resistance
415 (±15) ohm
Material/Finish
Anodized aluminum
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP65
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.02% full scale
Insulation Resistance
5,000 megohm
Deflection at Capacity
0.015 in
Cable Length
1 m
Cable Diameter
0.200 in PVC jacket
Cable Color Code
Green: +Excitation, Black: –Excitation, Red: +Signal, White: –Signal, Blue: +Sense, Brown: –Sense
Max Platform Size
13.78 × 13.78 in
Warranty
One-year limited
Approvals
cFMus, OIML

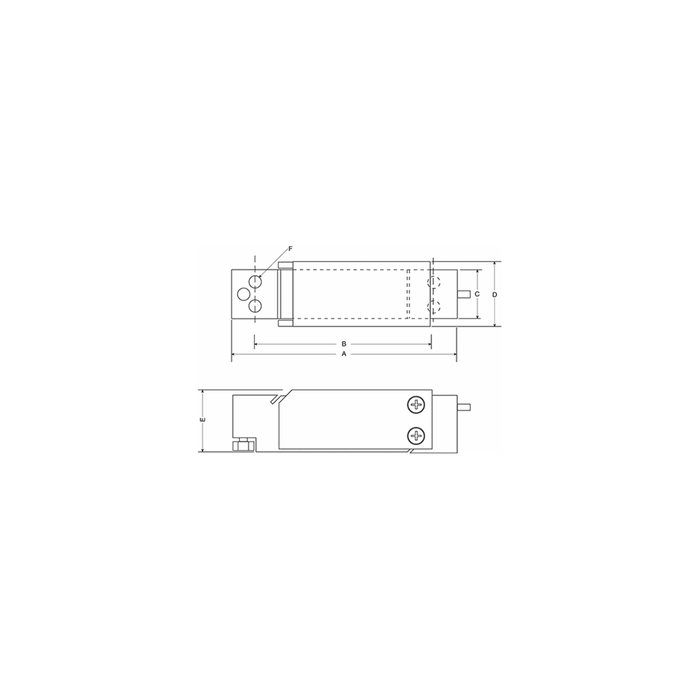

1030 Load Cell Dimensions

Rated Capacity (kg/mm) A B   C D E F
5 to 10 117.9 93.7
25.4 33.3 32.5 1/4-20 UNC × 10 DP

Enhance Your Precision Weighing with the 1030 Load Cell!

The VPG Tedea-Huntleigh 1030 Aluminum Single-Point Load Cell is engineered for compact, high-accuracy weighing applications. Its ultra-low profile and humidity-resistant coating ensure long-term stability in challenging conditions. Whether for industrial or commercial use, this load cell delivers outstanding performance. Find the perfect weighing solution today at SellEton Scales!
