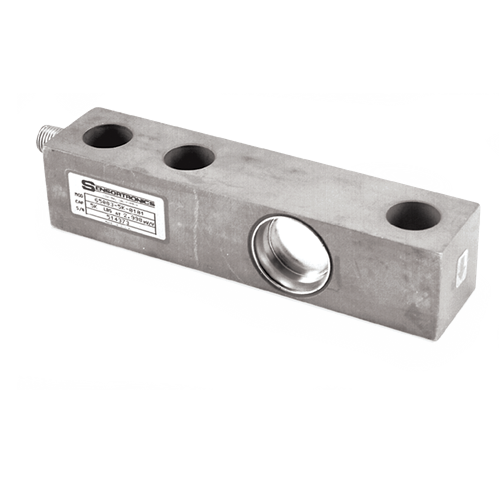

VPG® Sensortronics® 65083 Stainless Steel, Single-Ended Beam Load Cell

VPG® Sensortronics® 65083 Stainless Steel, Single-Ended Beam Load Cell

$505.00 - $525.00
$505.00
$505.00 - $525.00
$505.00

Key Features:

  • Built for Extreme Environments –
    • Ideal for food processing, chemical applications, and industrial environments.
    • Welded-seal, IP67-rated for protection against moisture, dust, and contaminants.
  • Versatile Installation Options –
    • Designed for single- or multiple-cell installations.
    • Threaded load hole allows easy mounting of leveling feet or custom hardware.
  • Premium Stainless Steel Construction –
    • Delivers long-lasting performance in corrosive and high-moisture settings.
  • Precise and Reliable Measurements –
    • Combined Error: 0.03% full scale
    • Non-repeatability: 0.01% full scale
  • Low Deflection for High Stability –
    • 1,000 to 4,000 lb models: 0.008 to 0.026 in deflection.
    • 5,000 to 10,000 lb models: 0.030 to 0.055 in deflection.
  • 20 ft PTFE-Jacketed Cable for Easy Installation
  • Certified for Quality Assurance – cFMus Approved.



VPG Sensortronics 65083 Load Cell Specifications

Specification   Details
Full Scale Output
3.0 mV/V
Output Resistance
349 to 355 ohm
Input Resistance
343 to 357 ohm
Material/Finish
Stainless steel
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
IP67 welded-seal
Safe Overload
150% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.03% full scale
Non-repeatability
0.01% full scale
Insulation Resistance
5,000 megohm
Deflection at Capacity
1,000 to 4,000 lb: 0.008 to 0.026 in
5,000 to 10,000 lb: 0.030 to 0.055 in
Cable Length
20 ft
Cable Diameter
0.220 in PTFE jacket
Conduit Adapter Size
1/4-18 NPT
Cable Color Code
Red: +Excitation, Black: –Excitation, Green: +Signal, White: –Signal
Warranty
One-year limited
Approvals
cFMus

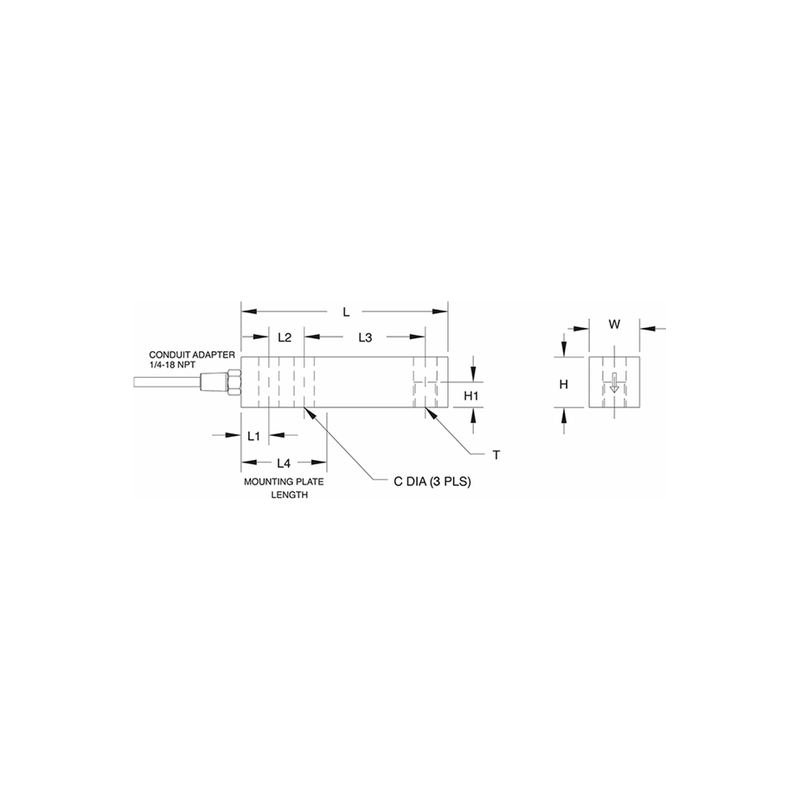

65083 Load Cell Dimensions

Rated Capacity (lb/in) C H H1   L L1 L2 L3 L4 T W
1,000 to 4,000 0.53 1.22 0.61
5.12 0.62 1.00 3.00 2.25 1/2-20 UNF 1.22
5,000 to 10,000 0.78 1.50 0.75
6.75 0.75 1.50 3.75 3.00 3/4-16 UNF 1.50

Upgrade Your Weighing System with the 65083 Load Cell!

The VPG Sensortronics 65083 Stainless Steel Load Cell is engineered for demanding industrial and process weighing applications. With its welded-seal stainless steel construction, high precision, and industry certification, this load cell provides unmatched durability and performance. Order now from SellEton Scales to enhance your weighing system today!

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
