Key Features:

  • Direct Replacement for Cardinal® SCA Products – Ensures seamless integration into existing weighing systems.
  • Stainless Steel Construction for Durability – Provides long-lasting performance in industrial applications.
  • Welded-Seal IP67 Protection – Designed to withstand moisture, dust, and harsh environmental conditions.

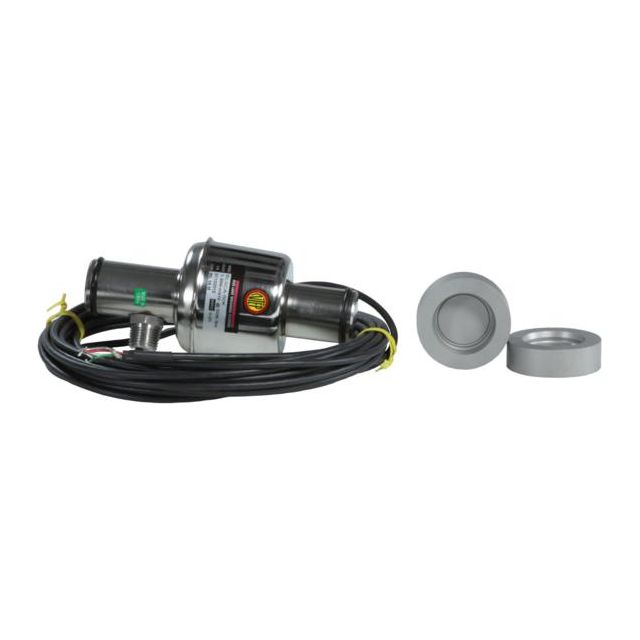

  • Includes Two Retrofit Cups – Allows for easy field installation and compatibility with various applications.
  • NTEP Certified for Legal Trade – Ensures accurate and reliable weight measurements for commercial use.
  • 50,000 lb Capacity for Heavy-Duty Applications – Ideal for truck scales, weighbridges, and industrial weighing systems.
  • High Accuracy & Stability – Features 2.0 mV/V nominal full-scale output, combined error of 0.025%, and non-repeatability of 0.01%.
  • Superior Overload Protection – Can handle 150% full-scale overload, ensuring long-term durability.
  • 30-Foot Polyurethane-Jacketed Cable for Secure Installation – Designed for industrial durability and flexibility.
  • Rated Excitation of 5-10V DC (15V Max) – Ensures stable and consistent signal transmission.
  • Certified for Industrial Use – NTEP (01-073) and cFMus approved, making it ideal for legal trade and precision weighing.
  • Two-Year Limited Warranty – Ensuring high-quality performance and reliability.

RLSCA-50K Load Cell Specifications

Specification   Details
Full Scale Output
2.0 mV/V nominal
Output Resistance
1,050 (±10) ohm
Input Resistance
1,100 to 1,500 ohm
Material/Finish
Stainless steel
Compensated Temperature
14 °F to 104 °F (-10 °C to 40 °C)
Operating Temperature
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Welded-seal, IP67
Safe Overload
150% full scale
Rated Excitation
5 to 10 VDC (15 V maximum)
Combined Error
0.025% full scale
Non-repeatability
0.01% full scale
Insulation Resistance
1,000 megohm
Cable Length
30 ft
Cable Diameter
0.200 in (Polyurethane Jacket)
Cable Color Code
Green (+Excitation), Black (–Excitation), Red (+Signal), White (–Signal)
Warranty
Two-year limited
Approvals
NTEP 01-073, cFMus

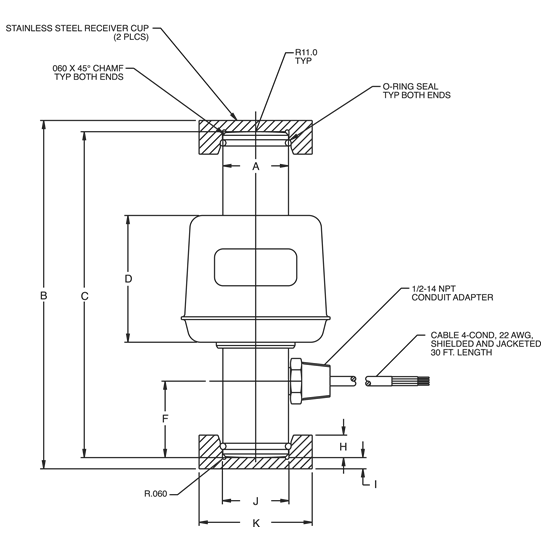

RLSCA-50K Load Cell Dimensions

Rated Capacity (lb) A (in) B (in) C (in)   D (in) F (in) H (in) I (in) J (in) K (in)
50,000 1.46 7.75 7.25
2.82 1.70 0.50 0.25 1.48 2.50

Order Yours Today!

Upgrade your truck scale or industrial weighing system with the Rice Lake RLSCA-50K Stainless Steel Rocker Column Load Cell, built for precision, durability, and seamless compatibility. Contact us today to place your order or discuss your specific weighing requirements.
