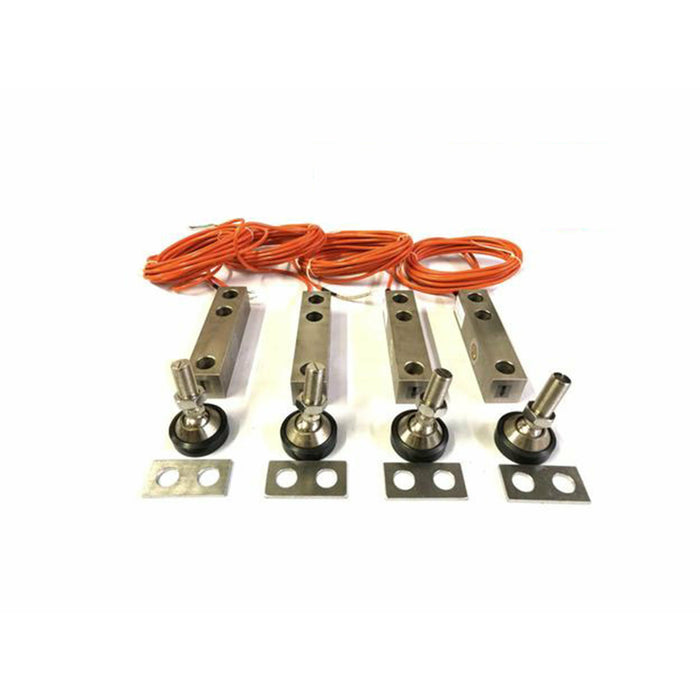

SellEton GX-1-5k lb (Large Envelope) NTEP Shear Beam Load Cell Sensors for Platform Floor Scale with Feet & Spacers

Original price $598.99 - Original price $748.99
Original price
$598.99
$598.99 - $748.99
Current price $598.99

SellEton is offering its Legal For Trade load cells (NTEP Approved). If you are using an NTEP floor scale, this is the type of load cell you must use in order for the scale to be NTEP approved.

It is important to have all 4 load cells matching, or the scale won't calibrate!

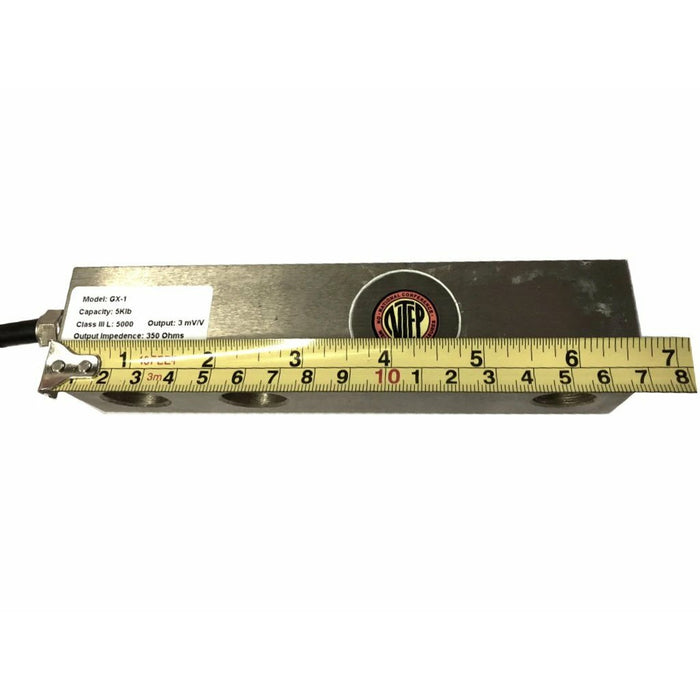

The 4 NTEP load cells are great for floor scales, hoppers, and other legal for trade scales.  Each load cell's max weight is 5000 lbs. Load cells are Large Envelopes that could be used for Heavy Duty applications up to 20,000 lbs.
4 load cells are ideal calibration settings below:
  • 1000 lbs x .2 lb
  • 2500 lbs x .5 lb
  • 5000 lbs x 1 lb
  • 10,000 lbs x 2 lb
  • 20,000 lbs x 5 lb

Features:

  • Shear beam load cells, one end fixed.
  • Alloy steel or Stainless Steel Option
  • Self-centering
  • Easy to install & use
  • Shear Beam Single Ended Load Cell



Specifications:

  • Rated Output (mV/V): 3.00±0.015
  • Nonlinearity: ±0.02%FS
  • Hysteresis: ±0.02%FS
  • Repeatability: ±0.01%FS
  • Creep (30 minutes): ±0.02%FS
  • Zero Balance: ±1.00%FS
  • Temperature Effect on Zero: ±0.02%FS/10°C
  • Temperature Effect on Output: ±0.02%FS/10°C
  • Input Resistance: 385±5Ω
  • Output Resistance: 350±3Ω
  • Insulation Resistance: ≥5000MΩ
  • Excitation Voltage: 10V(DC/AC)
  • Compensated Temperature Range: -10°C ~ 50°C
  • Operating Temperature Range: -20°C ~ 60°C
  • Safe Overload: 120%FS
  • Cable: 5.4x6 m
